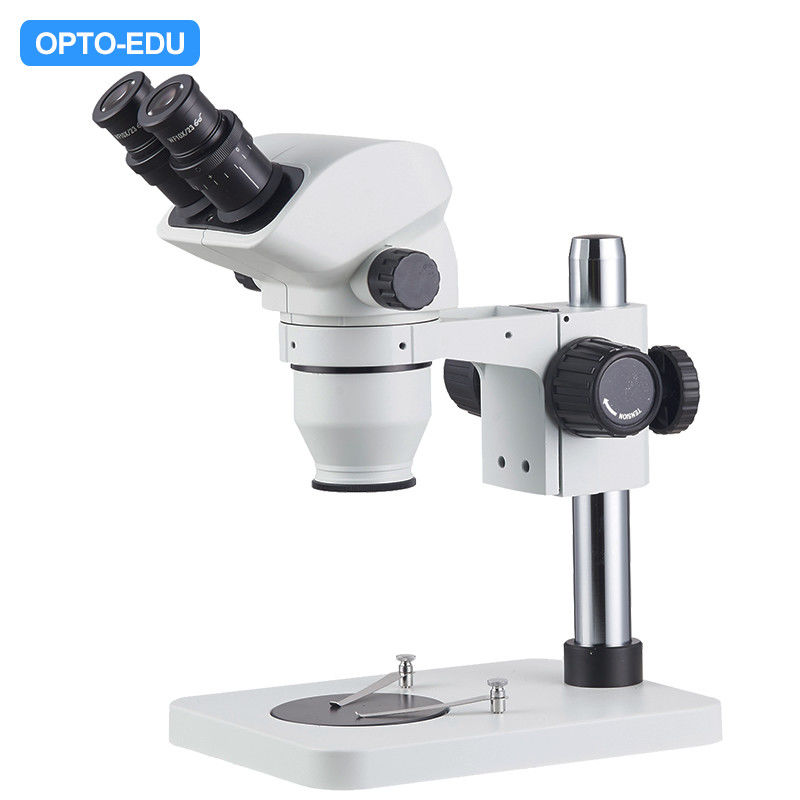

Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance

China Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance supplier
Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance supplier Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance supplier

Large Image :  Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance

Product Details:

Place of Origin: China
Brand Name: OPTO-EDU
Certification: CE, Rohs
Model Number: A22.3670-B1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/23mm Head: 45°Binocular Head
Objective: Turret Objective 1x2x Or 1x3x Or 2X/4X Magnification Range: 10X-120X
Working Distance: 110mm Stand: Pole Stand, No Light Source

The stereoscopic microscope has a positive stereoscopic sense, which is easy to operate and dissect. The field of view is large in diameter, the working distance is long, and the depth of focus is large, which is convenient to observe the whole layer of the object being detected.



A22.3670-B1 Stereo Microscope Speicification

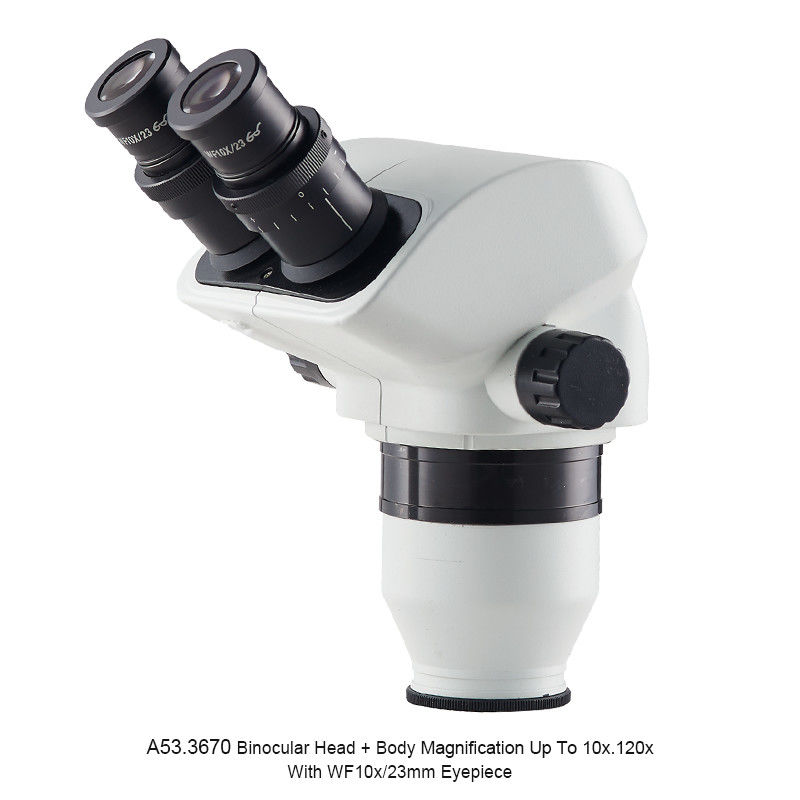

Head 45°Binocular head
Eyepiece Wide Field, High-eyepoint Eyepiece-WF10X23mm
Objective Turret Objective 1x2x or 1x3x or 2X/4X
Magnification Range 10X-120X
Working Distance 110mm
Stand Pole Stand, No Light Source



Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance



Objective Optics Parameter
Magnification Eyepiece Working Distance
10X23 10X20 15X16 20X12
1X 10X23mm 10X20mm 15X16mm 20X12mm 110mm
2X 20X11.5mm 20X10mm 30X8mm 40X6mm
3X 30X7.7mm 30X6.7mm 45X5.3mm 60X4mm
4X 40X5.8mm 40X5mm 60X4mm 80X3mm



Eyepiece Stereo Optical Microscope Binocular Turret Objective Long Working DistanceEyepiece Stereo Optical Microscope Binocular Turret Objective Long Working Distance
