No Light Source Stereo Binocular Microscopes With 100mm Working Distance

No Light Source Stereo Binocular Microscopes With 100mm Working Distance

  • High Light

    stereo dissecting microscope

    ,

    stereo zoom microscopes

  • Eyepiece
    WF10x/20mm
  • Zoom Lens
    0.67~4.5x
  • Zoom Ratio
    1:6.7
  • Magnification
    6.7x-45x
  • Working Distance
    100mm,With Auxiliary Objectives 26~287mm
  • Stand
    Pole Stand, No Light Source
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.3667L-B1T
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

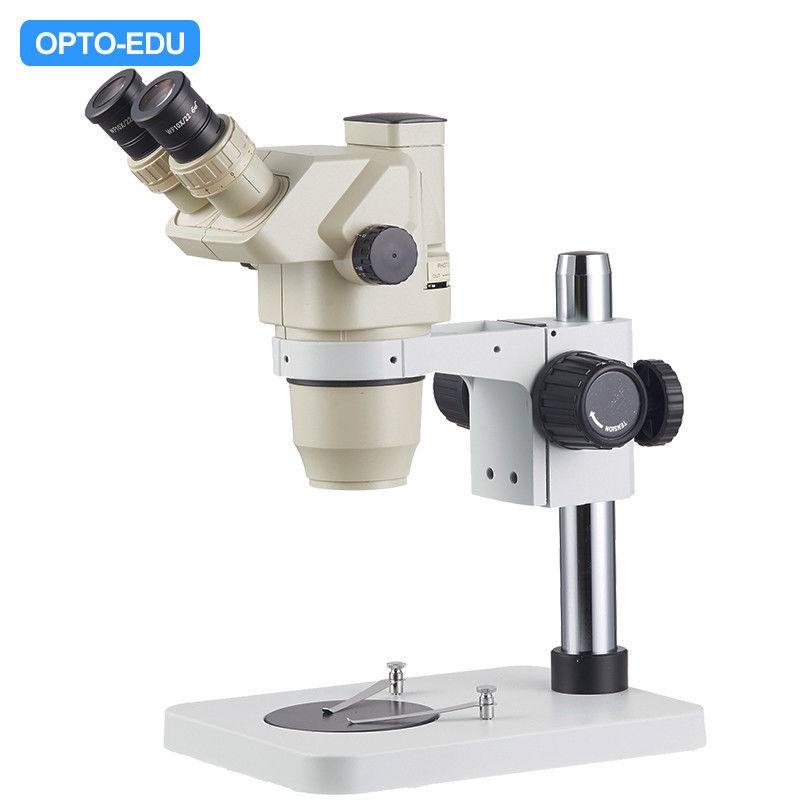

No Light Source Stereo Binocular Microscopes With 100mm Working Distance

Magnification 6.7-45x, Trinocular, WF10x/22, With Auxiliary Objectives 26~287mm, B1 Pole Stand + A1 Holder, Stand Size 200*255*22mm , Pole Height 240mm, Dia.32mm, No Light Source



A23.3667L-B1 Zoom Stereo Microscope Specification B T
Head Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm O

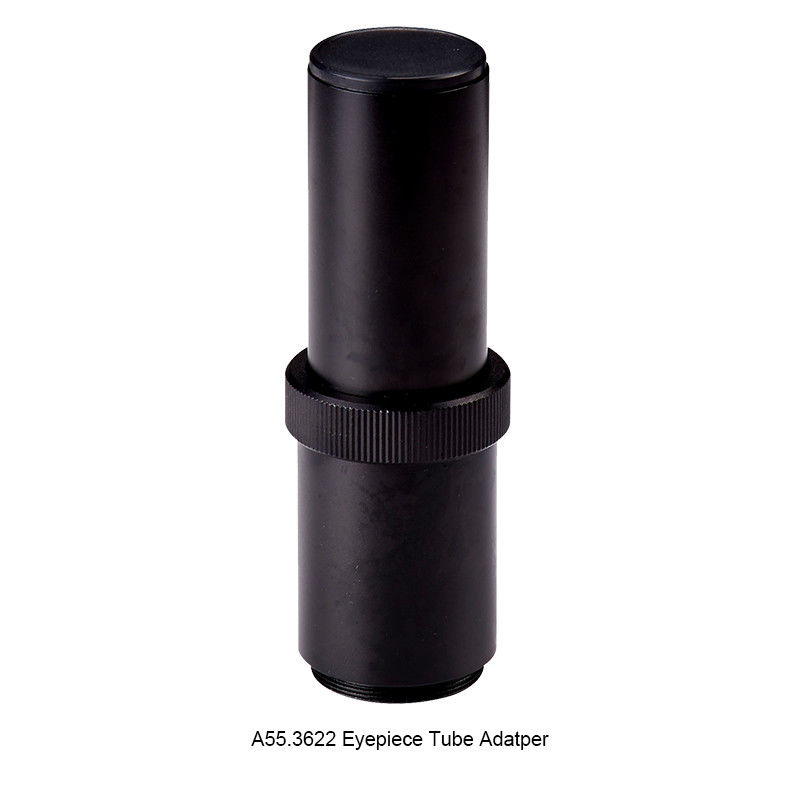

Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter   O
Eyepiece WF10x/20mm,High Eyepoint
Zoom Range 0.67~4.5x
Zoom Ratio 1:6.7
Magnification 6.7~45x, (2x~225x With Auxliary Objective)
Working Distance 100mm, With Auxiliary Objectives 26~287mm
Stand Pole Stand, No Light Source

Optional Accessories Cata.No.
Head With WF10X eyepiece; 6.7-45x continuously adjustable A53.3667L-B
Trinocular With WF10X eyepiece; 6.7-45x continuously adjustable A53.3667L-T
Eyepiece WF10x/20mm, High-eyepoint A51.3621-1020
WF10x/22mm, High-eyepoint A51.3621-1022
WF10x/23mm, High-eyepoint A51.3621-1023
WF15x/15mm, High-eyepoint A51.3621-1515
WF20x/10mm, High-eyepoint A51.3621-2010
WF25x/9mm, High-eyepoint A51.3621-2509
WF30x/8mm, High-eyepoint A51.3621-3008
WF10x/22mm, High-eyepoint, Diopter Adjustable A51.3622-1022
WF15x/15mm, High-eyepoint, Diopter Adjustable A51.3622-1515
WF20x/10mm, High-eyepoint, Diopter Adjustable A51.3622-2010
WF25x/9mm, High-eyepoint, Diopter Adjustable A51.3622-2509
WF30x/8mm, High-eyepoint, Diopter Adjustable A51.3622-3008
Auxiliary Lens 0.3X,W.D. 287mm A52.3622-0.3x
0.5X,W.D. 177mm A52.3622-0.5x
0.7X,W.D. 113mm A52.3622-0.7x
0.75X,W.D. 116mm A52.3622-0.75x
1.5X,W.D. 47mm A52.3622-1.5x
2.0X,W.D. 26mm A52.3622-2.0x

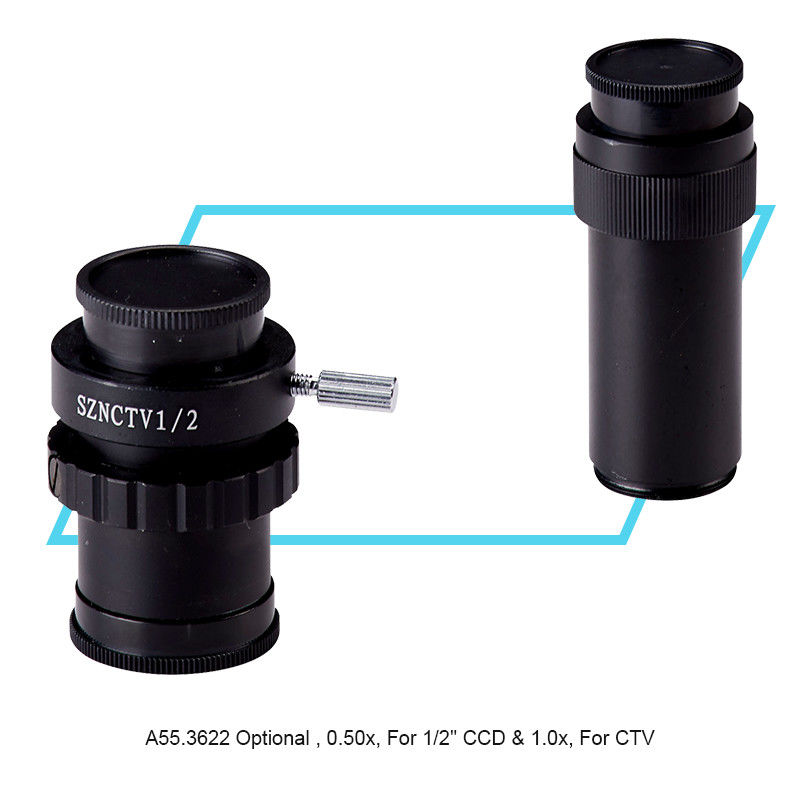

CCD Adapter 1.0x, For CTV A55.3622-1.0x
0.50x, For 1/2" CCD A55.3622-0.5x



No Light Source Stereo Binocular Microscopes With 100mm Working Distance 0

No Light Source Stereo Binocular Microscopes With 100mm Working Distance 1

A23.3667L Zoom Stereo Microscope Optical Data Sheet
Auxiliary Lens 0.3X 0.4X 0.5X 0.75X 1.0X 1.5X 2.0X
W,D. 287mm 217mm 177mm 117mm 100mm 47mm 26mm
WF10X Magnification 2.0-13.5x 2.7-18.0x 3.4-22.5x 5.0-33.8x 6.7-45.0x 10.1-67.5x 13.4-90.0x
View Field(mm) 109.5-16.3 82.1-12.2 65.7-9.8 43.8-6.5 32.8-4.9 21.9-3.3 16.4-2.4
WF15X Magnification 3.0-20.3x 4.0-27.0x 5.0-33.8x 7.5-50.6x 10.1-67.5x 15.1-101.3x 20.1-135x
View Field(mm) 79.6-11.9 59.7-8.9 47.8-7.1 31.8-4.7 23.9-3.6 15.9-2.4 11.9-1.8
WF20X Magnification 4.0-27.0x 5.4-36.0x 6.7-45.0x 10.1-67.5x 13.4-90.0x 20.1-135.0x 26.8-180x
View Field(mm) 59.7-8.9 44.8-6.7 35.8-5.3 12.9-2.4 17.9-2.7 11.9-1.8 9-1.3
WF25X Magnification 5.0-33.8x 6.7-45.0x 8.4-56.3x 12.6-84.4x 16.8-112.5x 25.1-168.8x 33.5-225x
View Field(mm) 44.8-6.7 33.6-5.0 26.9-4.0 17.9-2.7 13.4-2.0 9.0-1.3 6.7-1.0
