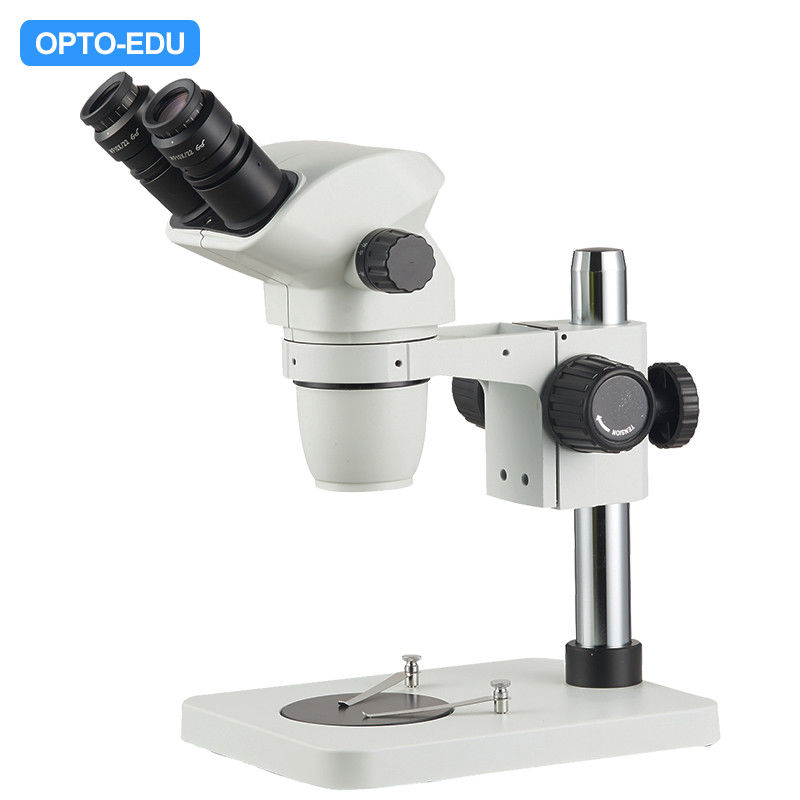

105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens

China 105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens supplier
105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens supplier 105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens supplier 105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens supplier

Large Image :  105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens

Product Details:

Place of Origin: China
Brand Name: OPTO-EDU
Certification: CE, Rohs
Model Number: A23.3667-B1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/20mm Zoom Lens: 0.67~4.5x
Zoom Ratio: 1:6.5 Magnification: 6.7x-45x
Working Distance: 105mm Stand: Pole Stand, No Light Source



A23.3667-B1 Zoom Stereo Microscope Specification B T
Head Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm O
Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter   O
Eyepiece WF10x/20mm,Both with Eye-cup
Zoom Range 0.67~4.5x
Zoom Ratio 1:6.5
Magnification 6.7~45x
Working Distance 105mm
Stand Pole Stand, No Light Source

Optional Accessories Cata.No.

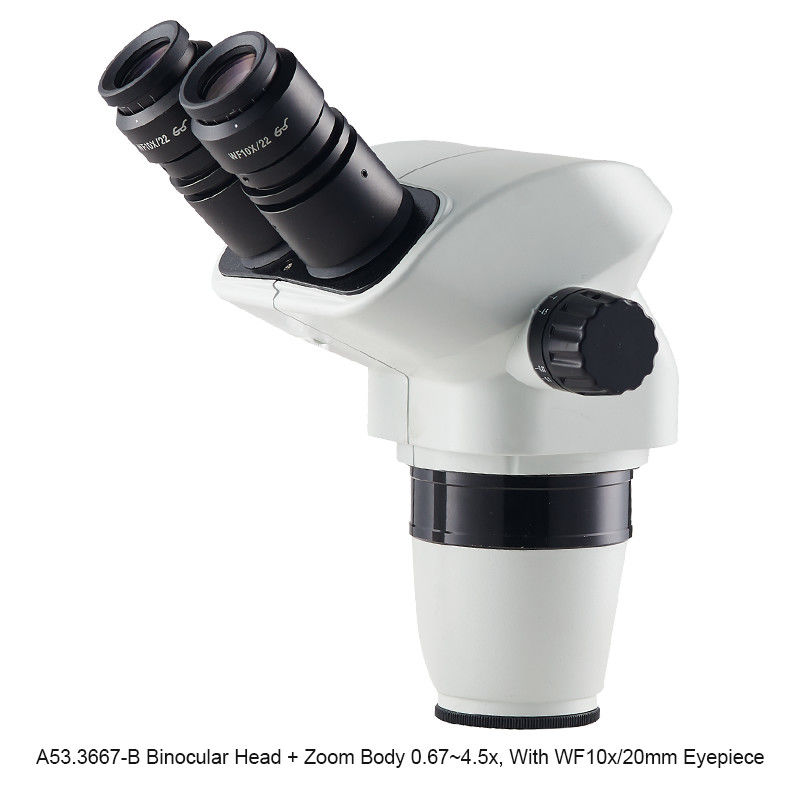

Head With WF10X eyepiece; 6.7-45x continuously adjustable A53.3667-B
Trinocular With WF10X eyepiece; 6.7-45x continuously adjustable A53.3667-T
Eyepiece WF10x/20mm, High-eyepoint A51.3621-1020
WF10x/22mm, High-eyepoint A51.3621-1022
WF10x/23mm, High-eyepoint A51.3621-1023
WF15x/15mm, High-eyepoint A51.3621-1515
WF20x/10mm, High-eyepoint A51.3621-2010
WF25x/9mm, High-eyepoint A51.3621-2509
WF30x/8mm, High-eyepoint A51.3621-3008
WF10x/22mm, High-eyepoint, Diopter Adjustable A51.3622-1022
WF15x/15mm, High-eyepoint, Diopter Adjustable A51.3622-1515
WF20x/10mm, High-eyepoint, Diopter Adjustable A51.3622-2010
WF25x/9mm, High-eyepoint, Diopter Adjustable A51.3622-2509
WF30x/8mm, High-eyepoint, Diopter Adjustable A51.3622-3008

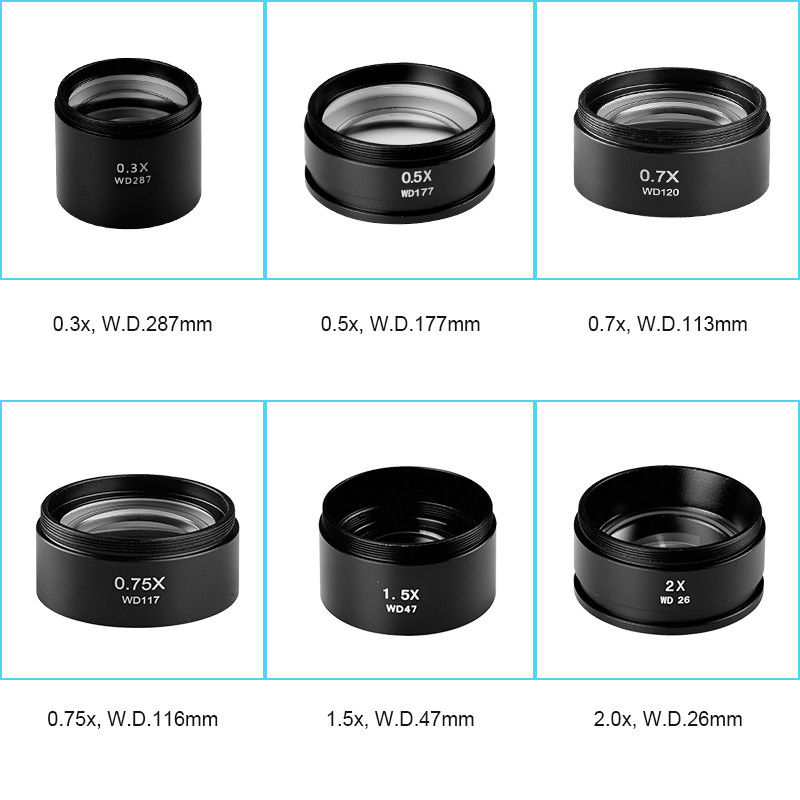

Auxiliary Lens 0.3X,W.D. 287mm A52.3622-0.3x
0.5X,W.D. 177mm A52.3622-0.5x
0.7X,W.D. 113mm A52.3622-0.7x
0.75X,W.D. 116mm A52.3622-0.75x
1.5X,W.D. 47mm A52.3622-1.5x
2.0X,W.D. 26mm A52.3622-2.0x
CCD Adapter 1.0x, For CTV A55.3622-1.0x
0.50x, For 1/2" CCD A55.3622-0.5x


105mm Working Distance Stereo Optical Microscope With 0.67 - 4.5x Zoom Lens



A23.3667 Zoom Stereo Microscope Optical Data Sheet
Objective Standard 1.0x Auxiliary 0.5X Auxiliary 1.5X Auxiliary 2X
W,D. 100mm 165mm 45mm 30mm
Eyepiece Mag View Field Mag View Field Mag View Field Mag View Field
10X/20mm 7.0X 28.6mm 3.5X 57.1mm 10.5X 19mm 14X 14.3mm
45.0X 4.4mm 22.5X 8.9mm 67.5X 3mm 90X 2.2mm
15X/15mm 10.5X 21.1mm 5.25X 42.8mm 15.75X 14.3mm 21X 10.7mm
67.5X 3.3mm 33.75X 6.7mm 101.25X 2.2mm 135X 1.7mm
20X/10mm 14.0X 14.3mm 7.0X 28.6mm 21.0X 9.5mm 28X 7.1mm
90.0X 2.2mm 45.0X 4.4mm 135.0X 1.5mm 180X 1.1mm
