Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives

China Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives supplier
Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives supplier Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives supplier

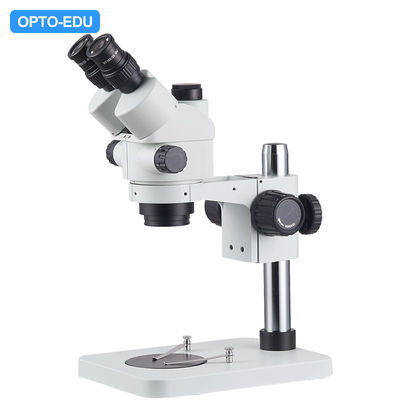

Large Image :  Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives

Product Details:

Place of Origin: China
Brand Name: OPTO-EDU
Certification: CE, Rohs
Model Number: A23.3645N-B1T

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/20mm Zoom Lens: 0.7~4.5x
Zoom Ratio: 1:6.5 Magnification: 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives
Working Distance: 100mm, With Auxiliary Objectives 30~165mm Field Of View: 1~95.2mm
Stand: Pole Stand, No Light Source

Hinged triad, 50/50%, 20/80%, WF10X/20mm High Eyepieces, With A Variety Of Base Options, Up to 3.5-270x With Optional Eyepieces And Auxiliary Objectives.

A23.3645N-B1 Zoom Stereo Microscope Specification B T
Head Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm O
Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter   O
Eyepiece WF10x/20mm, Both With Eye-cup
Zoom Lens 0.7~4.5x
Zoom Ratio 1:6.5
Magnification 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
Working Distance 100mm, With Standard 1x Lens
Field Of View 1~95.2mm
Stand Pole Stand, No Light Source

Optional Accessories Cata.No.
Head Binocular Head + WF10x/20mm A53.3645N-B
Trinocular Head + WF10x/20mm A53.3645N-T
Eyepiece WF10x/20mm, High-eyepoint A51.3621-1020
WF10x/22mm, High-eyepoint A51.3621-1022
WF10x/23mm, High-eyepoint A51.3621-1023
WF15x/15mm, High-eyepoint A51.3621-1515
WF20x/10mm, High-eyepoint A51.3621-2010
WF25x/9mm, High-eyepoint A51.3621-2509
WF30x/8mm, High-eyepoint A51.3621-3008
WF10x/22mm, High-eyepoint, Diopter Adjustable A51.3622-1022
WF15x/16mm, High-eyepoint, Diopter Adjustable A51.3622-1516
WF20x/12mm, High-eyepoint, Diopter Adjustable A51.3622-2012
WF25x/9mm, High-eyepoint, Diopter Adjustable A51.3622-2509
WF30x/8mm, High-eyepoint, Diopter Adjustable A51.3622-3008
Auxiliary Lens 0.5X,W.D. 165mm A52.3621-0.5x
1.5X,W.D. 45mm A52.3621-1.5x
2.0X,W.D. 30mm A52.3621-2.0x
CCD Adapter 1.0x, For CTV A55.3621-1.0x
0.50x, For 1/2" CCD A55.3621-0.5x
0.35x, For 1/3" CCD A55.3621-0.35x
0.50x, For 1/2" CCD A55.3621-N0.5x

Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives

Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives

A23.3645N Zoom Stereo Microscope Optical Data Sheet
Objective Standard 1.0x Auxiliary 0.5X Auxiliary 1.5X Auxiliary 2X
W,D. 100mm 165mm 45mm 30mm
Eyepiece Mag View Field Mag View Field Mag View Field Mag View Field
10X/20mm 7.0X 28.6mm 3.5X 57.1mm 10.5X 19mm 14X 14.3mm
45.0X 4.4mm 22.5X 8.9mm 67.5X 3mm 90X 2.2mm
15X/15mm 10.5X 21.1mm 5.25X 42.8mm 15.75X 14.3mm 21X 10.7mm
67.5X 3.3mm 33.75X 6.7mm 101.25X 2.2mm 135X 1.7mm
20X/10mm 14.0X 14.3mm 7.0X 28.6mm 21.0X 9.5mm 28X 7.1mm
90.0X 2.2mm 45.0X 4.4mm 135.0X 1.5mm 180X 1.1mm



Trinocular Stereo Optical Microscope With Optional Eyepieces / Auxiliary Objectives
