Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A

Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A

  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • Application
    Research
  • Certification
    CE|Rohs
  • Drawtube
    Trinocular
  • Illumination
    Halogen Lamp
  • Magnification
    50X-500X
  • Theory
    Metallurgical Optical Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.0912-A
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A



Infinity Color Corrrected Optical System Metallurgical Optical Microscope A13.0912







Introduction



A13.0912 Inverted Metallurgical Microscope is widely applied for the research of cast,smelt,heat treatment and the inspection of raw material and material processing, as well as food safety evaluation, medical test an geological test.




Specification

                        A13.0912 Inverted Metallurgical Microscope
Optical System Infinity Color Corrrected Optical System
Frame One-piece Construction,With Filter Slot & Polarizing Slot
Head Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, 360° Rotatable, IPD 50-75mm,
Eyepiece Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point,
Field Bright & Dark Filed, With BD Shifter
Objective Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-5x/0.15 WD11mm
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-10x/0.3 WD9.5mm
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-20x/0.45 WD3.4mm
Infinity LWD BD Plan Achromatic Metallurgical Objective 50x/0.55 WD7.5mm
Focus System Coaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm,
Nosepiece BD Quintuple Nosepiece With DIC Slot
Condenser LWD N.A. 0.30 With Iris Diaphragm And Aperture Disphragm, Both Centers Adjustable
Stage Right Hand Controls, Low Positioned, Three-Layer Mechanical stage, size 240x250mm, moving range 50x50mm, Bothway Linear Guide Rail,
Metal Specimen Holder (Dia. 25)
Light Source Reflected Halogen Lamp, 12V100W
Light Indicator
Brightness Adjustable
ECO Infared Induction System (Auto on/off)
External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output,
Polarzation Polarizer & 360° Analyzer
Other Power cord
Optional Accessories
Item No.
Eyepiece Plan WF15x/16mm, Diopter Adjustable, Reticle Attachable,High Eye-point
Objective Infinity LWD BD Plan Achromatic Metallurgical Objective 100x/0.8 WD2.1mm
Adapter 035x C-Mount
0.5x C-Mount
0.65x C-Mount
1x C-Mount
DIC DIC Slider

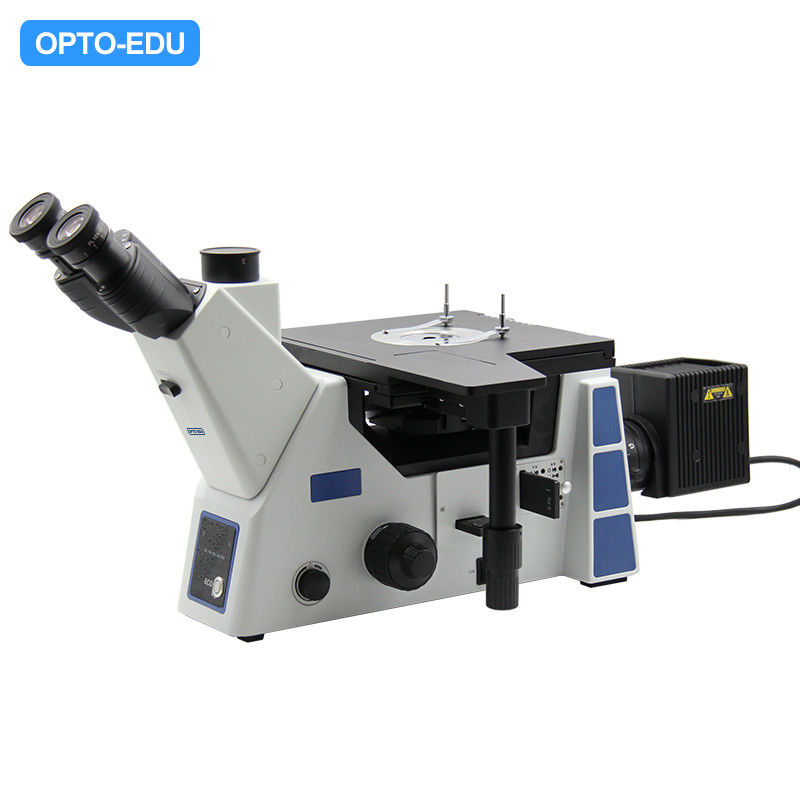

Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A 0

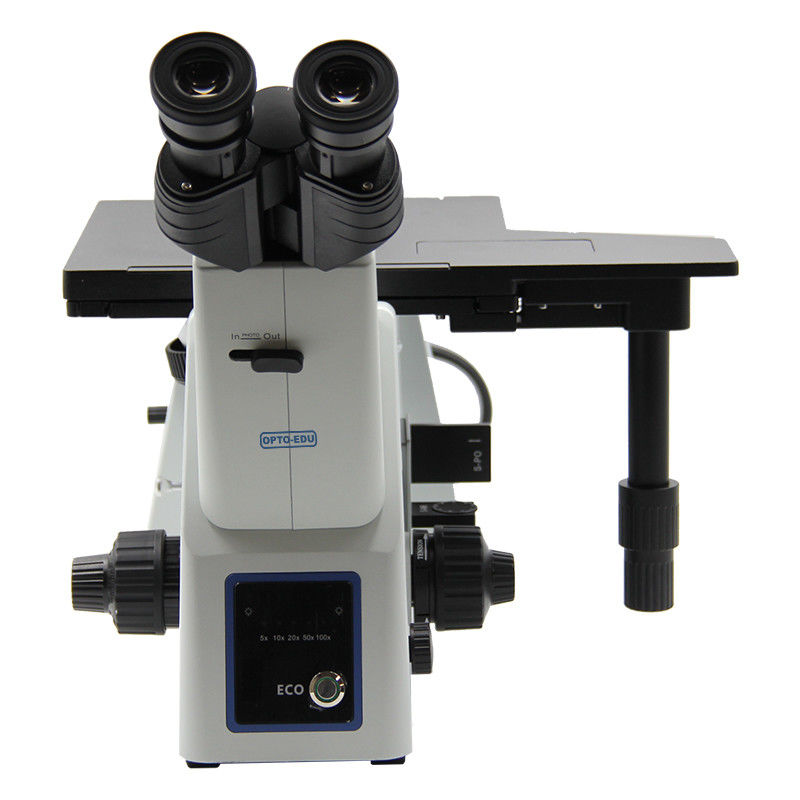

Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A 1

Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A 2

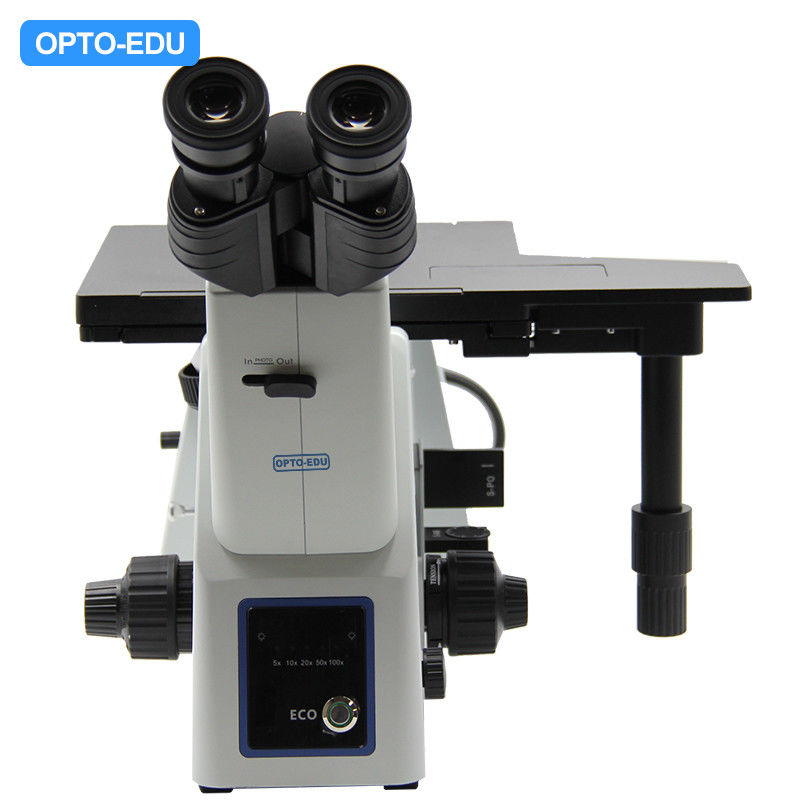

Infinity Color Metallurgical Optical Microscope Corrected Optical System A13.0912-A 3
