Phase Contrast Microscope with Halogen Lamp Illumination A19.0209-40
--Compact Design For Appearance And Structure
--Ergonomic Design, Easy Operation, Outstanding Optical Performance, Clear and Bright Image
--Specially Developed for Phase Contrast Observation, High Contrast, High Resolution, Highlight the Cell Outline and Internal Structure
--High Precision Focusing Device and Convernient Illumination Adjustment
|

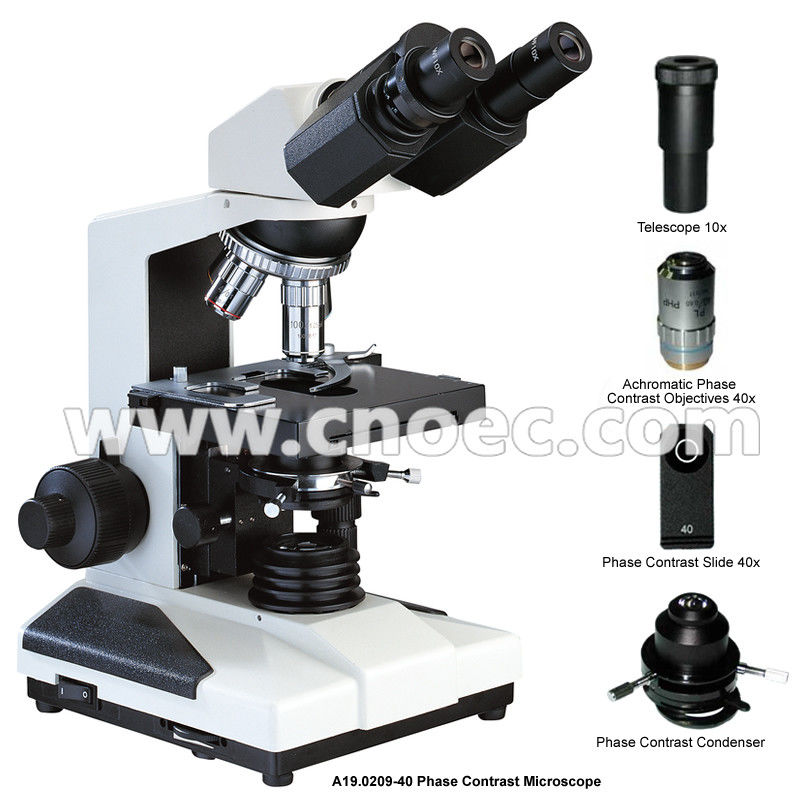

A19.0209-40 Phase Contrast Microscope
|
| Magnification |
40x~1000x |
| Head |
Sliding Binocular Head, 30° Inclined
|
|
Eyepiece
|
Wide Field WF10x/18mm |
| Nosepiece |
Backward Quadruple Nosepiece |
| Objective |
Achromatic 4x/0.10, 10x/0.25, 100xs/1.25(Oil) |
| Stage |
Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm |
| Focusing |
Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit, Base Bearing Black Plastic Cap |
| Condenser |
N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder |
| Filter |
Blue, Yellow, Green |
| Phase Contrast |
Phase Contrast Objective 40x |
| Phase Contrast Slide 40x |
| Phase Contrast Condenser |
| Centering Telescope 10x |
| Light Source |
Built-in Illumination 6V20W Halogen Lamp, 100~240V |
|
