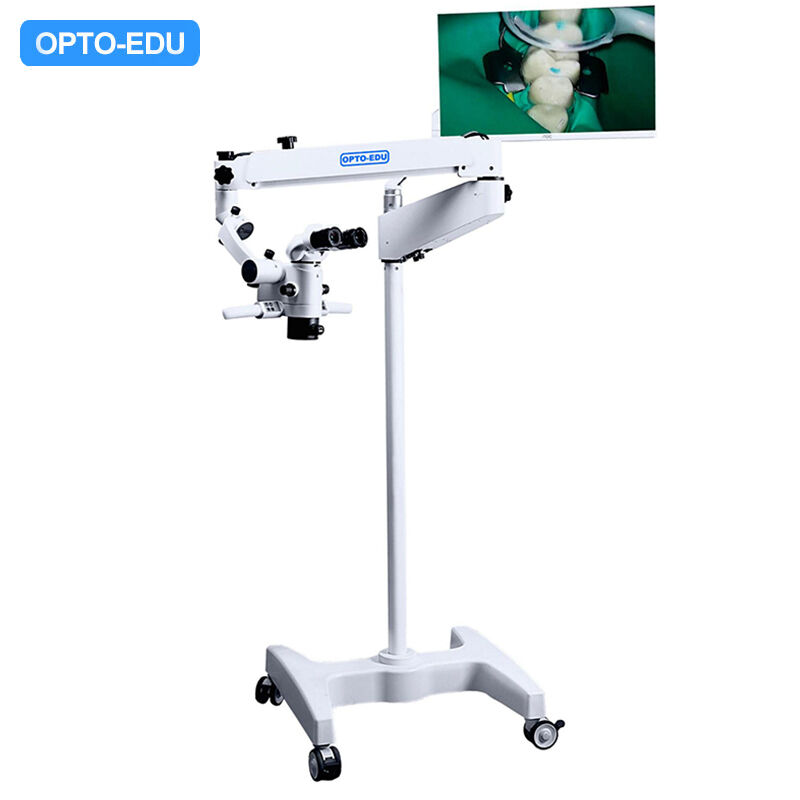

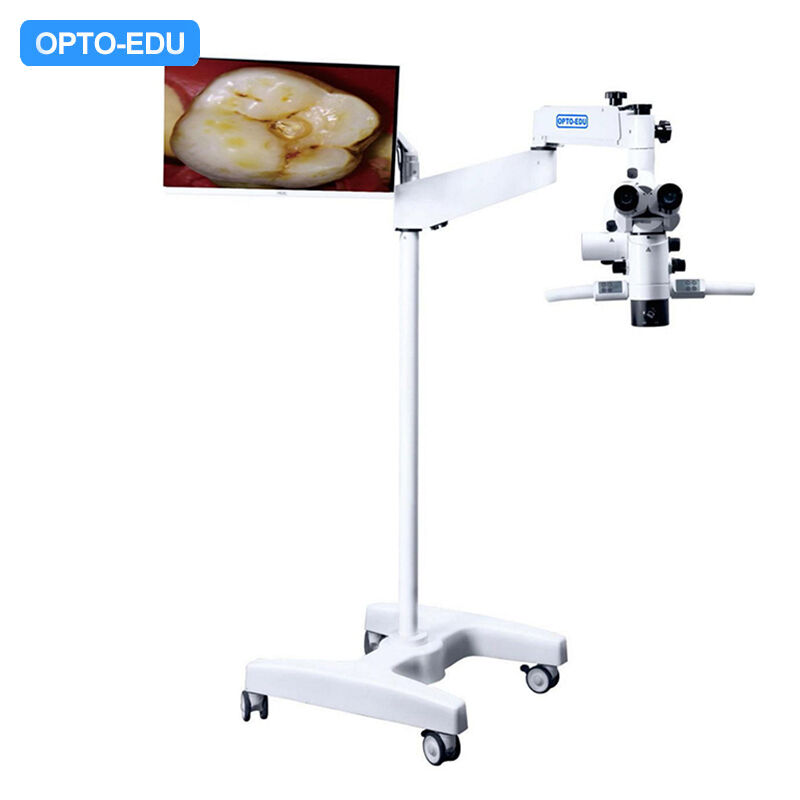

OPTO-EDU A41.1924 Operating Microscope Single Head Manual 5 steps 3.6x 5.4x 9x 14.4x 22.5x For Dental ENT

The A41.1924 Surgical Operating Microscope delivers a high-resolution optical system with strong stereo perception and deep depth of field. Equipped with adjustable LED cold-light illumination and a manual five-step drum magnification changer, this compact and highly mobile microscope is engineered for microsurgical procedures in stomatology, dental, and ENT (ear, nose, and throat) applications.

• Clinical versatility: Suitable for dental, stomatology, ENT, and decorative surgery procedures.
• Ultra-long-life LED light source: Up to 100,000 hours of service life for reduced maintenance.
• Compact and mobile frame: Small, well-balanced, and easy to reposition between treatment rooms.
• Built-in 4K HDMI camera system: Supports real-time imaging, photo capture, and video recording.
• 180–300 mm ultra-large range zoom lens: Flexible working distance for varied surgical needs.
• Optical quality: High definition, high brightness, and ultra-large depth of field for precise visualization.

The A41.1924 includes built-in yellow and green color filters, selectable via a built-in button on the ordinary paddles. The yellow filter helps prevent rapid resin curing during dental procedures, while the green filter enhances the visibility of blood vessels under surgical conditions.

The A41.1924 uses a long-life medical LED white light source with high color temperature, high color rendering index, high brightness, and excellent color reduction. It provides comfortable illumination for extended procedures without eye fatigue. Compared with traditional halogen lamps, the LED system is better suited to stomatology requirements, consumes less energy, and offers a service life of up to 100,000 hours.

A41.1924 is the basic version for ENT and dental operations. It features a single binocular head that tilts freely from 0° to 200° and a manual five-step zoom with magnifications of 3.6x, 5.4x, 9x, 14.4x, and 22.5x.

A41.1925 is the upgraded version with 1:6 manual continuous zoom (2.5x–21x), a built-in 4K HDMI camera, and a 27" 4K monitor.

A41.1927 offers 1:6 motorized continuous zoom (2.5x–21x), a built-in 4K HDMI camera, and a 27" 4K monitor.

All models can be upgraded with an optional assistant head, beam splitter, various adaptors, or an external camera to share real-time images to an LCD monitor, mobile phone, or computer.
