| A41.1903 Series Operation Microscope Specification | ||
| A41.1903 Series Operating Microscopes, is the basic economical high quality series. It use fibre-optic cable for coaxial illumination, with 3 steps zoom body, has total magnification 2.3x~12x, featured with flexible handling and easy operation. It is widely used in hospital for ENT (ear-nose-throat), dental, ophthalmology, gynecology, surgery, orthopedics and etc. |
| Model | A41.1903 | |
| Binocular Head | Tilting 0~180° | |
| Main Usage | Dental, ENT, Ophthalmology, Gynecology | |
| Total Magnification | With Objective F=200mm: 6.0x, 10x, 16x With Objective F=250mm: 4.8x, 8.0x, 12.8x |
|
| Total Magnification (Optional) | With Objective F=300mm: 4.0x, 6.7x, 10.7x With Objective F=400mm: 3.0x, 5.0x, 8.0x |
|
| Eyepiece | WF12.5x/20mm | |
| Head Magnification | 8x | |
| Interpupillary Distance | 50~80mm Adjustable | |
| Diopter | Both Left & Right Eyetube Diopter Adjustable ±7D | |
| Zoom Body | 3 Steps Zoom: 0.6x,1.0x,1.6x | |
| Objective | F=200mm For Ear, Nose, Ophthalmology F=250mm For Dental |
|
| Objective (Optional) | F=300mm For Ear, Nose F=400mm For Throat |
|
| Focusing | Fine Focusing Range 10mm | |
| Filter | Green, Yellow Filters Built-in | |
| Balancing Arm | 2-Part Arm With Universal Joints, Counterweight Adjustable And Lockable | |

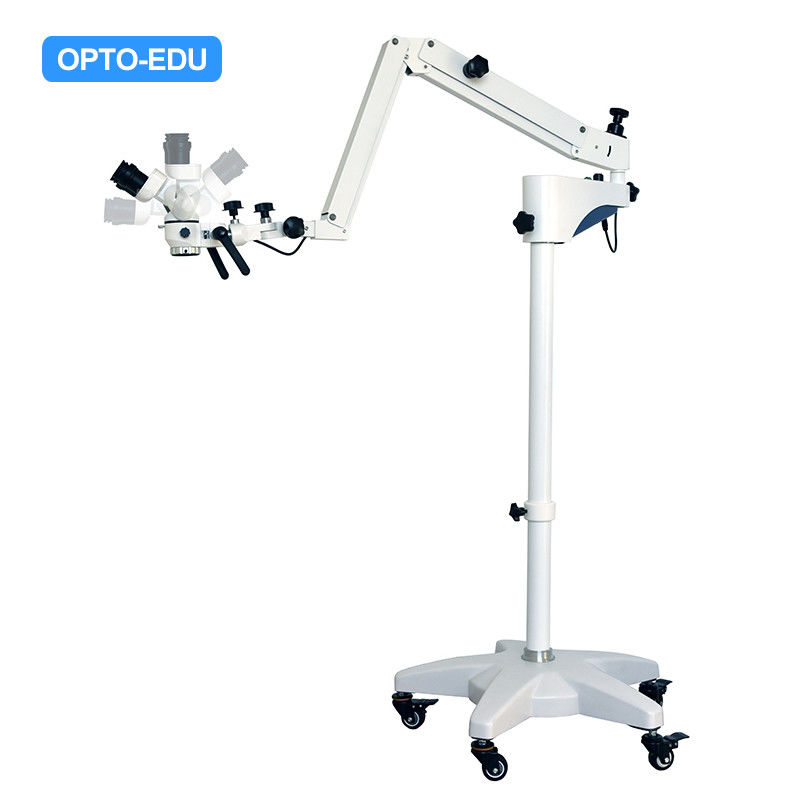

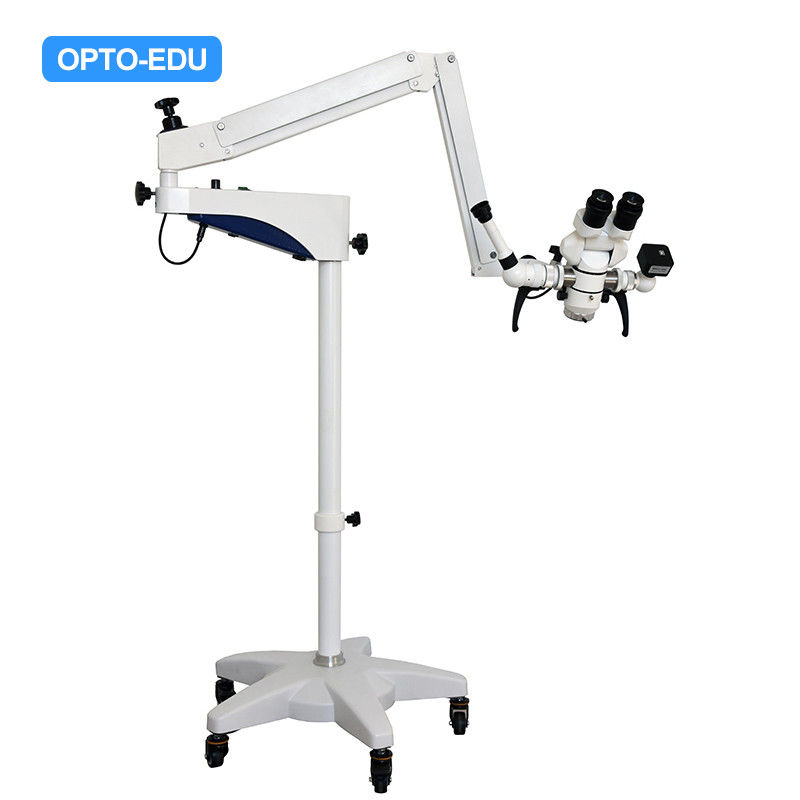

| Stand | 2-Part Column + Five Star Base With Caster | |
| Illumination System | Coaxial Illumination, 10W LED, Brightness Adjustable, >40000 Lux | |
| Power Supply | Wide Range AC100~240V, DC12V 3A, 36W | |
| A41.1903 Series Operation Microscope Optional Accessories | ||
| Eyepiece | WF10x/23mm | A51.1901-1023 |
| Objective | F=300mm | A52.1901-300 |
| F=400mm | A52.1901-400 | |
| F=200mm/250mm/300mm Zoom, Connection Thread: M47x0.5mm(Zeiss) / M65x0.5mm(Leica), Or M47x0.75mm / M51x0.75mm / M56x0.75mm, Or Customized According To Customer Requirements |
A52.1902-01 | |
| F=200mm/250mm/300mm Zoom, With Splash Cover Connection Thread: M47x0.5mm(Zeiss) / M65x0.5mm(Leica), Or M47x0.75mm / M51x0.75mm / M56x0.75mm, Or Customized According To Customer Requirements |
A52.1902-02 | |
| Adapter | 50:50 Beamsplitter | A55.1906 |
| C-Mount 0.3x For 1/3" Digital Camera | A55.1903 | |
| SLR Camera Adapter For NIKON DSLR Or CANON SLR | A55.1904 | |
| Head | Teaching Head, Demonstrator | A55.1910 |
| Tiltable Head, Inclinable Angle: 0-180°, Eyepiece 12.5X/20mm, Interpupillarry Distance 50~80mm, Magnification 8x, F=160mm, Distance of Center 22mm. Optional Eyepiece: 10x/23mm |
A53.1903-01 | |
| Tiltable Head, With PD Adjust Knob Inclinable Angle: 0-180°, Eyepiece 12.5X/20mm, Interpupillarry Distance 50~80mm, Magnification 8x, F=160mm, Distance of Center 22mm. Optional Eyepiece: 10x/23mm |
A53.1903-02 | |

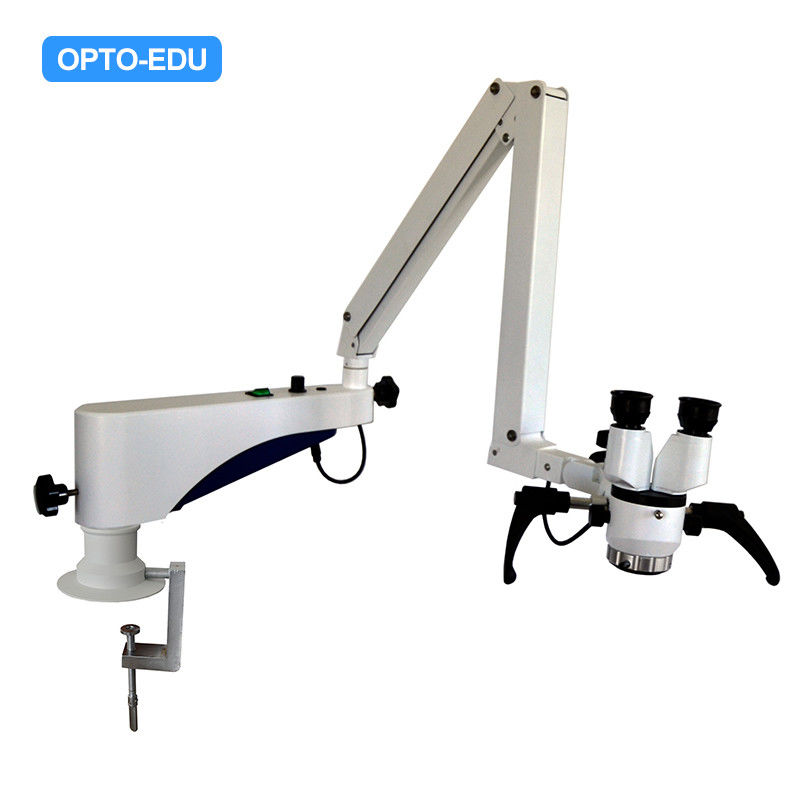

| Mount | Table Mount Clamp | A54.1901-T |

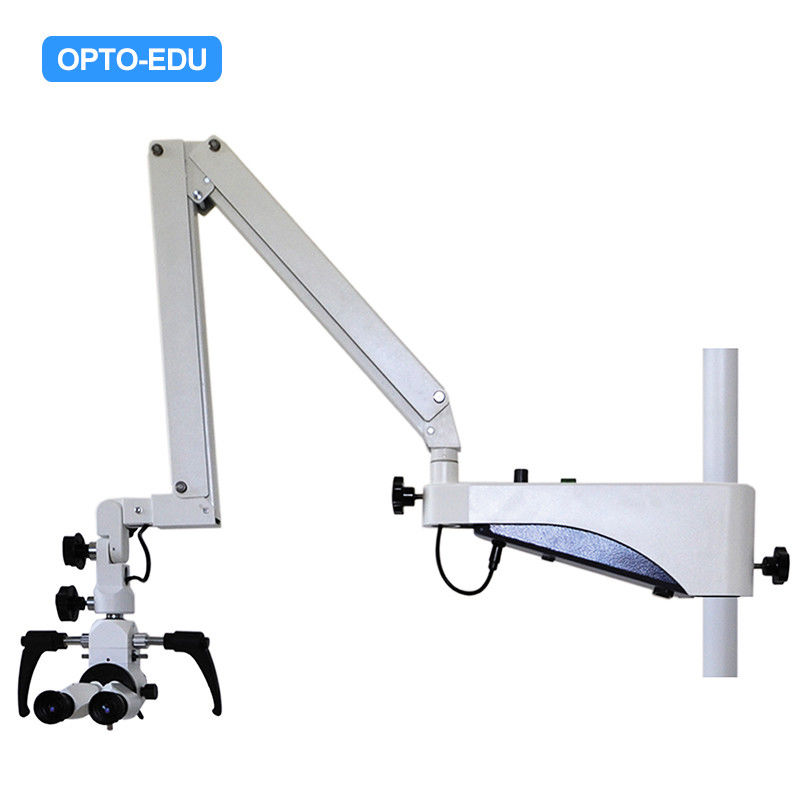

| Wall Mount Bracket | A54.1901-W | |
| Monitor Mount | Monitor Mount: 1 Fix Arm And 1 Gas Spring Arm With Tension Adjustable. Band Clamp. Fit 15-27" Screen. VESA Standard 75x75xmm & 100x100mm. Load Capacity 0~8 Kgs, Swivel 180°, Tilt -80°~+90°, Rotation 360° | A54.1910-112B |
| Monitor Mount: 1 Fix Arm And 1 Mechanic Spring Arm With Tension Adjustable. Band Clamp. Fit 15-27" Screen. VESA Standard 75x75xmm & 100x100mm. Load Capacity 0~8 Kgs, Swivel 180°, Tilt -80°~+90°, Rotation 360° | A54.1910-312B | |
