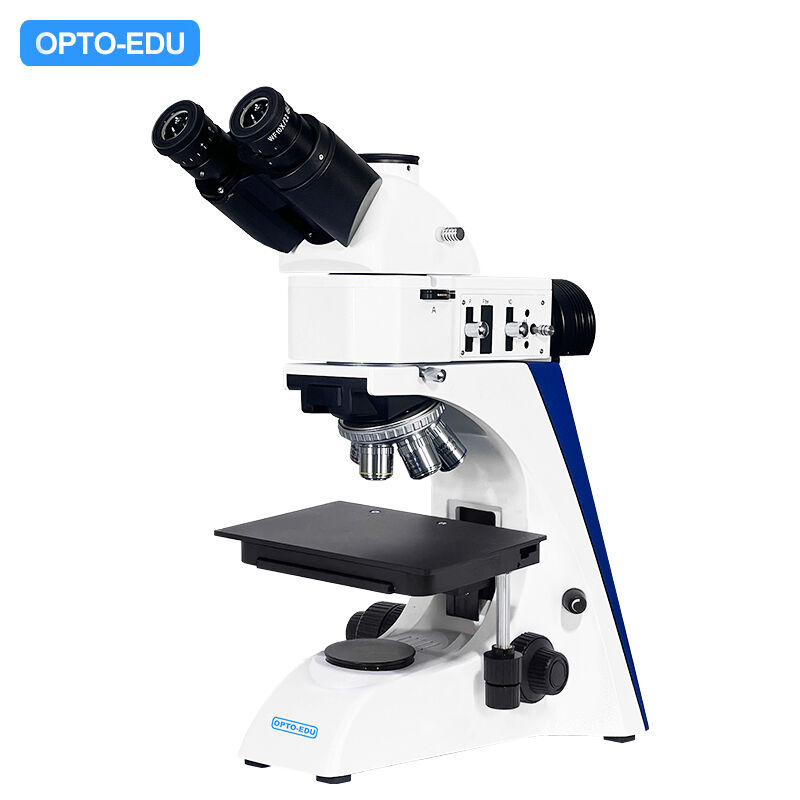

OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED

Products - Metallurgical Optical Microscope

Highlight

trinocular metallurgical microscope LED
,
50-1000X optical microscope
,
metallurgical microscope with warranty
Application

Research|Learning|Metallurgical
Certification

CE|Rohs
Drawtube

Trinocular
Illumination

LED Lamp
Magnification

50x - 1000x
Theory

Metallurgical Optical Microscope
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A13.2604-B
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T,West Union,Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED

button button

Get Price Contact Now

Best Reflect Light Metallurgical Microscope, 5W LED Halogen Koehler Illumination
2021 Upgrade To Semi-APO Metallurgical LWD Infinity Plan Objective 5x,10x,20x,50x,80x,100x
2021 Upgrade To BF/DF Model With Metallurgical LWD BD Objectives 5x10x20x50x
Large Size Trinocular Head Eyepiece Tube Dia.30mm With Light Split Switch E100:P0/E20:P80
Mechanical Stage 200x150mm/77x52mm With Quick Drop-Down For Extra 50mm Up/Down

Super Wide Field Eyepiece
SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED 5

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move
OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED 6

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Nosepiece
Quintuple, Backward, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 20x, 50x; Optional 80x, 100x
OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED 9

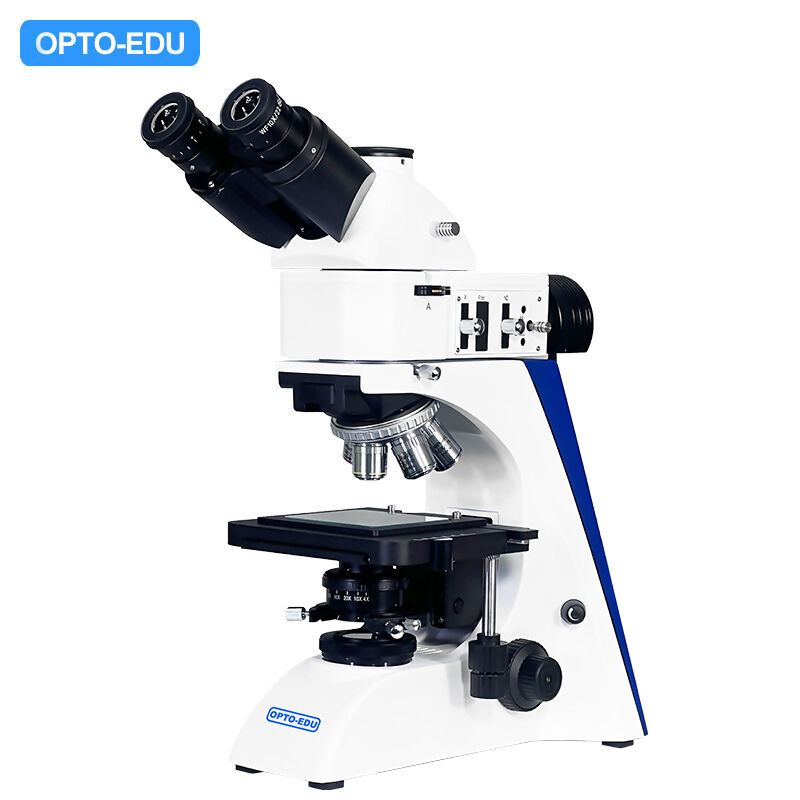

Condenser For A13.2604-B
Abbe N.A.1.25 , With Iris Diaphragm
OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED 11

5W LED Light Source, Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

OPTO-EDU A13.2604 50 - 1000X Metallurgical Optical Microscope Trinocular With LED 12

Items	A13.2604 Series Metallurgical Microscope, Reflect/Transmit, BF/DF	-A	-AD	-B	-BD	Cata. No.
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	●	●	●	●	A53.2623-T
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●	●	●	A51.2621-1022
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable, With Micrometer X-0.1mm*180 Div / Y-Single Line	●	●	●	●	A51.2622-1022
Nosepiece	Quintuple, Backward	●		●		A54.2610-N01
Nosepiece	Quarduple, Backward, Special Design For BF/DF Observe		●		●	A54.2610-N924
Metallurgical LWD Infinity Plan Semi-APO Objectives	LMPLan FL 5x/0.15, W.D.=21.0mm	●		●		A5M.2635-5
	LMPLan FL 10x/0.3, W.D.=20.0mm	●		●		A5M.263510
	LMPLan FL 20x/0.40 W.D.=15.0mm	●		●		A5M.2635-20
	LMPLan FL 50x/0.55 W.D.=10.0mm	●		●		A5M.2635-50
	LMPLan FL 50x/0.75 W.D.=4.25mm	○		○		A5M.2635-50a
	LPL80x/0.80(S) W.D.=0.85mm	○		○		A5M.2633-80
	LMPLan FL 100x/0.90(S,Dry) W.D.=3.00mm	○		○		A5M.2635-100
Metallurgical LWD Infinity Plan BF/DF Objectives	M PLAN BD5x/0.13, W.D.=16.04mm		●		●	A5M.2634-5
	M PLAN BD10x/0.25 W.D.=18.48mm		●		●	A5M.263410
	M PLAN BD20x/0.40 W.D.=8.35mm		●		●	A5M.2634-20
	M PLAN BD50x/0.70(S) W.D.=1.95mm		●		●	A5M.2634-50
Working Stage	Double Layer Mechanical Size 200×150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range	●	●			A54.2601-S01T
Working Stage	Double Layer Mechanical Size 182×140mm, Travel Range 77×52mm			●	●	A54.2601-S01T3
Condenser	Abbe N.A.1.25 , With Iris Diaphragm			●	●	A56.2614-C01d
Focusing	Coaxial Coarse And Fine Focusing Knobs, Travel Range: 25mm, Scale: 2µm	●	●	●	●
Illumination	Reflect Light 5W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●		●		A56.2650-5WLED
	Reflect Light 12V50W Halogen Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V	○	●	○	●	A56.2650-12V50WH
	Transmit Light 5W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	-	-	●	●	A56.2650-5WLED
	Transmit Light 6V30W Halogen Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V	-	-	○	○	A56.2650-6V30WH
Polarizing	Analyzer + Polarizer For Reflect Light	●	●	●	●	A5P.2603-BKR
Polarizing	Analyzer + Polarizer For Transmit Light	-	-	●	●	A5P.2603-BKT
Filter	Ground Glass Slider	●	●	●	●	A56.2620-F
Filter	Blue Filter Switch Handle	●	●	●	●	A56.2620-B
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	○	○	A55.2610
Package	Carton Size 570275450mm, 1 Unit/Ctn
Weight	Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
