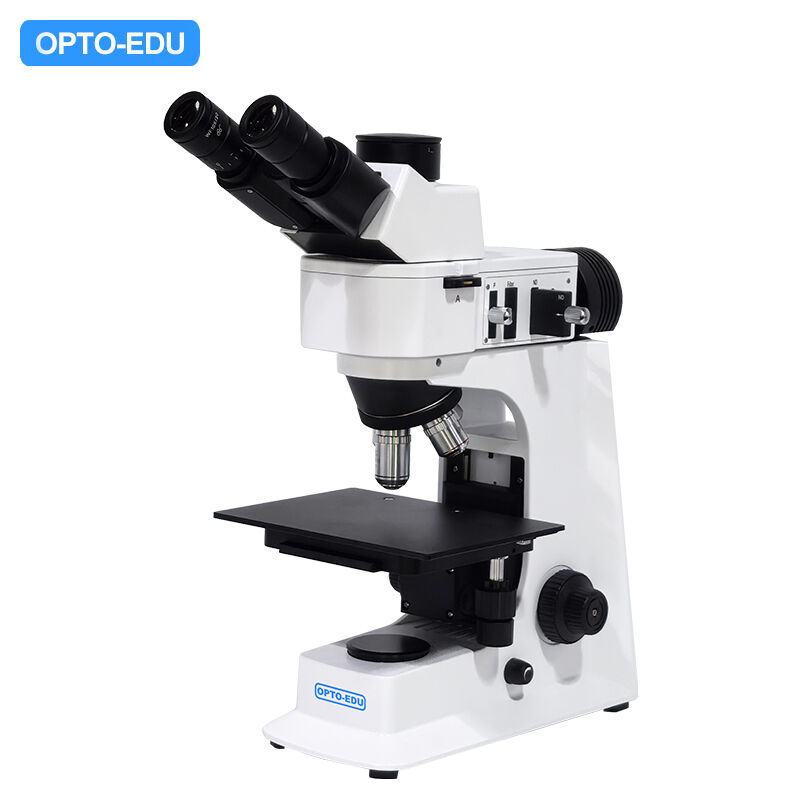

OPTO-EDU A13.2605 Metallurgical Microscope Reflect Light Trinocular

Products - Metallurgical Optical Microscope

Highlight

metallurgical microscope trinocular
,
reflect light microscope trinocular
,
OPTO-EDU metallurgical microscope
Eyepiece

WF10x/18
Nosepiece

3 Holes
Objective

LWD Plan 5x,10x,50x
Working Stage

Plain Stage
Condenser

Abbe N.A.1.25
Focusing

Coaxial Coarse & Fine
Light Source

LED
Power Supply

100~240V
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A13.2605
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T,West Union,Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A13.2605 Metallurgical Microscope Reflect Light Trinocular

button button

Get Price Contact Now

Entry Level Economical High Quality Upright Metallurgical Microscope
Wide Field Eyepiece WF10x/20mm + Reticle Eyepiece With Micrometer 0.1mm
Metallurgical LWD Infinity Plan Objective 5x,10x,20x,50x,80x,100x(Dry) Optional
Mechanical Working Stage 200x150mm, Moving Range 76x52mm With No Hole
Reflect Light Source 5W LED With Five Holes Filter Disc

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For

People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And

Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope
OPTO-EDU A13.2605 Metallurgical Microscope Reflect Light Trinocular 2

Nosepiece & Objective
High Precision Reserved Quadruple, Backward Nosepiece, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x; Optional 20x, 80x, 100x
Working Stage
Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm

OPTO-EDU A13.2605 Metallurgical Microscope Reflect Light Trinocular 4

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Items	A13.2605 Metallurgical Microscope Specification	A	B	Cata. No.
Head	Seidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm	●		A53.2621-B
Head	Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80		●	A53.2621-T
Eyepiece	WF10x/20mm, High Eyepoint,	●	●	A51.2602-1018
Eyepiece	WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable	●	●	A51.2605-1018D
Nosepiece	Quadruple, Backward	●●	●●	A54.2610-N734
Metallurgical LWD Infinity Plan Objectives	LPL 5x/0.13, W.D.=16.04mm	●	●	A5M.2633-5
	LPL10x/0.25, W.D.=18.48mm	●	●	A5M.263310
	LPL 20x/0.40, W.D.=8.35mm	○	○	A5M.2633-20
	LPL 50x/0.70, W.D.=1.95mm	●	●	A5M.2633-50
	LPL 80x/0.80, W.D.=0.85mm	○	○	A5M.2633-80
	LPL 100x/0.90(Dry), W.D.=1.00mm	○	○	A5M.2633-100
Working Stage	Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm	●	●	A54.2601-S04T
Focusing	Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm	●	●
Illumination	Reflect Light Source, 5WLED Warm Lamp, With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty) Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	A56.2650-5WLED
Polarizing	Analyzer + Polarizer	○	○	A5P.2603-BS
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610
Package	Carton Size 570275450mm, 1 Unit/Ctn
Weight	Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
