OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications

OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications

Products - Compound Optical Microscope
  • Highlight

    5W LED Dark Field Microscope

    ,

    WF10x Eyepiece Dark Field Microscope

    ,

    Dark Field Condenser Trinocular Microscope

  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A10.2602
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T,West Union,Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications

  • OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications
Get Price Contact Now

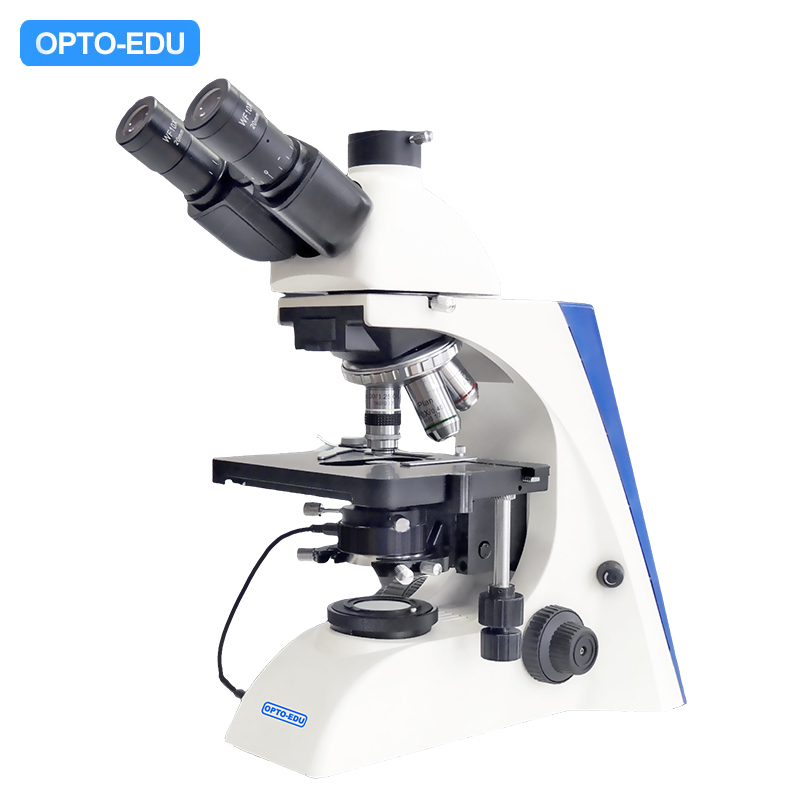

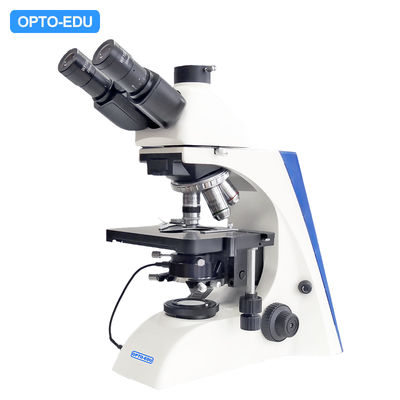

OPTO-EDU A10.2602 Dark Field Microscope Dark Field Condenser With 5W LED
2025 New Design Dark Field (DF) Microscope Features
  • All-in-One Immersion Dark Field Condenser N.A.1.3 With Built-in 5W LED Strong Light Source
  • A50.1030-P100x Plan Dark Field Objective With Iris Diaphragm 100x, Infinity Plan Objective 4x10x40x
  • BF: Abbe Condenser N.A.1.25 With 5W LED Kohler Illumination Switchable
  • Trinocular Head Light Split Switch E100:P0/E0:P100 With WF10x/20mm Eyepiece
OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications 0 OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications 1 OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications 2 OPTO-EDU A10.2602 Dark Field Microscope with 5W LED Enhanced Illumination and WF10x Eyepiece for Professional Dark Field Condenser Applications 3
Component Specification Standard/Optional Catalog No.
Head Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Switch E100:P0/E0:P100 ● A53.2622-T
Eyepiece WF10X/20mm (High Eyepoint) ●● A51.2602-1020
Nosepiece Quintuple, Backward ● A54.2610-N01
Infinity Plan Objective PLAN 2.5X/0.07,W.D.=8.47mm ○ A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm ● A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm ● A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm ○ A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm ● A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm ○ A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm ○ A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm ○ A52.2606-100W
Dark Field Objective With Iris Diaphragm 100x/1.25(Oil) ● A50.1030-P100x
Working Stage Mechanical Stage Size 175 mm×145mm, Travel 78mmX55mm, Scale: 0.1mm, Double Slide Holder ● A54.2601-S01
Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder ○ A54.2601-S10
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm ●
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down ● A56.2614-01d
Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm ○ A56.2614-07a
Illumination 5W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● A56.2650-3WLED
Kohler Illumination Field Diaphragm For Kohler Illumnation ● A56.2615-BK
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually		 ○ A56.2660
Filter Dia.45mm, Blue ○ A56.2616-45B
Dia.45mm, Green ○ A56.2616-45G
Dia.45mm, Yellow ○ A56.2616-45A
Dark Field All-in-One Immersion Dark Field Condenser N.A.1.3
With Built-in 5W LED Strong Light Source		 ● A5D.2620
Polarizing Analyzer + Polarizer Set ○ A5P.2601-BK
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter		 ○ A5C.2603-BK
Adapter C-Mount 0.5x, Focus Adjustable ● A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ A55.2601-75
C-Mount 1.0x, Focus Adjustable ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ A55.2610
Package Carton Size 542×265×350mm, 1 Unit/Ctn
Weight Gross Weight: 12 kgs, Net Weight: 10 kgs
Note: "●" in table indicates standard equipment, "○" indicates optional accessories
