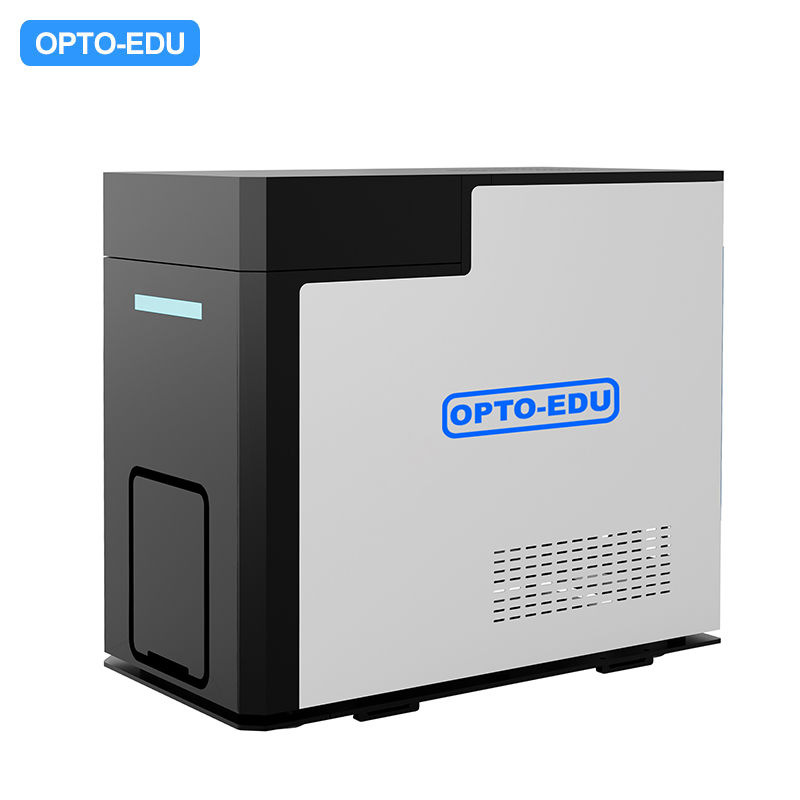

OPTO-EDU A63.7001 Tungsten Filament Scanning Electron Microscope SE BSE 150000x 10nm@15KV

Resolution

10nm@15KV
Magnification

150000x
Electron Gun

Tungsten
Voltage

5/10/15KV
Detector

BSE+SE
Navigation CCD

CCD
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A63.7001
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A63.7001 Tungsten Filament Scanning Electron Microscope SE BSE 150000x 10nm@15KV

button button

Get Price Contact Now

Magnification 150000x Resolution 10nm@15KV With Detector SE+BSE+CCD, Optional EDS,
Standard 2 Axis XY Motorized Stage, Moving 40x30mm (40x40mm Optional)
Max Specimen Size 80x42x40mm, Working Distance 5-35mm
High Vaccum 1x10-1Pa In Chamber, With Mechanical Pump, Molecular Pump
One Key Auto Focus, Auto Brightness & Contrast Adjust, No Need Shock Absorbing Table

Scanning Electron Microscopy (SEM) is an observational means between Transmission Electron Microscopy (TEM) and optical microscopy.

It scans the sample with a narrowly focused high-energy electron beam, and excites various substances through the interaction between the beam and the matter. The information is collected, amplified, and re-imaged to achieve the purpose of characterizing the microscopic morphology of the material. Adhering to the design goals of convenient operation, fast imaging and stable performance, OPTO-EDU has independently developed a tungsten filament desktop scanner.

A63.7001 Scanning Electron Microscope has a fast scanning speed and a signal acquisition bandwidth of 10M, which can display samples smoothly and in real time in video mode. All operations can be completed with a mouse, and there is no need for complex steps such as centering the diaphragm. After focusing and eliminating astigmatism, you can directly take pictures. The host integrates high voltage and control system, small size, easy to move, no special environment for installation, just find a table, plug in power, you can start to work.

Main Specification:

1. Acceleration voltage: 5KV/10KV/15KV

2. Electron gun type: pre-aligned tungsten filament, life time 100 hours, easy to replace by user, highly integrated two-stage gun lens, no need to manually adjust the diaphragm of the objective lens.

3. Magnification ≥150000X；

4. Resolution:≤10nm@15KV

5. Detector: secondary electron detector (SE), quadruple backscatter detector (BSE),

6. Stage: 2 Axis XY motorized stage, moving 40x30mm (40x40mm optional)；

7. Maximum sample size: 80x42x40mm

8. Sample change and high vacuum pumping time≤ 90s.

9. High vacuum system: built-in turbo molecular pump, external mechanical pump, the vacuum in sample chamber ≥1x10-1Pa, fully automatic control;

10. Video mode ≥512x512 pixels, no need for small window scanning.

11. Quick scan mode: imaging time≤3s, 512x512 pixels.

12. Slow scan mode: imaging time≤40s, 2048x2048 pixels.

13. Image File: BMP, TIFF, JPEG, PNG.

14. One-key automatic adjustment of brightness and contrast, auto-focus.

15. Navigation function: optical camera navigation and cabin camera.

16. Image measurement function: distance, angle, etc.

17. Including computer & software, mouse control.

18. Optional:

--Tungsten filament (20pcs/box)

--EDS

19.Microscope size: 283*553*505mm, mechanical pump size 340*160*140mm

Model	A63.7001	A63.7002	A63.7003	A63.7004	A63.7005
Resolution	10nm@15KV	6nm@18KV	4nm@20KV	3nm@20KV	2.5nm@15KV
Magnification	150000x	200000x	360000x	360000x	1000000x
Electron Gun	Tungsten	Tungsten	Tungsten	LaB6	Schotty FEG
Voltage	5/10/15KV	3-18KV	3-20KV	3-20KV	1-15KV
Detector	BSE+SE	BSE+SE	BSE+SE	BSE+SE	BSE+SE
Navigation CCD	CCD	CCD	CCD+Cabin Camera	CCD+Cabin Camera	CCD+Cabin Camera
Vaccum Time	90s	90s	30s	90s	180s
Vaccum System	Mechanical Pump Molecular Pump	Mechanical Pump Molecular Pump	Mechanical Pump Molecular Pump	Mechanical Pump Molecular Pump Ion Pump	Mechanical Pump Molecular Pump Ion Pump x2
Vaccum	High Vaccum 1x10-1Pa	High Vaccum 1x10-1Pa	High Vaccum 1x10-1Pa	High Vaccum 5x10-4Pa	High Vaccum 5x10-4Pa
Stage	XY Stage, 40x30/40x40mm	XY Stage, 40x30/40x40mm	XY Stage, 60x55mm	XY Stage, 60x55mm	XY Stage, 60x55mm
Stage Precision	-	Position Precise 5um
Working Distance	5-35mm	5-35mm	5-73.4mm	5-73.4mm	5-73.4mm
Max Specimen	80x42x40mm	80x42x40mm	100x78x68.5mm	100x78x68.5mm	100x78x68.5mm
Optional	Tungsten Filament 20 pcs/box			Lab6 Filament	Field Emission Lamp
	EDS Oxford AZtecOne with XploreCompact 30
	-	Low Vaccum 1-100Pa		Low Vaccum 1-30Pa
	-	Z Axis Module	3 Axis Stage, X 60mm, Y 50mm, Z 25mm
	-	T Axis Module	3 Axis Stage, X 60mm, Y 50mm, T ±20°
	-	-	5 Axis Stage, X 90mm, Y 50mm, Z 25mm, T ±20°, R 360°
	-	-	Shock-absorbing Platform, For 3 Axis, 5 Axis Stage
	-	Deceleration Mode 1-10KV To Watch Non-conduct Samples, Only For BSE
	-	In-Situ Stage From Original Factory, Heating, Cooling, Stretch, etc.
	UPS
