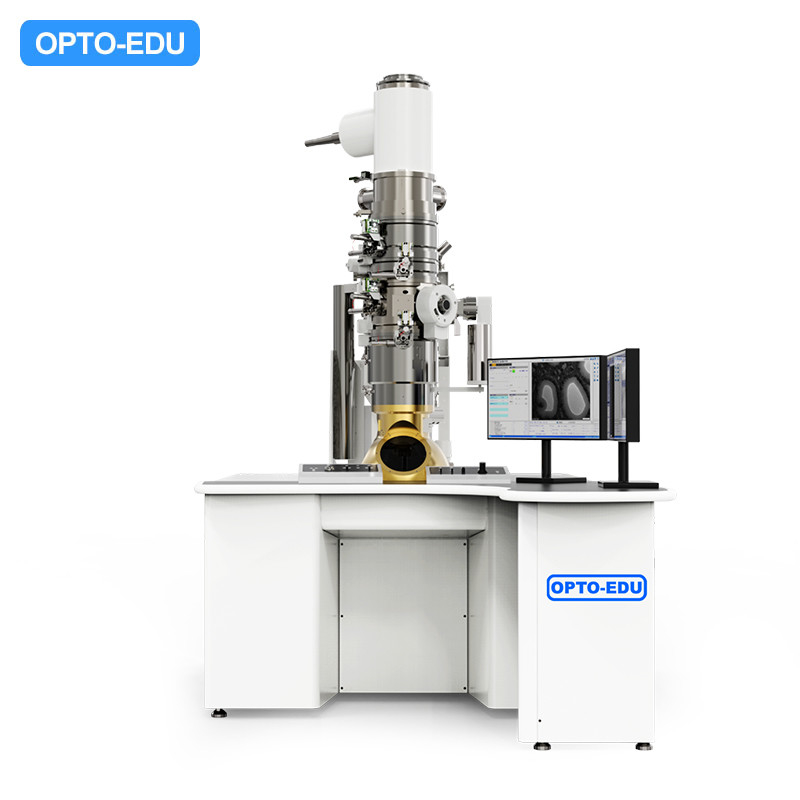

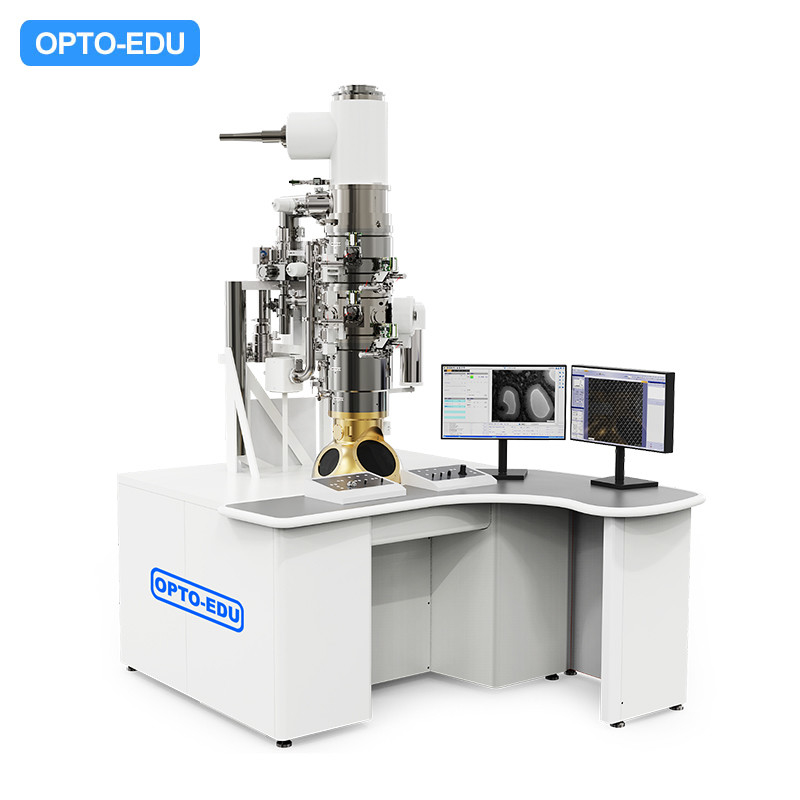

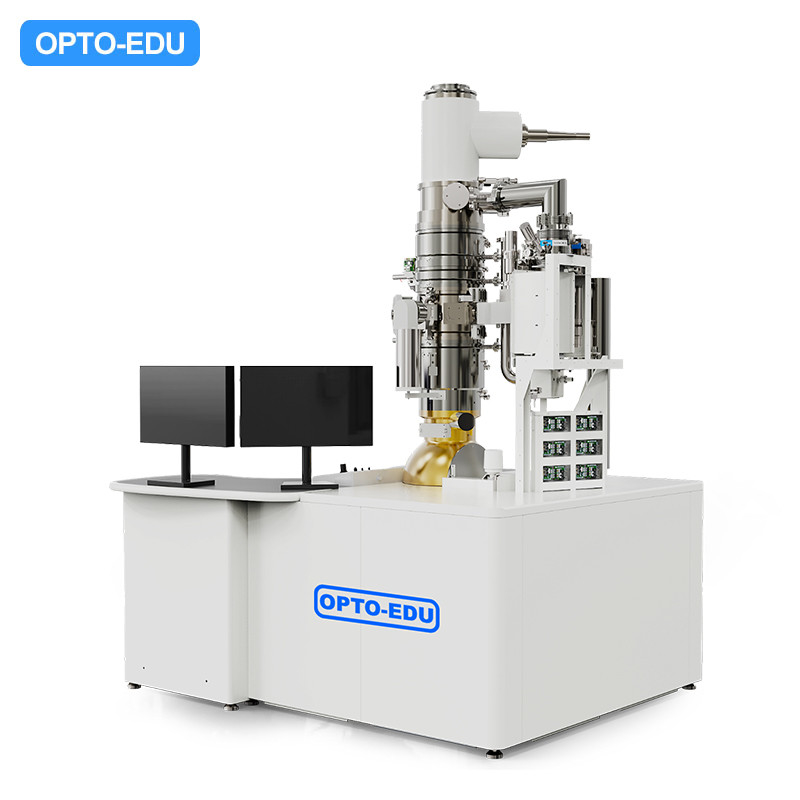

OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x
-
Accelerating Voltage200 KV, Factory Aligned At 80 KV And 200kV
-
Electron SourcePolycrystalline Tungsten Or LaB6 Emitter
-
TEM Point Resolution0.23 Nm
-
TEM Information Limit0.2 Nm
-
Magnification20x To 800000x.
-
GoniometerEccentric Goniometer 5-axis Motorized,
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA63.7225
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x
|
A63.7225 is a Thermal Emission Transmission Electron Microscope (TEM), 200KV, 800000x, independently developed & designed specifically for fields such as biology and medicine. This electron microscope design is easy to operate, and its large pole shoe design provides solutions such as 3D characterization, in-situ observation, and microcrystalline electron diffraction. |
| Simple Operation | Optimized panel and UI design, even beginners in transmission electron microscopy can directly operate the device; Provide instructional videos for operation. |
| Auto Function | Automatic insertion and removal of sample rods, automatic aperture control, etc. |
| High Sensitive Camera | The electron microscope is equipped with a highly sensitive CMOS camera, which can easily obtain high-quality images. |
| Thermal Emission Transmission Electron Microscope, 200KV, 800000x | |
| Accelerating Voltage | 200 kV, Factory Aligned at 80 kV and 200kV |
| Electron Source | Polycrystalline Tungsten or LaB6 Emitter |
| TEM Point Resolution | 0.23 nm |
| TEM Information Limit | 0.2 nm |
| Magnification | 20x to 800000x. |
| FEG Gun Vacuum | < 1x10-6Pa, |
| TEM Column Vacuum | <5x10-5Pa |
| Goniometer | Eccentric Goniometer 5-axis Motorized, |
| Camera | 20M Speed Enhanced Bottom Mounted CMOS Camera EMSIS XAROSA 5120x3840 |
| Stage | Compu Stage Double-tilt Holder |
| X ±1mm, Y ±1mm, Z ±0.35mm, α ±25°, β ±25° | |
| Upgradable | EDS Analysis |
| Warranty | Warranty One (1) Year. |
| Optional Accessories | |
| Installation | On-Site Installation & Operational Training Service Pack Optional |
| EDS | Bruker XFlash 7T30S |
