HeadTrinocular, 45° Tilt, Adjustable Pupillary Distance 52mm-76mm
-
EyepiecePL10X22mm
-
ObjectiveInfinity Plan Achromatic Objective Lens 4x,10x,40x,100x
-
NosepieceQuadruple (Blue Color Optional)
-
CondenserAbbe N A 1.25, With Iris Diaphragm
-
Working StageDouble Layer Mechanical Working Stage:175mmX145mm
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA12.3630
-
Document
-
Minimum Order Quantity1 pc
-
PriceNegotiation
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month

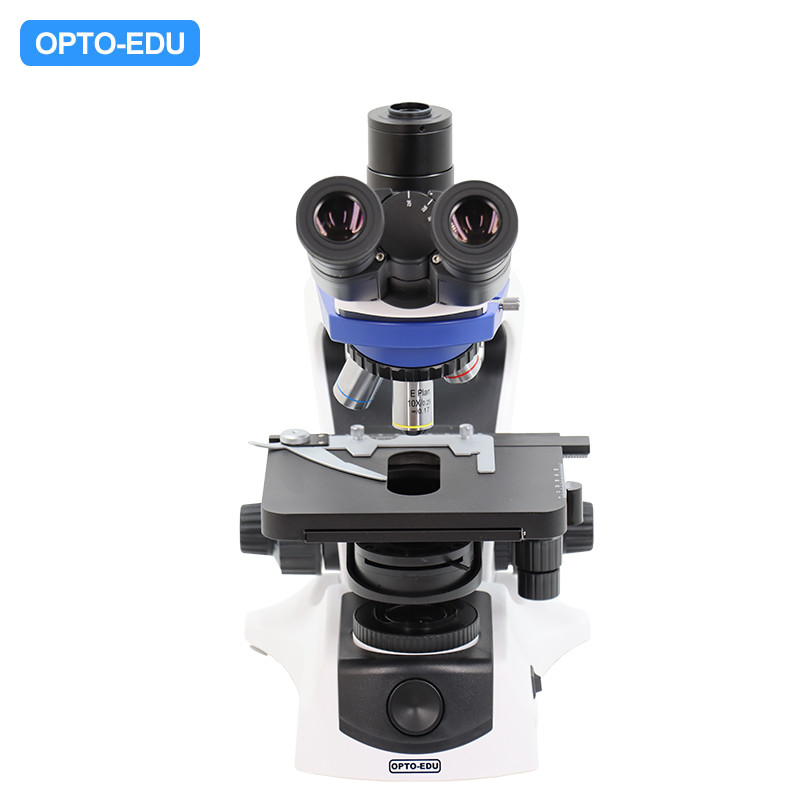

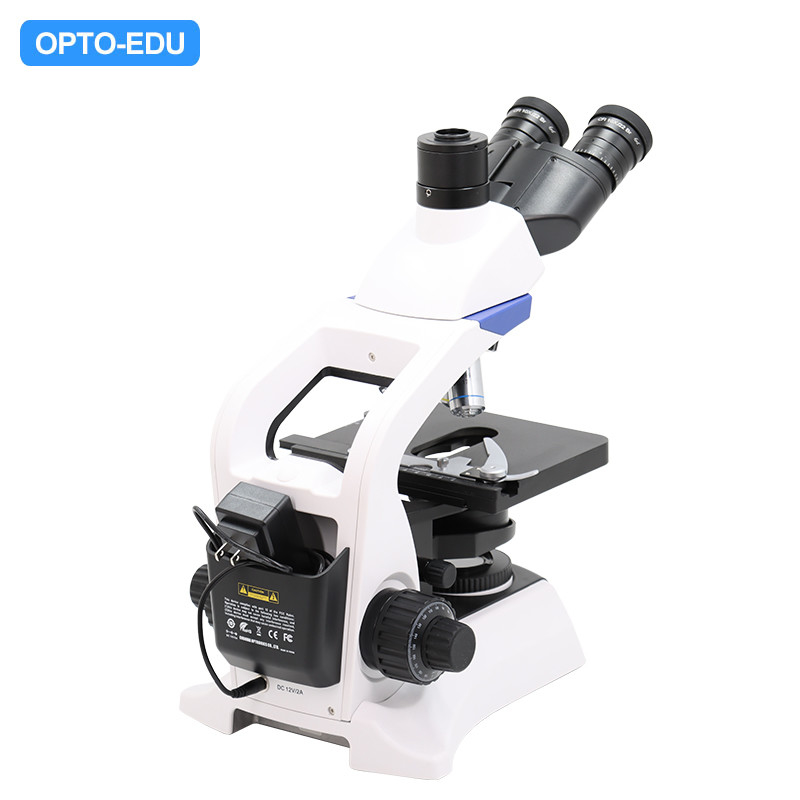

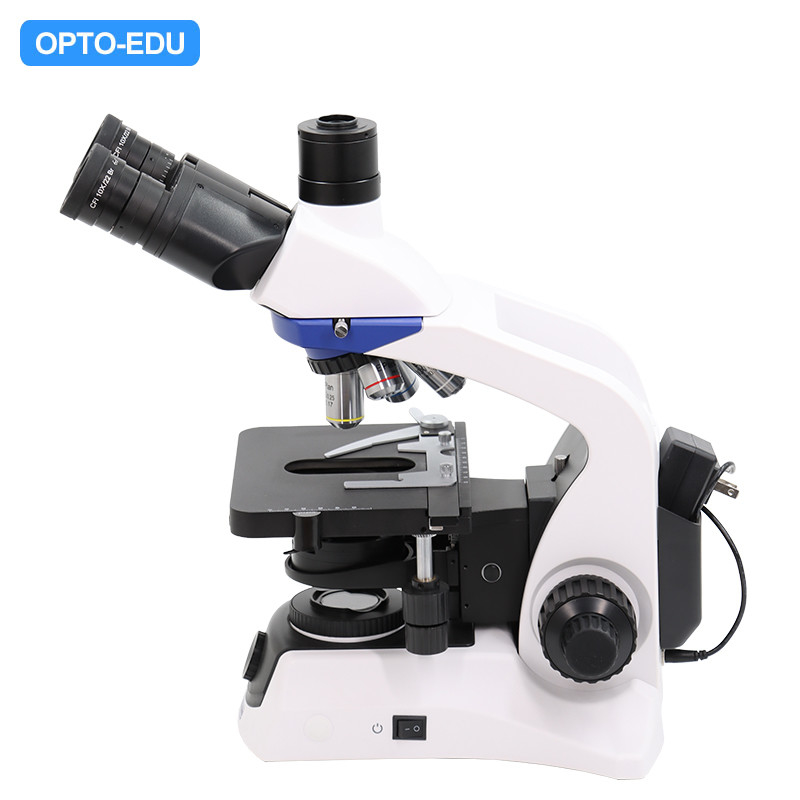

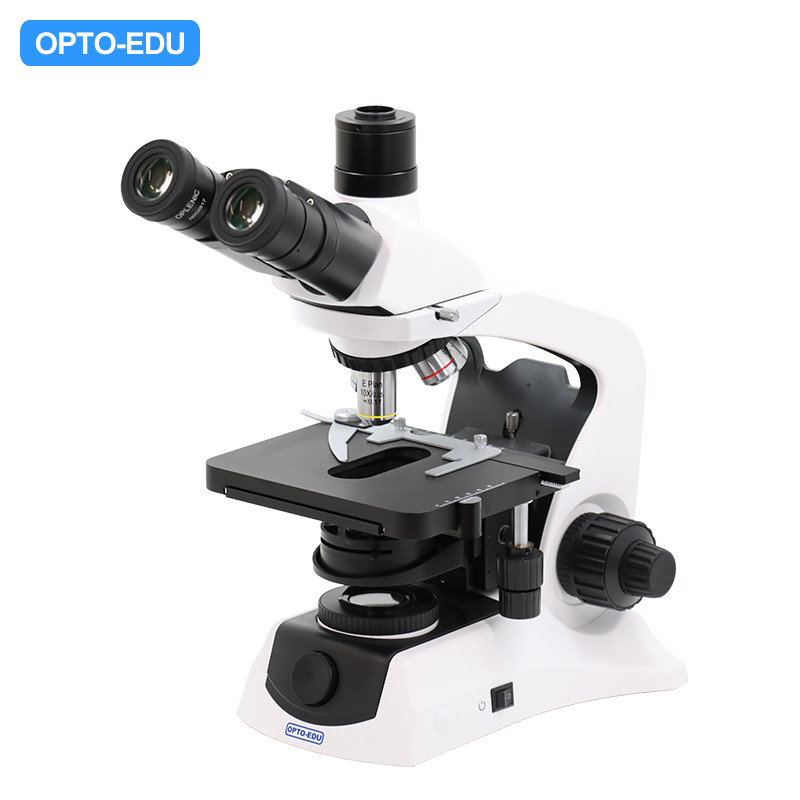

OPTO-EDU A12.3630 1000x Trinocular Biological Microscope
| A12.3630 Biological Microscope Specification | |
| Head | Trinocular, 45° Tilt, Adjustable Pupillary Distance 52mm-76mm |
| Eyepiece | PL10X22mm |
| Objective | Infinity Plan Achromatic Objective Lens 4x,10x,40x,100x |
| Nosepiece | Quadruple (Blue Color Optional) |
| Condenser | Abbe N A 1.25, With Iris Diaphragm |
| Working Stage | Double Layer Mechanical Working Stage:175mmX145mm, Moving Range:75mmX50mm |
| Focusing System | Coaxial Coarse & Fine Focusing, Fine Focusing Accuracy 0.02mm |
| lllumination | LED 3W, Brightness Adjustable |
| C-Mount | 0.4x |
| Ac Adapter | Input: AC100-240V 0utput: DC12V1A |
| Optional | 1.Eyepiece: WF20X |
| 2.Infinity Plan Achromatic 20x Objective | |
| 3.C-Mount:0.3x, 0.75x | |
| 4.Nosepiece: Quintuple, Blue Color | |
| 5.Condenser: Dark Field Condenser | |
| 6.Light Source: White + Yellow (Wavelength: 450-455μm) | |
| Model | Magnification | Numerical Aperture | Working Distance | Cover Slide Thickness | Parfocal Distance | Conjugate Distance |
| Factor | (N.A.) | WD(mm) | (mm) | (mm) | (mm) | |
| Infinity Achromatic Objective | 4x | 0.1 | 43.07 | — | 45 | ∞ |
| 10x | 0.25 | 6.78 | — | |||
| 20x | 0.4 | 2.67 | — | |||
| 40x | 0.65 | 0.65 | 0.17 | |||
| 60x | 0.85 | 0.3 | 0.17 | |||
| 100x(OIL) | 1.25 | 0.19 | 0.17 | |||
| Infinity Plan Achromatic Objective | 4x | 0.1 | 19.37 | — | 45 | ∞ |
| 10x | 0.25 | 15.86 | — | |||
| 20x | 0.4 | 1.04 | — | |||
| 40x | 0.65 | 0.67 | 0.17 | |||
| L-40x | 0.68 | 2.8 | 0.17 | |||
| 60x | 0.8 | 0.5 | 0.17 | |||
| 100x(OIL) | 1.25 | 0.25 | 0.17 |
