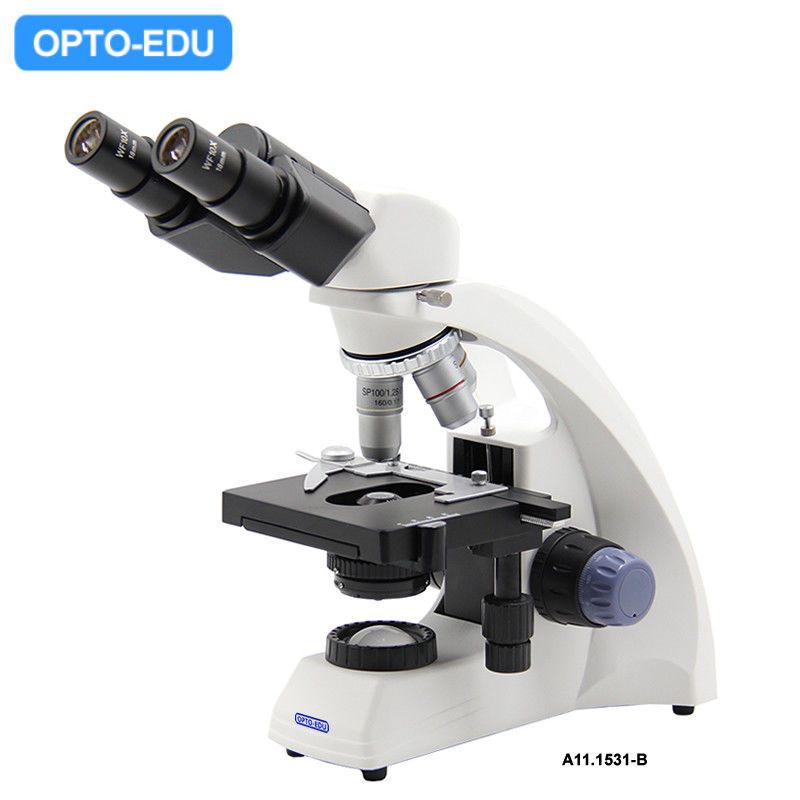

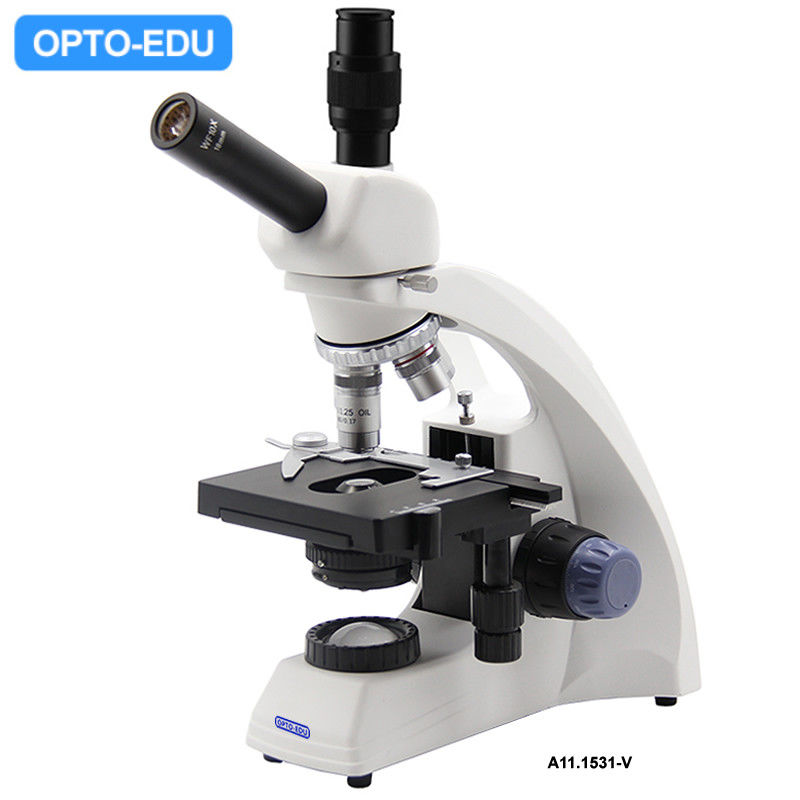

OPTO-EDU A11.1531 Low Cost 40X-2000X Available Biological Microscope For Student
Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.
A11.1531 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification. The built-in rechargeable batteries enable cordless operation.
A11.1531 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification. The built-in rechargeable batteries enable cordless operation.
| A11.1531 Student Biological Microscope | ||||
| Model | A11.1531-V | A11.1531-M | A11.1531-B | A11.1531-T |
| Optical System | Finity Optical System | |||
| Head | Teaching Head | Monocular Head | Binocular Head | Trinocular Head |
| Inclined at 30º, 360ºRotatable, Interpupillary Distance 54~75 mm, Diopter Adjustable ± 5 On Left Tube | ||||
| Eyepiece | Wide Field Eyepiece WF10X/18mm | |||
| Objective | Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | |||
| Nosepiece | Quadruple Nosepiece | |||
| Condenser | Abbe Condenser N.A. 1.25 With Iris Diaphragm And Filter Holder | |||
| Focusing System | Coaxial Coarse and Fine Adjustments, Fine Division 0.002mm, Coarse Stroke 36mm Supplied With An Adjustable Rack Stop To Prevent Damage To Sample And Objectives, The Coarse Adjustment Are Equipped With Friction Control | |||
| Stage | Double Layer Mechanical Stage 110X125mm, Moving Range 30X75mm | |||
| Illumination | 3W LED Brightness Adjustment Optional: Power By Battery Optional: Power By Rechargeable Battery With External 100-240V Mains Adapter |
|||
| Adapter | Eyepiece Tube Adapter | N/A | N/A | Eyepiece Tube Adapter |
| A11.1531 Biological Microscope Optional Accessories | ||
| Eyepiece | Wide Field Eyepiece WF16X/13mm | A51.1503-16 |
| Wide Field Eyepiece WF20X/11mm | A51.1503-20 | |
| Objective | Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil) | A52.1510 |
| CCD Adapter | 1.0X | A55.1530-10 |
| 0.5X | A55.1530-05 | |
Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.
OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
Our products are sold all over the world, you can rest assured.
