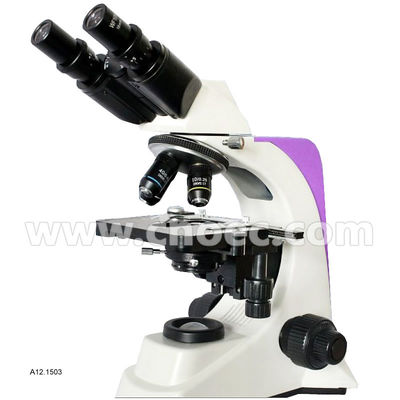

Binocular Laboratory Compound Microscope 40 - 1000x with 3W LED A12.1503

Binocular Laboratory Compound Microscope 40 - 1000x with 3W LED A12.1503

Products - Compound Optical Microscope
  • Highlight

    binocular compound microscope

    ,

    wide field microscope

  • Applications
    Laboratory
  • Certification
    CE
  • Drawtube
    Binocular
  • Illumination
    LED
  • Theory
    Biological Microscope
  • Optical System
    Finite, 160mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1503
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Binocular Laboratory Compound Microscope 40 - 1000x with 3W LED A12.1503

  • Binocular Laboratory Compound Microscope 40 - 1000x with 3W LED A12.1503
Get Price Contact Now

Binocular Laboratory Compound Microscope 40 - 1000x with 3W LED A12.1503





--Binocular And Trinocular Head Available, Interpupillary Distance 48~75mm
--Both Eyepiece Tube Diopter Adjustable
--Wide Field Eyepiece WF10X/18mm
--3W/LED







Specification
A12.1503-A
A12.1503-B
Optical System Finite, 160mm
Head Seidentopf Binocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, Seidentopf Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm,
Eyepiece WF10x/18mm
Objective

Achromatic objectives 4x,10x,40x & 100x (oil)
Nosepiece

Forward Quadruple Nosepiece
Focus System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke36mm
Stage

Double Layer Mechanical Stage 142x132mm Moving Range75x50mm,ow position and right hand controls, X-Y coaxial control knob
Condenser

Abbe N.A.1.25  with iris diaphragm
Light Source External Illumination, 3W/LED or 6V20W Halogen Lamp
Adapter
0.5x, C-Mount
A12.1503 Laboratory Microscope Optional Accessories

Item No.
Eyepiece

WF16

A51.1502-16









Binocular Laboratory Compound Microscope 40 - 1000x with 3W LED A12.1503 0
