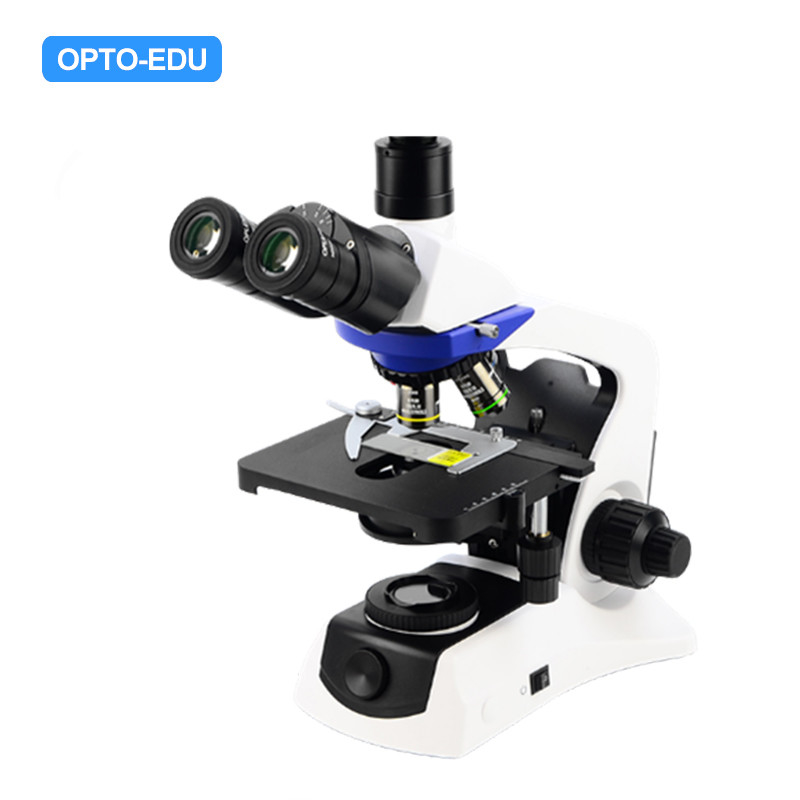

OPTO-EDU A12.2233 Infinity Trinocular Biological Laboratory Microscope
-
Highlight
OPTO-EDU Biological Laboratory Microscope
,Infinity Trinocular Biological Laboratory Microscope
,A12.2233 Biological Laboratory Microscope
-
HeadTrinocular
-
EyepieceWF10X/22
-
Nosepiece4 Holes Inwards Nosepiece
-
ObjectiveInfinity Plan Achromatic Objective: 4x、10x、40x、100x
-
Working StageDouble Layer Mechanical Plate, Moving Range: 76 Mm × 33 Mm
-
FocusingFocusing Range: 16mm，Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Fine Scale: 2μm
-
CondenserKohler Condenser With Center Adjustable Diaphragm ，N.A=0.1~1.1，Polarizing & Brightness Attachment Supported
-
IlluminationBuilt-in Transmit Kohler Illumination, LED
-
Place of OriginChina
-
Brand NameOPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA12.2233
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU A12.2233 Infinity Trinocular Biological Laboratory Microscope
| Item. | A12.2233 Laboratory Microscope Specification | Model.No | A12.2233 |
| Optical System | Infinity Plan Mutual Achromatic Optical System, Confocal: 45mm | ||
| Focusing System | Focusing Range: 16mm,Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Fine Scale: 2μm | ||
| Head | Seidentopf Trinocular 30°Head, Light Split:(50/50), Interpupillary:48-76mm, Dia.23.2mm；FN=22 | A53.2201-C33T | ● |
| Eyepiece | Wide Field Diopter Adjustable: -5~+5°,10X/FN=22mm,With Eyecup | A51.2201-1022 | ● |
| Nosepiece | 4 Holes Inwards Nosepiece | ● | |
| Objective | Infinity Plan Achromatic Biological Objective: 4x,10x,40x,100x | A51.2201 | ● |
| Infinity Semi-APO Biological Objective: 4x,10x,20x,40x,100x | ○ | ||
| Infinity Plan Achromatic Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ||
| Infinity Plan Semi-APO Metallurgical Objective: 5x,10x,20x,50x,100x | ○ | ||
| Working Stage | Double Layer Mechanical Plate, Moving Range: 76 mm × 33 mm | ● | |
| Condenser | Kohler Condenser With Center Adjustable Diaphragm ,N.A=0.1~1.1,Polarizing & Brightness Attachment Supported | ● | |
| Illumination System | Built-in White LED Illuminator, Lamp Life Time≥ 30,000 Hours,6500K Color Temperature | ● | |
| Reflect Illumination | |||
| Reflect Metallurgical Illuminator,LED White Light,Brightness Field Reflector,With Polarizing Slot | ○ | ||
| Reflect Fluorescent Illuminator,LED Fluorescent,Surpports DAPI/FITC/TxRED (Single Color, Double Color And Triple Color) | ○ | ||
| Transmit Illumination | |||
| Built-in Transmit Illumination System | ● | ||
| Video Adapter | 0.5X C-Mount,For 1/2”~ 1/1.8”Sensor | ● | |
| Camera | 16 Million Pixel CMOS Camera,7' LCD Screen, Wi-fi,HDMI,USB Output Supported | ● |
