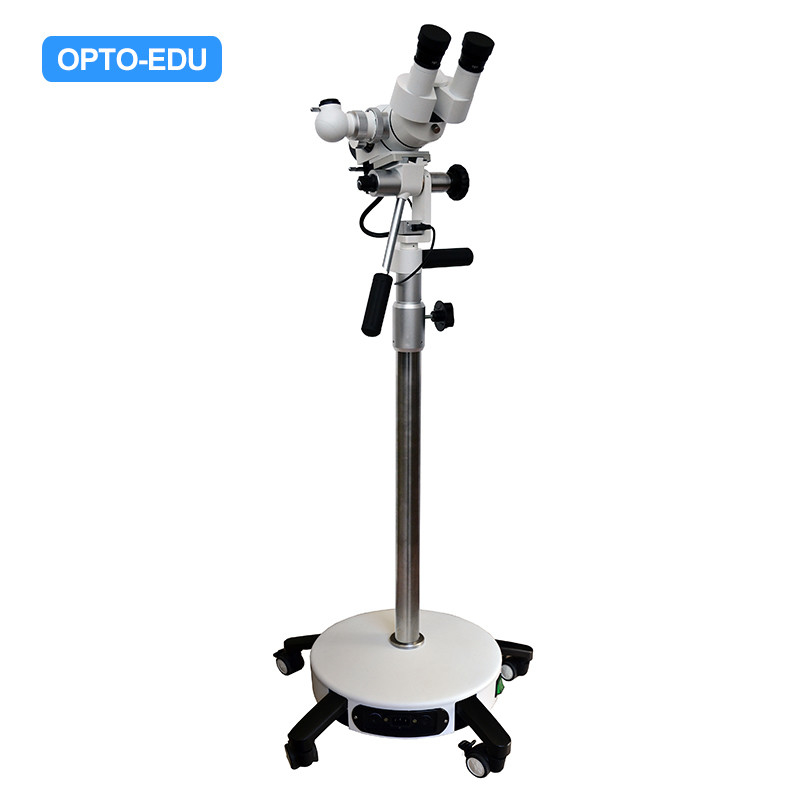

A43.1902 Video Colposcopie Step Zoom 0.4x 0.6x 1x 1.6x 2.5x Straight Stand
| Table Of Specification For A43.1901 & A43.1902 Series Colposcope | ||
| Item | A43.1901 | A43.1902 |
| Observation Angle | 45º Tilted Binocular Observation Unit | |
| Eyepiece | 16x | |
| Interpupillary Distance | 50mm-80mm | |
| Diopter | ±5D | |
| Objective Focal Length | F=300mm (M58x0.75mm) | |
| Magnification Changer | 5-step Magnification Change: 0.4x, 0.66x, 1x, 1.5x, 2.5x | |
| Total Magnification | 2.7x, 4.4x, 6.6x, 10x, 16.6x | |
| Linear Field | 90mm, 55mm, 37mm, 24mm, 15mm | |
| Beam Splitter | Included, 50:50 | |
| Video Camera Adapter | C-mount Included, For 1/3” Digital Camera | |
| Fine Focusing Distance | 20mm | 60mm |
| Illumination System | Coaxial Illumination, 10W LED, Brightness Adjustable, Illumination>30000lx | |
| Power Supply | Power Supply Input: AC110~240V, 50/60Hz, | |
| With Power Supply Adapter Output DC12V3A, 36W, | ||
| Power Cable Length 3m With Magnetic Ring, Output Connector: Coaxial 5.5x2.1mm Plug | ||
| Filter | Built-in Green And Blue Filters | |
| Floor Stand & Arm | Universal Stand, | Straight Vertical Stand, |
| Balancing Arm With Counterweight & Lock | No Balancing Arm, | |
| Short Column Fitted On Five-star Base With Casters | Long Column Height Adjustable Fitted On The 5-jaws Round Base With Casters | |
| Optional Accessories | Demonstrator, Camera (A59.4910, A59.4231), SLR Camera Adapter, Monitor, Objective (F=230mm & F=280mm) | |
| Table Of Optical Characteristics For A43.1901 & A43.1902 Series Colposcope (16X Eyepiece) | |||||||||||||||
| Focal Length Of Objective | F=300mm | F=230mm(Optional) | F=280mm(Optional) | ||||||||||||
| Magnification On Handwheel | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x |
| Total Magnification | 16.6x | 10x | 6.6x | 4.4x | 2.7x | 21.7x | 13.2x | 8.7x | 5.7x | 3.5x | 17.8x | 10.8x | 7.1x | 4.7x | 2.9x |
| Linear Field (mm) | 15 | 24 | 37 | 55 | 90 | 11 | 18 | 28 | 42 | 62 | 14 | 22 | 35 | 54 | 84 |
| Resolution (LP/mm) | 78 | 61 | 40 | 30 | 21 | 86 | 68 | 52 | 35 | 27 | 80 | 63 | 42 | 31 | 22 |
