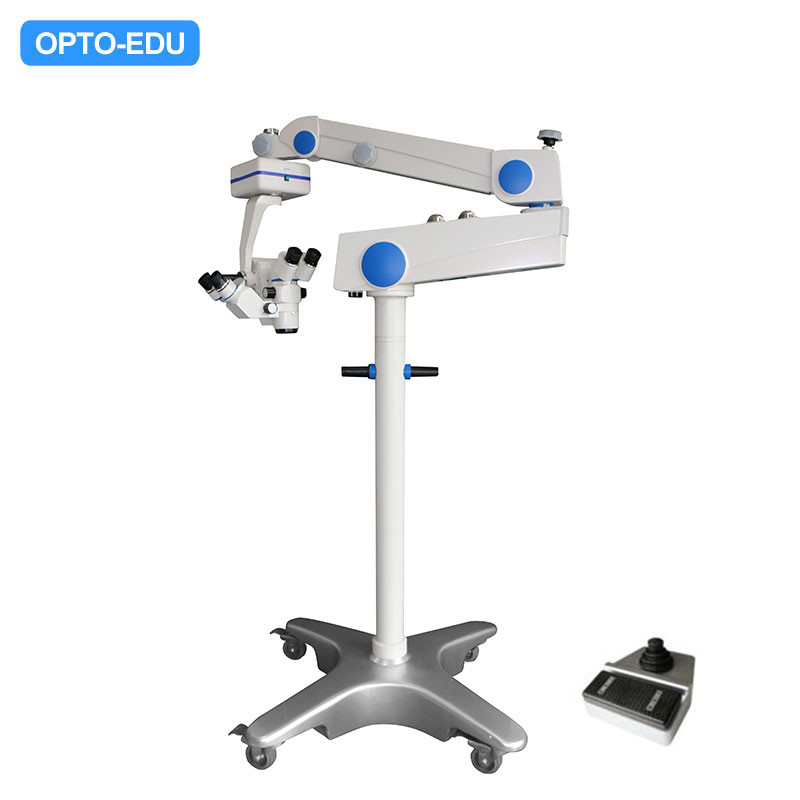

Manual Surgical Operating Microscope 3 Step 6x10x16x 6 Functions For Ophthalmology A41.1932
| A41.1931, A41.1932, A41.1935 Surgical Operation Microscope | |||
| A41.1931 Operating Microscope, is Best Choice for Ophthalmology Operation. It has two heads both inclined 45°, using fiber-optic cable for coaxial illumination up to 60000 lux, manual 3 steps zoom body, total magnification 6x,10x,16x, standard objective F=200mm, optional objectives F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm. Featured with 2 functions foot switch to control motorized Z focus, it is widely used in hospital for Ophthalmology. | |||
| A41.1932 is upgraded version, with 6 functions foot switch to control motorized X/Y move, Z focus. | |||
| A41.1935 is the highest model in this series, with motorized zoom 4.5x~27.3x objective, dual fiber halogen fiber light 100000 lux, 8 functions foot switch to control motorized X/Y move, Z focus & Zoom. | |||
| All 3 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer. | |||
| Features: | |||
| --Dual Head 90° Opposite, With Red Reflection & Macular Protector, For Ophthalmology | |||
| --Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, or Continuous Zoom 4.5x~27.3x | |||
| --Objective F=200mm, 2nd Objective F=125mm, Halogen Cold Light, Max Brightness 60000 Lux to 100000 Lux | |||
| --2 Functions, 6 Functions, 8 Functions Foot Switch, Control X/Y Movie, Z Focus, Zoom | |||
| --Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 800mm |
|||
| A41.1931 | A41.1932 | A41.1935 | |
| Main Usage | With Red Reflection & Macular Protector, For Ophthalmology | ||
| Eyepiece | WF12.5x | ||
| Head | Dual Heads For Two People Operation, Opposite In 90°, | ||
| Interpupillary Distance 55~75mm, Both Left & Right Eyetube Diopter Adjustable ±6D | |||
| Main Head | Inclined 45° | Inclined 45° | Inclined 30°~90° |
| Magnification | 3 Steps 6x, 10x, 16x | 3 Steps 6x, 10x, 16x | 4.5x~27.3x Continuous Zoom |
| View Field | Dia.34mm, 20mm, 13mm | Dia.34mm, 20mm, 13mm | Dia.44~7.7mm |
| Zoom Body | 1:6 Motorized Continuous Zoom, Parallel Light System | ||
| Assistant Head | Inclined 45° | ||
| Magnification | 3 Steps 6x, 10x, 16x | 3 Steps 6x, 10x, 16x | 3 Steps 6.5x, 10.8x, 17.3x |
| View Field | Dia.34mm, 20mm, 13mm | Dia.34mm, 20mm, 13mm | Dia.30.5mm, 18.3mm, 11.4mm |
| Main Objective | F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm | ||
| Assistant Obj. | F=125mm | ||
| Focus | Motorized Focus, Range +/-50mm, Speed 33s/Full Distance | ||
| Control | 2 Functions Foot Switch, | 6 Functions Foot Switch, | 8 Functions Foot Switch, |
| Control Z Focus | Control X/Y Move, Z Focus | Control X/Y Move, Z Focus, Zoom | |
| Stand | Four Wheels Moving Stand | ||
| --Max Extended Length 1100mm | |||
| --Max Rotatable Swing Angle of Arm 0~300° | |||
| --Distance Between Objective And Ground Surface 800mm~1250mm | |||
| Illumination | Optical Fiber Coaxial Halogen Cold Light, | Dual Optical Fiber Coaxial Halogen Cold Light, | |
| Light Spot Dia.50mm, Intensity 60000 Lux. | Light Spot Dia.50mm, Intensity 100000 Lux. | ||
| Packing | 3 Cartons Total G.W 104Kg, Volume 0.3462CBM | 4 Cartons Total G.W 165Kg Volume 0.45CBM | |
| Head: 595×460×230(mm)/14kg | Head:595×460×230(mm)/14KG | ||
| Body: 1180*535*230 (mm)/45kg | Body:890×650×265(mm)/41KG | ||
| Stand:775*775*230(mm)/45kg | Control:1025×260×300(mm)/32KG | ||
| Stand:890×865×200(mm)/78KG | |||
| A41.1932 Operating Microscope, Dual Head, Manual 3 Step, 6x10x16x, 6 Functions Foot Switch, For Ophthalmology A41.1932 operation microscope adopts high resolution and high definition optical system, strong stereo sense, large depth of field, cold light source single fiber coaxial lighting, bright field brightness, foot controlled auto fretting focus, manual four gear times, the same sight field of the same hand mirror, visual, television and video photography. Ophthalmology, Department of ENT and other microsurgery and teaching demonstration. ● Dual Head 90° Opposite, With Red Reflection & Macular Protector, For Ophthalmology ● Eyepiece 12.5x, 3 Steps Manual Zoom, Manification 6x10x16x, View Field Dia. 34,20,13mm ● Objective F=200mm, 2nd Objective F=125mm, Halogen Light, Max Brightness 60000Lux ● 6 Functions Foot Switch Control The Motorized Zoom+XY Move ● Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 800mm |
| Camera System Configure the wireless mouse operation, without the computer, free access to high definition images. The product interface is rich, HDMI and USB are synchronously output, high speed SD cards are photographed or recorded video. At the same time, it has the same screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification and other functions. It is widely used in video conferencing, telemedicine, micrograph, video projection and other fields. |
| Size | 138*50*170mm |
| Weight | 0.5kg |
| Storage And Operating Conditions | Temperature:+10℃ To +40℃ |
| Sterility | Sterilize Before Use |
| Materials | Surgical Grade Materials |
| Condenser Lens Assembly | Manual |
| Lens Positioning Unit | Rotational Assembly |
| Lenses | 130° |
| 90° | |
| Mounting Kits | Zeiss |
| Leica | |
| Topcon | |
| Takagi |
