One Head Surgical Operating Microscope 0-200° Manual Zoom 2.5x~21x Dental ENT A41.1925
| A41.1921, A41.1925 Surgical Operation Microscope | ||

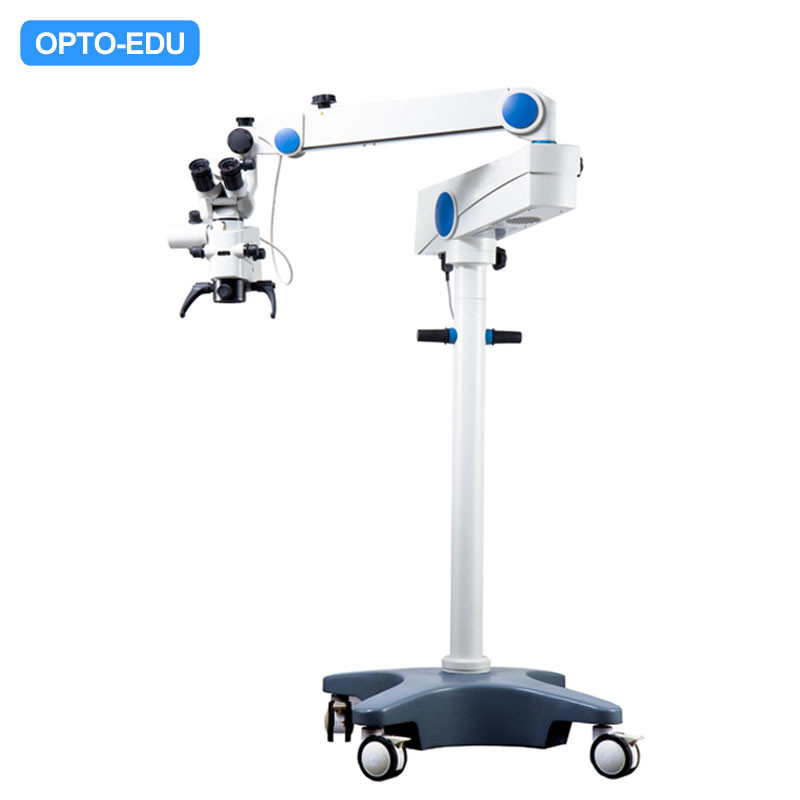

| A41.1921 Operating Microscope, is Best Choice for ENT, Dental Operation. It has one head which can tilt 0~200° freely, using fiber-optic cable for coaxial illumination up to 60000 lux, manual 6 steps zoom body, total magnification 2.7x, 4.5x,7.2x, 10.8x,18x, 27x, featured with objective F=250mm, optional objectives F=175mm, 200mm, 300mm, 350mm, 400mm, 450mm, and big zoom 180~300mm, and 200~500mm. it is widely used in hospital for Ear, Nose, Throat (ENT), and dental. | ||
| A41.1925 is upgraded version, with continuous zoom body 2.5x~21x, instead of 6 steps zoom. Using high resolution optical system, the microscope has three-dimensional sense of strong, large depth of field, LED cold light source and optical fiber coaxial illumination. | ||
| Both models can upgrade with optional assistant head, beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer. | ||
| Features: | ||
| --One Binocular Head, Tiltable 0~200°, Interpupillary 55-75mm, Diopter +/-6D | ||
| --Eyepiece 12.5x, 6 Steps Manual Zoom, Magnification 2.7x,4.5x,7.2x, 10.8x,18x,27x,12.6x, or Zoom 2.5x~21x | ||
| --Objective F=250mm, View Field Dia.74.1~7.4mm, Head X/Y Swing +/-45° | ||
| --LED Cold Light, Max Brightness 60000Lux, Light Spot Dia.80mm, With Blue/Yellow Filters | ||
| --Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 730mm |
||
| A41.1921 | A41.1925 | |
| Main Usage | Ear, Nose, Throat (ENT), Dental | |
| Head | Binocular Head 0°~200° Angle Adjustable, Interpupillary Distance 55~75mm By Knob, Swing X-Y Direction +/-45° | |
| Diopter | Both Left & Right Eyetube Diopter Adjustable ±6D | |
| Eyepiece | WF12.5x | |
| Zoom Body | 1:6 Manual Continuous Zoom, Parallel Light System | |
| Objective | F=250mm, Optional F=175mm, 200mm, 300mm, 350mm, 400mm, 450mm, 180~300mm, 200~500mm | |
| Magnification | 6 Steps 2.7x,4.5x,7.2x,10.8x,18x,27x | 2.5x~21x Continuous Zoom |
| View Field | Dia.74.1, 44.5, 27.8,18.5, 11.1, 7.4mm | Dia.78.6~9mm |
| Focusing | Manual Focus | |
| Stand | Four Wheels Moving Stand | |
| --Max Extended Length 1100mm | ||
| --Max Rotatable Swing Angle of Arm 0~300° | ||
| --Distance Between Objective And Ground Surface 730mm~1250mm | ||
| Illumination | Optical Fiber Coaxial LED Cold Light Illumination, Light Spot Dia.80mm, Intensity 60000 Lux, Built-in Small-spot, Blue & Yellow Filters. | |
| Packing | 3 Cartons Total G.W 111Kg, Volume 0.381CBM | |
| Head: 595×460×230(mm)/11kg | ||
| Body: 1200*545*250 (mm)/32kg | ||
| Stand:785*785*250(mm)/68kg | ||
| A41.1925 Operating Microscope, One Head 0-200°, Manual Zoom, 2.5x~21x, For Dental, ENT ● One Binocular Head, Tiltable 0~200°, Interpupillary 55-75mm, Diopter +/-6D ● Manual Continuous Zoom 1:6, Magnification 2.5x~21x, Beam Splitter Optional ● Objective F=250mm, View Field Dia.78.6~9mmmm, Head X/Y Swing +/-45° ● LED Cold Light, Max Brightness 60000Lux, Light Spot Dia.80mm, With Blue/Yellow Filters ● Four Wheels Stand Swing Angle of Carry Arm 0~300°Objective to Floor Height 730mm |
| Camera System Configure the wireless mouse operation, without the computer, free access to high definition images. The product interface is rich, HDMI and USB are synchronously output, high speed SD cards are photographed or recorded video. At the same time, it has the same screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification and other functions. It is widely used in video conferencing, telemedicine, micrograph, video projection and other fields. |
