Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950

  • High Light

    dual head neurosurgery operating microscope

    ,

    3x neurosurgery operating microscope

    ,

    dual head ent operating microscope

  • Main Usage
    Neurosurgery, Brain Surgery, ENT
  • Adapter
    Beam Splitter Included, 2 Ports, For Assistant Head And C-Mount
  • Diopter
    Both Left & Right Eyetube Diopter Adjustable ±6D
  • Eyepiece
    WF12.5x
  • Zoom Body
    Motorized Continues Zoom 1:6, Parallel Light System
  • Objective
    F=300mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A41.1950
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950

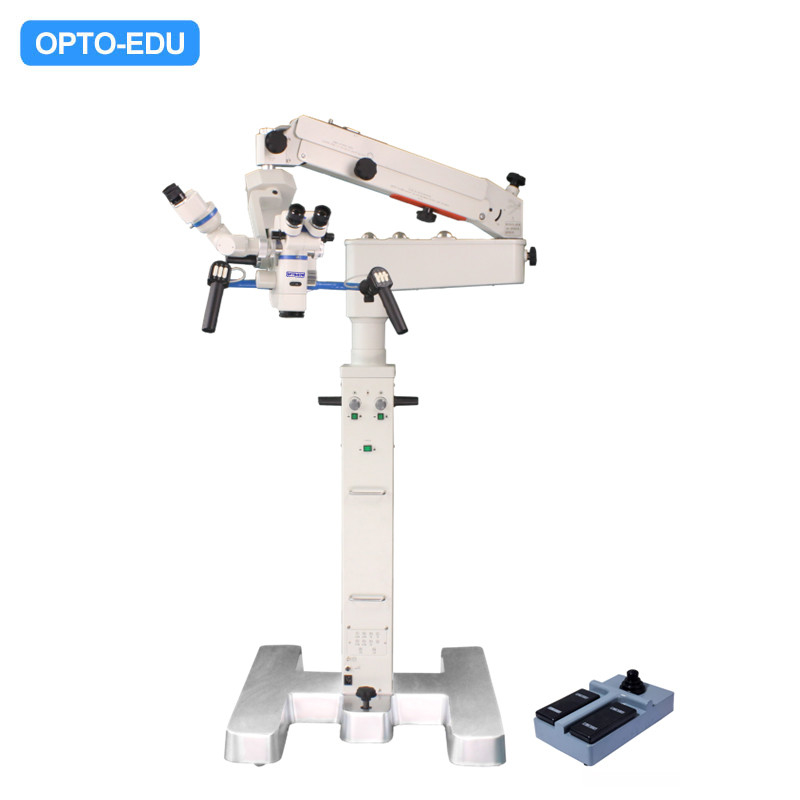

A41.1950 Operating Microscope, is Best Choice for Neurosurgery, Brain Surgery Operation. It has one main head and one assistant head which can rotate 360° freely, using fiber-optic cable for coaxial illumination up to 10000 lux, 1:6 Zoom Body, has total magnification 3x~16x, featured with Motorized Focusing, and 8 Functions foot switch or control handle, it is widely used in hospital for Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy and etc.

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 0

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 1
A41.1950 Operating Microscope, is Best Choice for Neurosurgery, Brain Surgery Operation. It has one main head and one assistant head which can rotate 360° freely, using fiber-optic cable for coaxial illumination up to 10000 lux, 1:6 Zoom Body, has total magnification 3x~16x, featured with Motorized Focusing, and 8 Functions foot switch or control handle, it is widely used in hospital for Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy and etc.

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 2
Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 3

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 4
Aspheric Lighting Technology, Better Light Gathering Effect
The spherical illumination can not refract the light to the same surface, and cause the light to be more dispersed on the surface. The aspheric technology can increase the concentration effect and improve the brightness.
Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 5

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 6

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 7

Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 8
A41.1950 Camera System
Configure the wireless mouse operation, without the computer, free access to high definition images. The product interface is rich, HDMI and USB are synchronously output, high speed SD cards are photographed or recorded video. At the same time, it has the same screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification and other functions. It is widely used in video conferencing, telemedicine, micrograph, video projection and other fields.
Dual Head Neurosurgery Operating Microscope Motor Zoom 3x-16x 8 Function Foot Handle A41.1950 9
A41.1950, A41.1951, A41.1952 Surgical Operation Microscope
A41.1950 Operating Microscope, is Best Choice for Neurosurgery, Brain Surgery Operation. It has one main head and one assistant head which can rotate 360° freely, using fiber-optic cable for coaxial illumination up to 100000 lux, 1:6 Zoom Body, has total magnification 3x~16x, objective F=300mm or 250mm,  featured with Motorized Focusing, and 8 Functions foot switch or control handle, it is widely used in hospital for Neurosurgery, Brain Surgery, Spinal, Vascular operation, it can also used for Orthopedics, Hand, Chest, Burn And Plastic Surgery, or Dental, ENT, Andrology, Genitourinary, Animal Anatomy etc.
A41.1951 is the upgraded version, with built-in CCD camera & software, zoom objective F=200~450mm, 12 functions handle, and dual optical fiber LED + Halogen 100000 Lux light source.
A41.1952 is the highest model in this series, built-in 2 sets Xenon 300W Light, magnetic lock, and 10 functions handle, it can meet most of surgery operation work with best quality & control.
Features:
--Best Choice For Neurosurgery, Brain Surgery, Dental, ENT Operation Microscope
--Dual Head Binocular, Eyepiece 12.5x, Motorized Continuous 1:6 Zoom 3x~16x
--Main Binocular Variable Angle 30-90°, Assistant's Binocular 30° Can Swing 90° or 270°
--8,10,12 Functions Foot or Handle Control For Zoom, Auto Focus, X-Y Moving, Photo/Video Taking, etc.
--Dual Optical Fiber Coaxial Halogen, LED or Xenon Light 100000 lux, Stand Max Extend Range 1250mm
  A41.1950 A41.1951 A41.1952
Main Usage For Neurosurgery, Brain Surgery, Spinal, Vascular
Eyepiece WF12.5x
Head Dual Heads For Two People Operation, Assistant Binocular Can Swing 90° to 270° Against Main Head
Motorized Swing Head In X Direction +/-45°, In Y Direction +90°, Can Stop At Any Angle
Interpupillary Distance 55~75mm, Both Left & Right Eyetube Diopter Adjustable ±6D
Main Head Inclined 30°~90° Inclined 0°~200° Inclined 0°~200°
Magnification 3x~16x Continuous Zoom 1.8x~21x Continuous Zoom 1.8x~19x Continuous Zoom
View Field Dia.74~12mm Dia.13~110mm Dia.12~113mm
Zoom Body 1:6 Motorized Continuous Zoom, Parallel Light System
Assistant Head Inclined 0°
Magnification 3x~16x Continuous Zoom 3x~16x Continuous Zoom 3x~16x Continuous Zoom
View Field Dia.74~12mm Dia.74~12mm Dia.94~13mm
Main Objective F=300mm F=200~450mm F=200~500mm
Assistant Obj. F=180mm
Focus Motorized Focus, +/-25mm Motorized Focus 200~450mm Motorized Focus 200~500mm
Control Switch 8 Functions Handle or Foot 12 Functions Handle  10 Functions Handle
X/Y Moving X/Y Moving Z Focusing
Z Focusing Z Focusing Zoom
Zoom Zoom Magnetic Lock
  Take Photo/Video Take Photo/Video
  Review Photo/Video Review Photo/Video
  Auto Focus Auto Focus
  Brightness Adjust Brightness Adjust
Filter Yellow Filter, Green Filter, Small Spot
Camera Built-in Digital Camera, With Software, Auto Focus Function
Stand Four Wheels Moving Stand Four Wheels Moving Stand
--Max Extended Length 1200mm --Max Extended Length 1715mm
--Max Rotatable Swing Angle of Arm 0~300° --Max Rotatable Swing Angle of Arm 0~300°
--Height From Objective to Floor 800~1250mm --Height From Objective to Floor 690~1452mm
Lock Mechanical Lock Electro Magnetic Lock
Illumination Dual Optical Fiber Coaxial Dual Optical Fiber Coaxial Dual Optical Fiber Coaxial
2 Halogen Cold Light,  LED + Halogen Cold Light, Built-in 2 Sets Xenon 300W,
Light Spot Dia.50mm, Light Spot Dia.50mm, Light Spot Dia.50mm,
Intensity 100000 Lux. Intensity 100000 Lux. Intensity 100000 Lux.
Camera & LCD None Built-in Camera & Software Built-in Camera & Software, LCD Monitor
Packing 4 Cartons Total G.W 165Kg Volume 0.45CBM 4 Cartons Total G.W 215Kg Volume 0.45CBM
Head:595×460×230(mm)/14KG Head:595×460×230(mm)/14KG
Body:890×650×265(mm)/41KG Body:890×650×265(mm)/41KG
Control:1025×260×300(mm)/32KG Control:1025×260×300(mm)/32KG
Stand:890×865×200(mm)/78KG Stand:890×865×200(mm)/128KG
