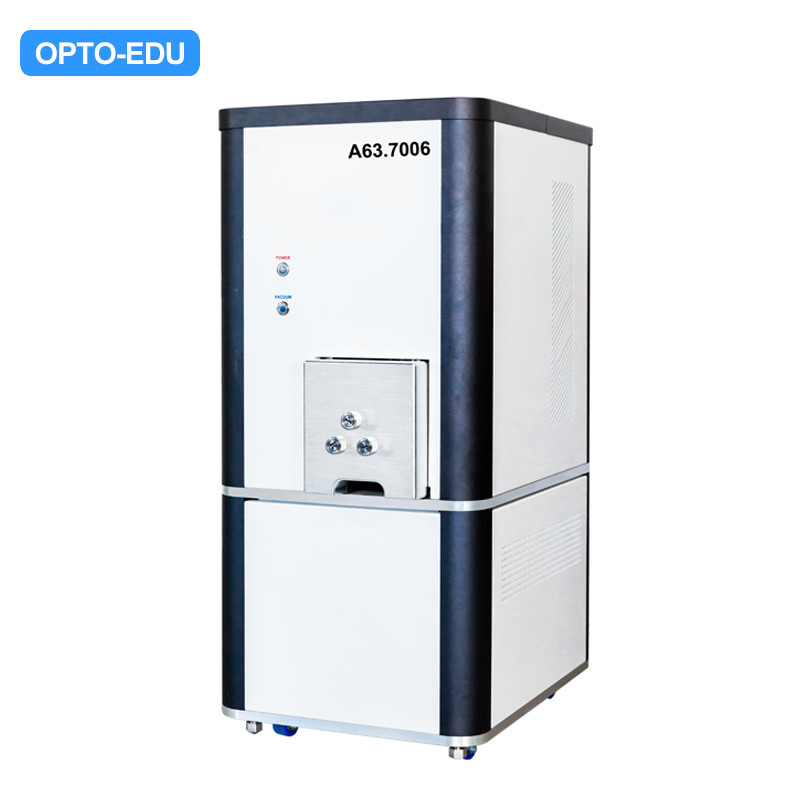

A63.7006 Sem Scanning Electron Microscope 20x~60000x

A63.7006 Sem Scanning Electron Microscope 20x~60000x

Products - Scanning Microscope
  • Highlight

    60000x sem scanning electron microscope

    ,

    opto edu sem scanning electron microscope

  • Resolution
    15nm@30KV(SE)
  • Magnification
    20x~60000x
  • Electron Gun
    Pre-Centered Tungsten Filament Cartridge, Bias Voltage Auto System
  • Voltage
    "Accelerating Voltage 1KV To 30KV, 1KV/5KV/10KV/15KV/20KV/30KV-6 Steps
  • Lens System
    "2-Stage Electromagnetic Condenser Lens, 1-Stage Electromagnetic Objective Lens"
  • Max Specimen
    70mm In Diameter, 30mm In Height
  • Image Shift
    X, Y Image Shift ±150um
  • Image Format
    BMP, JPEG, PNG, TIFF
  • Auto Function
    Auto Start, Auto Focus, Auto Brightness/Contrast
  • Photo Display
    Magnification, Detector Type, Accelerating Voltage, Vacuum Mode, Logo(Text), Date & Time, Text Marker, Scale Bar, Etc.
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A63.7006
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~100000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T,West Union,Paypal
  • Supply Ability
    5000 pcs/ Month

A63.7006 Sem Scanning Electron Microscope 20x~60000x

  • A63.7006 Sem Scanning Electron Microscope 20x~60000x
Get Price Contact Now

Tungsten Filament Scanning Electron Microscope, SE, 20x~60000x

  • 20x~60000x Resolution 15nm With Detector SE, Optional BSE, EDS, CCD
  • Standard X/Y/R 3 Axes Working Stage, Optional Five Axes Working Stage X/Y/Z/R/T
  • 2-Stage Electromagnetic Condenser Lens, 1-Stage Electromagnetic Objective Lens
  • Vaccum System: 1 Turbo Molecular Pump+ 1 Mechanical Rotary Pump
  • Auto Start, Auto Focus, Auto Brightness, Contrast Adjust

A63.7006 Sem Scanning Electron Microscope 20x~60000x 0
A63.7006 Sem Scanning Electron Microscope 20x~60000x 1
A63.7006 Sem Scanning Electron Microscope 20x~60000x 2
A63.7006 Sem Scanning Electron Microscope 20x~60000x 3
A63.7006 Sem Scanning Electron Microscope 20x~60000x 4
A63.7006 Sem Scanning Electron Microscope 20x~60000x 5
A63.7006 Sem Scanning Electron Microscope 20x~60000x 6
A63.7006 Sem Scanning Electron Microscope 20x~60000x 7
A63.7006 Sem Scanning Electron Microscope 20x~60000x 8
A63.7006 Sem Scanning Electron Microscope 20x~60000x 9
A63.7006 Sem Scanning Electron Microscope 20x~60000x 10
A63.7006 Sem Scanning Electron Microscope 20x~60000x 11

Tungsten Filament Scanning Electron Microscope (SEM)
　 A63.7006 A63.7015
Resolution 15nm@30KV(SE) 5nm@30KV(BSE)
Magnification 20x~60000x 20x~150000x
Electron Gun Pre-Centered Tungsten Filament Cartridge, Bias Voltage Auto System
Voltage Accelerating Voltage 1KV to 30KV,
1KV/5KV/10KV/15KV/20KV/30KV-6 Steps
Lens System 2-Stage Electromagnetic Condenser Lens,
1-Stage Electromagnetic Objective Lens
Aperture - Adjustable Iris Diaphragm 30/50/50/100um, Change Electro Beam To Get High Resolution Image
Vacuum System Rotary Pump, 100Liters/min
Turbo Molecular Pump, 70Liters/sec
Pump Down Ttime <3 Minutes
Fully Auto Vacuum Control
Detector SE: Secondary Electron Detector
BSE: Back Scattering Detector (Optional)
EDS: (Optional)
Specimen Working Stage 3 axis System,X, Y-axis : 35mm / R-axis : 360° 5-axis System , X, Y-axis : 35mm / R-axis : 360°, Z : 0~22mm / Tilt-axis : 0~45°
Max Specimen 70mm in Diameter, 30mm in Height 80mm in Diameter, 35mm in Height
Image Shift X, Y Image Shift ±150um
Image Scanning System Fast Scan: 320x240 (Scan Time: 0.1 sec.)
Slow Scan: 640x480 (Scan Time: 3 sec.)
Photo Mode 1: 1280x960
Photo Mode 2: 2560x1920
Photo Mode 3: 5120x3840
Image Format BMP, JPEG, PNG, TIFF
Auto Function Auto Start, Auto Focus, Auto Brightness/Contrast
Photo Display Magnification, Detector type, Accelerating Voltage, Vacuum mode, Logo(Text), Date & Time, Text Marker, Scale Bar, etc.
Computer & Software PC Work Station Win 10 System, With Professional Image Analysis Software To Fully Control Whole SEM Microscope Operation, Computer Specification No Less Than Inter I5 3.2GHz, 4G Memory, 24" IPS LCD Monitor, 500G Hard Disk, Mouse, Keyboard
Size & Weight Microscope Body 460x600x950mm, Total Weight 95Kg
A63.7006, A63.7015 Standard Tools & Parts Outfit
1 Pre Centered Tungsten Filament 3 pcs/box
2 Sample Stage Dia. 15mm 5 pcs
3 Sample Stage Dia. 25mm 5 pcs
4 Sample Stage Dia. 15mm 45° Tilt 3 pcs
5 Sample Stage Dia. 15mm 90° Tilt 3 pcs
6 Height Standard Master 1 pc
7 Allen Wrench 1 set
8 SEM Software CD 1 pc
9 Carbon Conductive Tape) 1 pc
10 Scissors 1 pc
11 Aurilave 1 pc
12 Tweezers 1 pc
