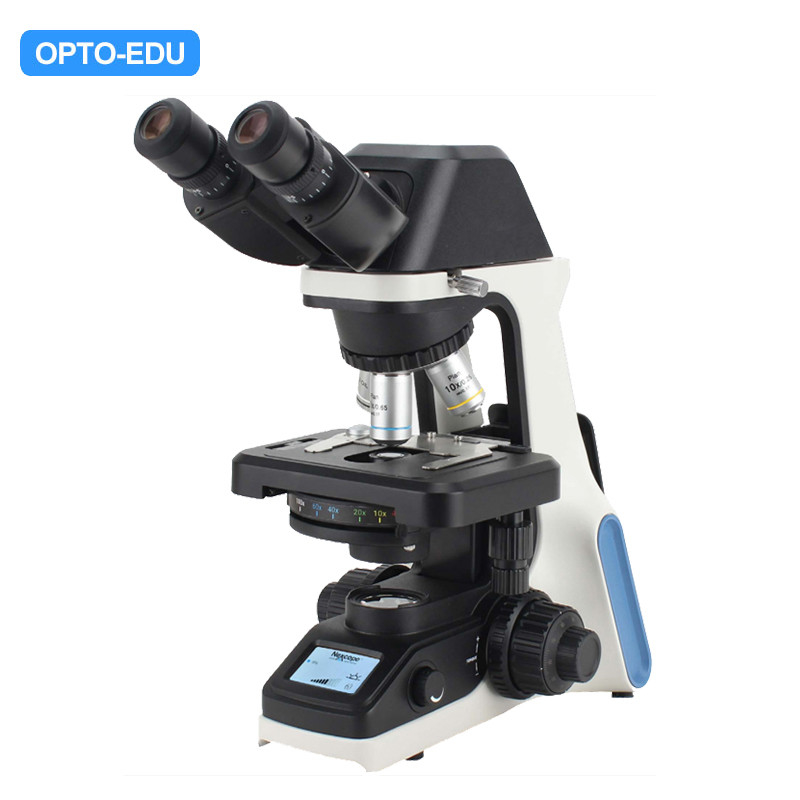

| A12.1030 Laboratory Microscope, Coded Nosepiece & LCD ● Brand New 2022 Compact High Level School Biological Microscope ● Coded Nosepiece & LCD Screen For Magnification & Brightness Display ● Brightness Memory, Color Temperature Adjust, Auto Power Off (ECO) ● PL10x/20mm Eyepiece, NIS Series Infinity Plan Objective 4x10x40x100x, ● N .A.1.25 Abbe Condenser With Color Objective Position Scales A12.1030 is the latest biological microscope for high-level schools to be launched in 2022. It has a compact and stable structure. The four hole coded nosepiece, together with the base LCD screen, can provide such advanced functions as magnification display, brightness memory, auto power off (ECO). A12.1030's high-quality NIS series flat field achromatic objective lens and 20mm wide field objective lens can provide high-definition true color microscopic imaging. In addition to binocular and trinocular, there is also an integrated digital head, which is especially suitable for the use of micro digital interactive classrooms. It is the best choice for schools to upgrade microscopes! |
| Wide Field Of View 20mm High eyepoint wide field eyepiece EW10x/20mm supplied 20% more view range than normal WF10x/18mm, with both eyepiece tube diopter adjustable +/-5°makes everybody watch clearly & comfortable. |
| NIS Series Plan Achromatic Objective NIS series plan achromatic objective provide excellent chromatic aberration correction capabilities and flatness of field of view. High numerical aperture and long working distance, High imaging definition and wide- range application. Restore the true color and realize accurate observation for samples. |
| Condenser N.A.1.25 Abbe Condenser With Color Objective Position Scales |
| No Rack Fillet Working Stage Rectangular Mechanical Stage 180x130mm, With Specimen Holder, With Vernier Calibration, Moving Range 74x30mm |
| Smart LCD & Coded Nosepiece A12.1030 has coded nosepiece, work with smart LCD, user can adjust & show magnification, light source brightness and color temperature, further more, user can lock the certain brightness for each objective, or set Auto Power Off countdown timer from 5 minutes to 8 hours (Advanced ECO). |
| Comfortable And Safe Focus Knob Low position focus knob design, equipped with a stopper that can be used to set the upper limit of the stage height, the stage stops at the set height even when the focus knob is turned, thereby eliminating the risk of over-focusing and breaking the slides or damaging the objectives. |
| Carrying Handle And Hub Device Equipped with a special carrying handle and lightweight, stable, and stable in structure. The back of microscope is designed with a hub device to accommodate long power cords effectively, reducing the power cord trip accident during the process of transport. Small size could minimize storage space. |
| A12.1030 Biological Microscope | A12.1030 | A12.1030 | A31.1030 | Cata. No. | |
| -B | -T | ||||
| Head | Seidentopf Binocular Head, | ● | |||
| 30° Inclined, 360°Rotatable, Interpupillary Distance 47-78mm, Dual Diopter Adjustable | |||||
| Seidentopf Trinocular Head, | ● | ||||
| 30°Inclined, 360°Rotatable, Interpupillary Distance 47-78mm, Dual Diopter Adjustable, Splitting Ratio of Eyepiece/Camera E:100/P0, 0/100 | |||||
| 8.0M Digital Camera Built-in Binocular Head, | ● | ||||
| 30° Inclined, 360°Rotatable, Interpupillary Distance 47-78mm, Dual Diopter Adjustable, Splitting Ratio of Eyepiece/Camera E:100/P0, 0/100 | |||||
| Eyepiece | Plan Eyepiece EW10x/20mm | ● | ● | ● | A51.1002-1020 |
| Plan Eyepiece WF15x/16mm | O | O | O | A51.1002-1516 | |
| Plan Eyepiece WF20x/9.5mm | O | O | O | A51.1002-20 | |
| Nosepiece | Coded Quadruple Nosepiece, Support Objective Display, Brightness Memory Function | ● | ● | ● | |
| Objective | Infinity Plan NIS45 Objectives, Anti-Fungus Treatment | ||||
| 4x, NA 0.1, WD: 28mm | ● | ● | ● | A52.1030-4 | |
| 10x, NA 0.25, WD: 7.4mm | ● | ● | ● | A52.1030-10 | |
| 20x, NA 0.40, WD: 6.2mm | O | O | O | A52.1030-20 | |
| 40x, NA 0.65, WD: 0.7mm | ● | ● | ● | A52.1030-40 | |
| 60x, NA 0.80, WD: 0.14mm | O | O | O | A52.1030-60 | |
| 100x, NA 1.25, WD: 0.14mm, Spring, Oil | ● | ● | ● | A52.1030-100 | |
| Working Stage | Rectangular Mechanical Stage 180x130mm, With Specimen Holder, With Vernier Calibration, Moving Range 74x30mm | ● | ● | ● | |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Upper Limit Ring, Coarse Stroke 37.7mm Per Rotation, Fine Division 0.002mm, Fine Stroke 0.2mm Per Rotation, Coarse Focusing Range 25mm | ● | ● | ● | |
| Condenser | Abbe NA1.25, With Colorful Remark For Correct Iris Diaphragm of Each Objective | ● | ● | ● | |
| Light Source | Built-in 3W LED Illumination, Brightness Adjustable | ● | ● | ● | |
| Smart LCD Screen | LCD Screen In Front Of Base, Working With Coded Nosepiece, Supply Advanced Function: | ● | ● | ● | |
| •Real Time Objective & Brightness Display, | |||||
| •Brightness Memory, | |||||
| •Color Temperature Adjust, | |||||
| •Auto Power Off (ECO) | |||||
| ECO | Auto Power Off Countdown Timer From 5 Minutes to 8 Hours (Advanced ECO). | ● | ● | ● | |
| Adapter | 0.5x C-Mount | ● | |||
| Size | 220(W)x290(D)x472(H), mm | ● | ● | ● | |
| Packing | 470*320*590mm, G.W.12.1Kg, N.W.8Kg | ● | ● | ● | |
| Note: "●"In Table Is Standard Outfits | |||||
