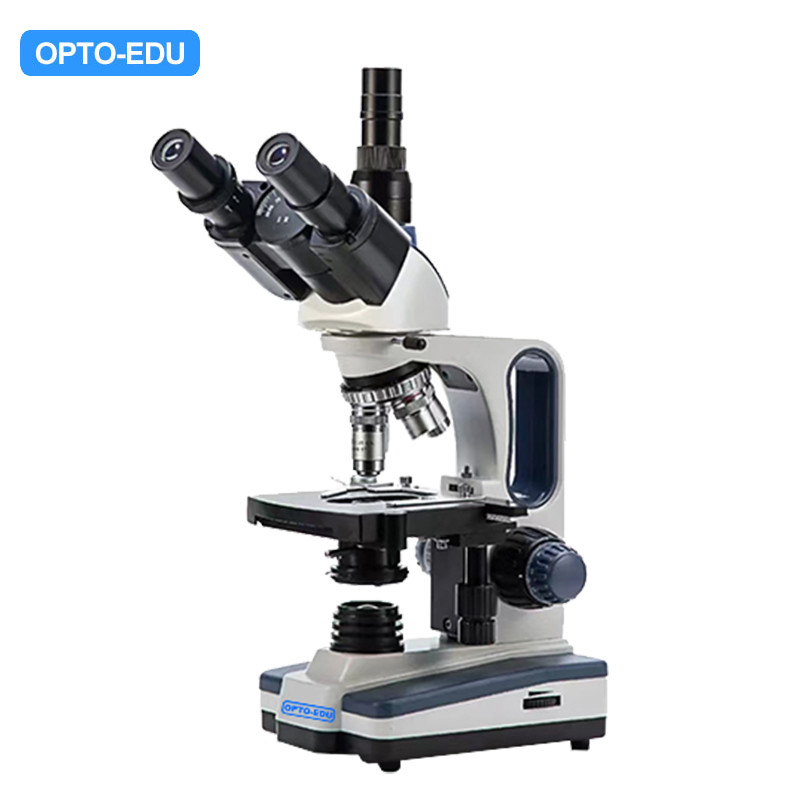

2022 Newly Design Outlook Student Microscope
Binocular & Trinocular Sedentopf Head 30° Inclinded 360° Rotatable
High Quality Achromatic Optical System With 4x10x40x100x Objectives
Double Layers Mechanical Working Stage 130x130mm Moving 70x30mm
LED Illumination Brightness Adjustable With Abbe Condenser N.A.1.25
| A11.1170 A11.1171 Biological Microscope | A11.1170-B | TA11.1170-T | |
| A11.1171- B | A11.1171- T | ||
| Head | Seidentopf Binocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm | ● | |
| Seidentopf Trinocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm, With Digital Eyepiece Adapter | ● | ||
| Eyepiece | Wide Field WF10x, WF25x | ● | ● |
| Nosepiece | Quadruple Nosepiece | ● | ● |
| Objective | Achromatic Objective | ● | ● |
| 4x/0.1, W.D.=25mm | |||
| 10x/0.25, W.D.=11mm | |||
| 40x/0.6(S), W.D.=3.8mm | |||
| 100x/1.25(S,Oil), W.D.=0.1mm | |||
| Stage | Double Layer Mechanical Stage, 130x130mm | ● | ● |
| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit | ● | ● |
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder | ● | ● |
| Light Source | Built-in Illumination LED, Brightness Adjustable | ● | ● |
| Note: "●"In Table Is Standard Outfits | |||
