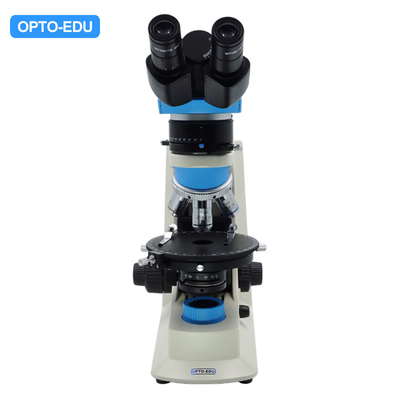

Polarizing Microscope, Transmit, Binocular

• Transmit 5W LED Illumination + Center Adjustable Quadruple Nosepiece
• Non-Stress Infinity Plan Objective 4x,10x,20x,40x,60x,100x Optional
• Non-Stress Abbe N.A.1.25 Condenser, Center Adjustable With Polarizer Lens In Bottom
• Round Stage Diameter Dia.142mm, Can Be Locked And Center Adjustable
• Professional Analyzer Media Unit With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge.

• Items	A15.2603 Transmit Polarizing Microscope Specification	A	B	Cata. No.
  Head	Seidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm	●	○	A53.2621-B
  	Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, , Light Split Fixed P20:E80	○	●	A53.2621-T
  Eyepiece	WF10x/20mm, High Eyepoint,	●	●	A51.2602-1018
  	WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable	●	●	A51.2605-1018D
  Nosepiece	Quadruple, Backward	●	●	A54.2610-N08
  Non-Stress Infinity Plan Objective	PLAN 4x/0.10, W.D.=12.1mm	●	●	A5P.2630-4
  	PLAN 10x/0.25,W.D.=4.64mm	●	●	A5P.2630-10
  	PLAN 20x/0.40(S),W.D.=2.41mm	●	●	A5P.2630-20
  	PLAN 40x/0.66(S),W.D.=0.65mm	●	●	A5P.2630-40
  	PLAN 60x/0.80(S),W.D.=0.33mm	○	○	A5P.2630-60
  	PLAN 100x/1.25(S,Oil),W.D.=0.12mm	○	○	A5P.2630-100
  Working Stage	Round Stage Diameter Φ142mm, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked, Center Adjustable	●	●	A54.2602-S03
  	Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm	○	○	A5P.2616
  	Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens	○	○	A5P.2616-LK
  Condenser	Non-Stress Abbe N.A.1.25, Iris Diaphragm, Center Adjustable With Polarizer Lens In Bottom	●	●	A56.2614-P6
  Polarizing Unit	Analyzer Media Unit 0~90° Adjustable, Between Head And Body, With Built-in Betrand Lens, Removeable Out of Optical Path For Single Polarizing Observe	●	●	A5P.2621-S
  	Compensator Slide, 3 Holes, With λ Slip (First Class Red) + 1/4λ Slip.	●	●	A5P.2613-22a
  	Quartz Wedge Slide (I-IV Class)	●	●	A5P.2615-17
  	Polarizer Lens, Bulit-in Bottom Part Of Condenser, Removeable Out of Optical Path	●	●	A5P.2610-S
  Transmit Illumination	5W LED Lamp Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	A56.2651-5W
  	6V/30W Halogen Lamp	○	○	A56.2613-6V30W
  Filter	Dia.45mm, Blue (Built in)	○	○	A56.2616-45B
  	Dia.45mm, Green	○	○	A56.2616-45G
  	Dia.45mm, Yellow	○	○	A56.2616-45A
  	Dia.45mm, Neutral	○	○	A56.2616-45N
  Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
  	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
  	C-Mount1.0x, Focus Adjustable	○	○	A55.2601-10
  	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610
  Package	Carton Size 570×275×450mm, 1 Unit/Ctn
  Weight	Gross Weight: 8.6 kgs, Net Weight: 7.5 kgs
  Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

•
•
•
