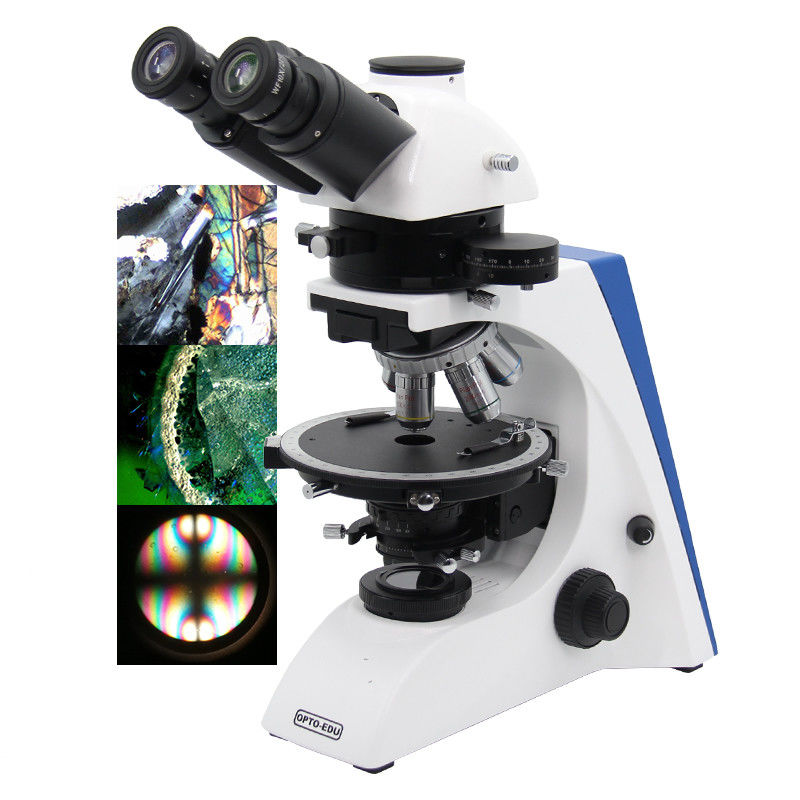

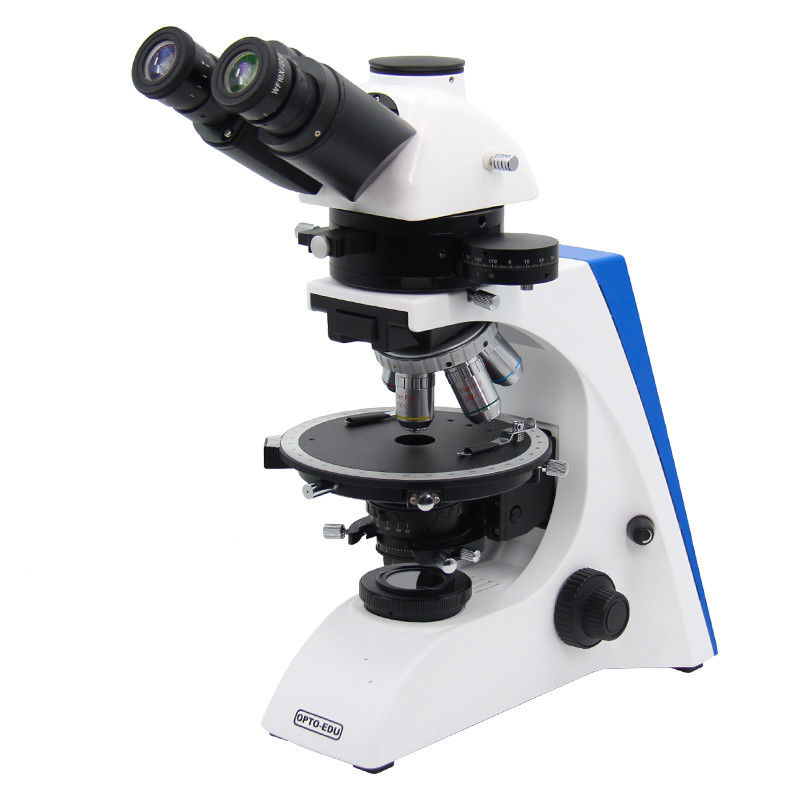

Polarizing Microscope Transmitting Light

Highlight

student compound microscope
,
highest magnification microscope
Eyepiece

WF10x/22
Objective

Non-Stress Infinity Plan Objective (Transmitting) 4x10x40x100x
Nosepiece

Quintuple, Center Adjustable
Condenser

Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked
Working Stage

Round Stage Diameter Φ174mm, For Transmit Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked
Light Source

Transmit Light 5W LED Koehler Illumination, Wide Voltage 100V~240V
Polarizing Unit

Analyzer Media Unit, Between Head And Body, Analyzer 0~360° Adjustable, Can Be Locked, With Bertrand Lens Built-in Focus Adjustable,
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A15.2601
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

Negotiation
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

Polarizing Microscope Transmitting Light

Name: Polarizing Microscope Transmitting Light
Brand: Opto-Edu (Beijing) Co., Ltd.
SKU: A15.2601
Price: 500.00 USD
Availability: InStock

button button

Get Price Contact Now

Retical Eyepiece WF10x/20mm, Dia.30mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable
Joint Move Design: Specially For Polarizing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned.

Super Wide Field Eyepiece SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Analyzer Rotatable 360°, Module Type, Can Be Locked
With Bertrand Lens Built-in Focus Adjustable, With Compensator Slide, Quartz Wedge Slide Slot

Large Size High Precision Centering Quintuple Nosepiece, Non-Stress Infinity Plan Objective (Transmitting) 4x,10x,20x,40x Available
Remark: The Yellow Mark On Nosepiece Is Standard Position For 10x Objective, The Rest Objectives Should Be Mounted From High To Low Power In Clockwise Direction, As Above Picture Shown.

Rotatable 360°, Division 1', Vernier, Division 6', Can Be Locked

Swing-out Condenser, N.A.0.9/0.13, With Polarizer For A15.2601-T&RT
Lens In Bottom, With Scale, Can Be Locked.
Swing The Lens In To Get Excellent Image When Using High Power Objective To Make Observation.

3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

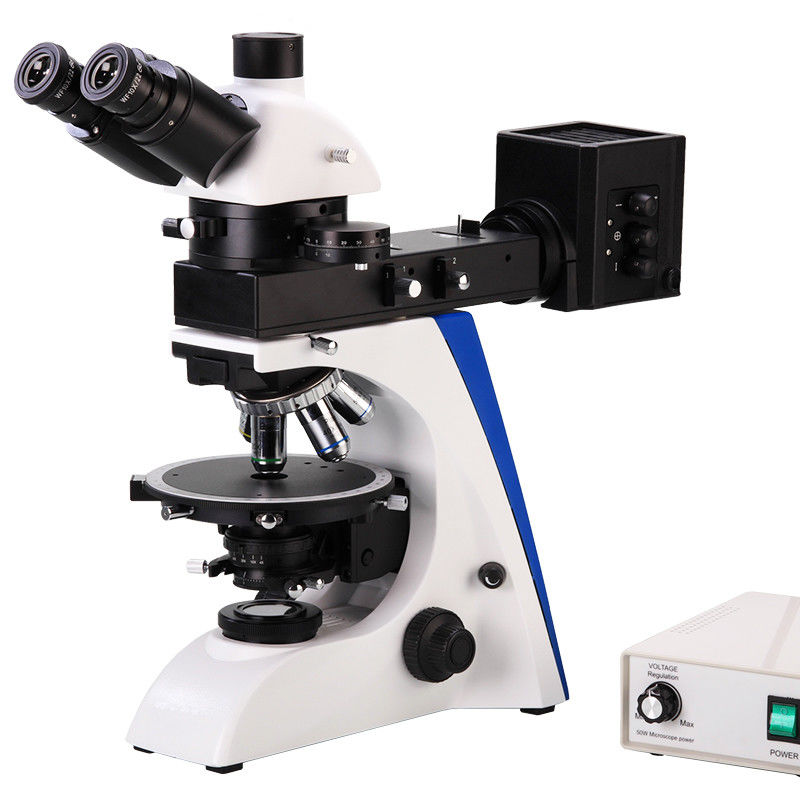

Items	A15.2601 Series Polarzing Microscope	A15.2601-T Transmit		A15.2601-R Reflect		A15.2601-RT Trans&Reflect		Cata. No.
Items	A15.2601 Series Polarzing Microscope	TB	TT	RB	RT	RTB	RTT	Cata. No.
Head	Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm, Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned	●		●		●		A53.2625-B
Head	Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned		●		●		●	A53.2625-T
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●					A51.2621-1022
	WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move	●	●					A51.2622-1022P
	WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable			●	●	●	●	A51.2621-1020
	WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move			●	●	●	●	A51.2622-1020P
Nosepiece	Quintuple, Center Adjustable	●	●	●	●	●	●	A54.2610-N02
Non-Stress Infinity Plan Objective (Transmitting)	PLAN 4x/0.10, W.D.=12.1mm	●	●			●	●	A5P.2630-4
	PLAN 10x/0.25, W.D.=4.64mm	●	●			●	●	A5P.2630-10
	PLAN 20x/0.40(S), W.D.=2.41mm	●	●			●	●	A5P.2630-20
	PLAN 40x/0.66(S), W.D.=0.65mm	●	●			●	●	A5P.2630-40
	PLAN 60x/0.8(S), W.D.=0.33mm							A5P.2630-60
	PLAN 100x/1.25(S,Oil), W.D.=0.12mm							A5P.2630-100
Non-Stress LWD Infinity Plan Objective (Reflecting)	LPL5x/0.13, W.D.=16.04mm			●	●	○	○	A5M.2633-5
	LPL10x/0.25 W.D.=18.48mm			●	●	○	○	A5M.2633-10
	LPL20x/0.40 W.D.=8.35mm			●	●	○	○	A5M.2633-20
	LPL50x/0.70(S) W.D.=1.95mm			●	●	●	●	A5M.2633-50
	LPL100x/0.90(S,Dry) W.D.=1.10mm			○	○	○	○	A5M.2633-100
Working Stage	Round Stage Diameter Φ174mm, For Transmit Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked	●	●	○	○	●	●	A54.2602-S06
	Round Stage Diameter Φ148mm, For Reflect Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked			●	●			A54.2602-S06a
	Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm	○	○	○	○	○	○	A5P.2616
	Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens	○	○	○	○	○	○	A5P.2616-LK
Condenser	Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked	●	●			●	●	A56.2614-C10
Polarizing Unit	Analyzer Media Unit, Between Head And Body, Analyzer 0~360° Adjustable, Can Be Locked, With Betrand Lens Built-in Focus Adjustable,	●	●	●	●	●	●	A5P.2621-BK
	Compensator Slide, With λ Slip (First Class Red)	●	●	●	●	●	●	A5P.2614-16a
	Compensator Slide, With λ/4 Slip	●	●	●	●	●	●	A5P.2614-15a
	Quartz Wedge Slide (I-IV Class)	●	●	●	●	●	●	A5P.2615-17
	Quartz Wedge Slide (0-IV Class) Long Type	○	○	○	○	○	○	A5P.2615-17a
	Polarizer Lens, Bulit-in Bottom Part Of Condenser	●	●	●	●	●	●	A5P.2610-BK
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●	●	●	●	●
Illumination	Transmit Light 5W LED Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●			●	●	A56.2612-5W
	Transmit Light 6V30W Halogen Koehler Illumination, Wide Voltage 100V~240V	○	○			○	○	A56.2613-30W
	Reflect Light 5W LED Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use			●	●	●	●	A56.2612-5W
	Reflect Light 12V50W Halogen Koehler Illumination, Wide Voltage 100V~240V			○	○	○	○	A56.2613-50W
Field Diaphragm	For Kohler Illumnation	●	●	●	●	●	●	A56.2615-BK
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○			○	○	A56.2660
Filter	Dia.45mm, Blue	○	○	○	○	○	○	A56.2616-45B
	Dia.45mm, Green	○	○	○	○	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	○	○	○	○	A56.2616-45A
Adapter	C-Mount 0.5x, Focus Adjustable		○		○		○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable		○		○		○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable		○		○		○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm		○		○		○	A55.2610
Package & Weight	Carton Size 520×470×285mm, 1 Unit/Ctn, Gross Weight: 12.5 kgs, Net Weight: 10.0 kgs							A15.2601-TB,TT
	Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 16.0 kgs, Net Weight: 12.5 kgs							A15.2601-RB,RT
	Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 15.0 kgs, Net Weight: 11.5 kgs							A15.2601-RTB,RTT
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
