A12.0908 Specification
|
A
|
B
|
|
Optical system
|
Infinity color corrected optical system
|
•
|
•
|
|
Head
|
Compensation brinocular head, 30° inclined, 360° rotatable, interpupillary distance 54-75mm,diopter +/-5 adjustable.
|
•
|
-
|
|
Compensation trinocular head, 30° inclined, 360° rotatable, interpupillary distance 54-75mm;splitting ratio R:T=100:0 or 0:100; diopter +/-5 adjustable.
|
-
|
•
|
|
Eyepiece
|
High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled.
|
•
|
•
|
|

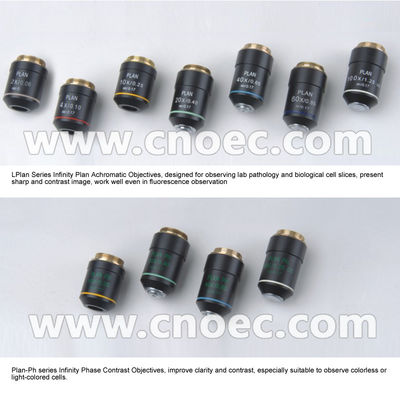

Objective
|
Infinity plan achromatic objectives 4x ,WD=7.18mm
|
•
|
•
|
|
Infinity plan achromatic objectives 10x,WD=4.70mm
|
•
|
•
|
|
Infinity plan achromatic objectives 20x ,WD=1.75mm
|
•
|
•
|
|
Infinity plan achromatic objectives 40x (Spring),WD=0.72mm
|
•
|
•
|
|
Infinity plan achromatic objectives 100x (Spring, Oil ),WD=0.15mm
|
•
|
•
|
|
Nosepiece
|
5 Holes revolving nosepiece, inward
|
•
|
•
|
|
Focusing
|
Coaxial focus system with upper limited and tension adjustment; coar
se range: 25mm; fine precision: 0.002mm; focus height adjustable.
|
•
|
•
|
|
Stage
|
175x145mm double layer mechanical stage, rotatable; with special fa
brication processing, anti-corrosive and anti-friction; X,Y moving hand
wheel in right or left hand; moving range: 76x50mm, precision : 0.1m
m.
|
•
|
•
|
|
Condenser
|
N.A.1.2/0.22 swing-out type achromatic condenser
|
•
|
•
|
|
Light Source
|
6V/30W halogen, pre-centered, intensity adjustable.
|
•
|
•
|
|
Filter
|
Blue
|
•
|
•
|
|
Optional Accessories
|
|
Eyepiece
|
High eye-point PL10x/22mm with micrometer, diopter adjustable
|
A51.0905-1022R
|
|
High eye-point PL15x/16mm
|
A51.0903-1516
|
|
Objectvie
|
Infinity plan achromatic objectives 2x
|
A52.0902-2
|
|
Nosepiece
|
4 Holes revolving nosepiece, inward
|
A54.0930-BS4
|
|
Phase Contrast Attachement
|
Infinity plan phase contrast objectives 10X,WD=4.70mm
|
A5C.0901
|
|
Infinity plan phase contrast objectives 20X,WD=1.75mm
|
|
Infinity plan phase contrast objectives 40X,WD=0.72mm
|
|
Infinity plan phase contrast objectives 100X,WD=0.15mm
|
|
N.A.1.25 five holes phase contrast condenser(Infinity)
|
|
Centering Telescope
|
|
Filter
|
|
Polarizing Attachment
|
Polarizer (ø45)
|
A5P.0913-P
|
|
Analyzer 360° rotatable;
|
A5P.0913-A
|
|
λ Slide
|
A5P.0913-C1
|
|
Rotatable Working Stage
|
A5P.0913-RW
|
|
polarizer and analyzer can be out of light path.
|
|
|
Dark Field Condenser
|
N.A.0.9dry
|
A5D.0913-D
|
|
N.A.1.25immersion
|
A5D.0913-W
|
|
CCD adapter
|
1x C-Mount,Focus Adjustable
|
A55.0926-10
|
|
0.50x, For 1/2” C-Mount,Focus Adjustable
|
A55.0926-50
|
|
0.67x, For 2/3” C-Mount,Focus Adjustable
|
A55.0926-67
|
