| Items |

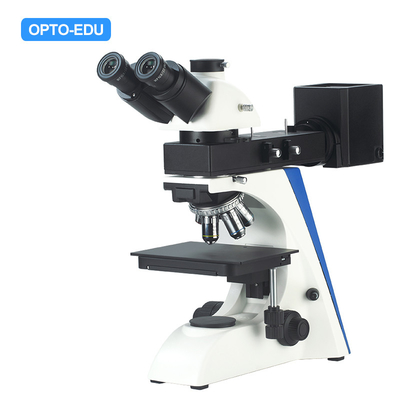

A13.2604 Series Metallurgical Microscope,
Reflect/Transmit, BF/DF |
-A |
-AD |
-B |
-BD |
Cata. No. |
| Head |
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm |
● |
● |
● |
● |
A53.2623-T |
| Eyepiece |
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable |
● |
● |
● |
● |
A51.2621-1022 |
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable,
With Micrometer X-0.1mm*180 Div / Y-Single Line |
● |
● |
● |
● |
A51.2622-1022 |
| Nosepiece |
Quintuple, Backward |
● |
|
● |
|
A54.2610-N01 |
| Quarduple, Backward, Special Design For BF/DF Observe |
|
● |
|
● |
A54.2610-N924 |
Metallurgical
LWD Infinity Plan Semi-APO
Objectives |
LMPLan FL 5x/0.15, W.D.=21.0mm |
● |
|
● |
|
A5M.2635-5 |
| LMPLan FL 10x/0.3, W.D.=20.0mm |
● |
|
● |
|
A5M.263510 |
| LMPLan FL 20x/0.40 W.D.=15.0mm |
● |
|
● |
|
A5M.2635-20 |
| LMPLan FL 50x/0.55 W.D.=10.0mm |
● |
|
● |
|
A5M.2635-50 |
| LMPLan FL 50x/0.75 W.D.=4.25mm |
○ |
|
○ |
|
A5M.2635-50a |
| LPL80x/0.80(S) W.D.=0.85mm |
○ |
|
○ |
|
A5M.2633-80 |
| LMPLan FL 100x/0.90(S,Dry) W.D.=3.00mm |
○ |
|
○ |
|
A5M.2635-100 |
Metallurgical
LWD Infinity Plan BF/DF
Objectives |
M PLAN BD5x/0.13, W.D.=16.04mm |
|
● |
|
● |
A5M.2634-5 |
| M PLAN BD10x/0.25 W.D.=18.48mm |
|
● |
|
● |
A5M.263410 |
| M PLAN BD20x/0.40 W.D.=8.35mm |
|
● |
|
● |
A5M.2634-20 |
| M PLAN BD50x/0.70(S) W.D.=1.95mm |
|
● |
|
● |
A5M.2634-50 |
| Working Stage |
Double Layer Mechanical Size 200×150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range |
● |
● |
|
|
A54.2601-S01T |
Double Layer Mechanical Size 182×140mm,
Travel Range 77×52mm |
|
|
● |
● |
A54.2601-S01T3 |
| Condenser |
Abbe N.A.1.25 , With Iris Diaphragm |
|
|
● |
● |
A56.2614-C01d |
| Focusing |
Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 25mm, Scale: 2µm |
● |
● |
● |
● |
|
| Illumination |
Reflect Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
● |
|
● |
|
A56.2612-5W |
Reflect Light 12V50W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V |
○ |
● |
○ |
● |
A56.2613-12V50W |
Transmit Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
- |
- |
● |
● |
A56.2612-5W |
Transmit Light 6V30W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V |
- |
- |
○ |
○ |
A56.26513-6V30W |
| Polarizing |
Analyzer + Polarizer For Reflect Light |
● |
● |
● |
● |
A5P.2603-BKR |
| Analyzer + Polarizer For Transmit Light |
- |
- |
● |
● |
A5P.2603-BKT |
| Filter |
Ground Glass Slider |
● |
● |
● |
● |
A56.2620-F |
| Blue Filter Switch Handle |
● |
● |
● |
● |
A56.2620-B |
| Adapter |
C-Mount 0.5x, Focus Adjustable |
○ |
○ |
○ |
○ |
A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable |
○ |
○ |
○ |
○ |
A55.2601-75 |
| C-Mount1.0x, Focus Adjustable |
○ |
○ |
○ |
○ |
A55.2601-10 |
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm |
○ |
○ |
○ |
○ |
A55.2610 |
| Package |
Carton Size 570*275*450mm, 1 Unit/Ctn |
| Weight |
Gross Weight 10.5kgs, Net Weigth 8.0kgs |
| Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories. |
|
|
|
|
|
