Research Inverted Phase Contrast Microscope 400X With Coaxial Coarse A19.2602

China Research Inverted Phase Contrast Microscope 400X With Coaxial Coarse A19.2602 supplier
Research Inverted Phase Contrast Microscope 400X With Coaxial Coarse A19.2602 supplier Research Inverted Phase Contrast Microscope 400X With Coaxial Coarse A19.2602 supplier

Large Image :  Research Inverted Phase Contrast Microscope 400X With Coaxial Coarse A19.2602

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A19.2602

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Applications: Research Certification: CE, Rohs
Drawtube: Binocular Theory: Phase Contrast Microscope
Nosepiece: Quadruple Light Source: Transmiting Light, Kohler Illumination System: 12V/20W Halogen

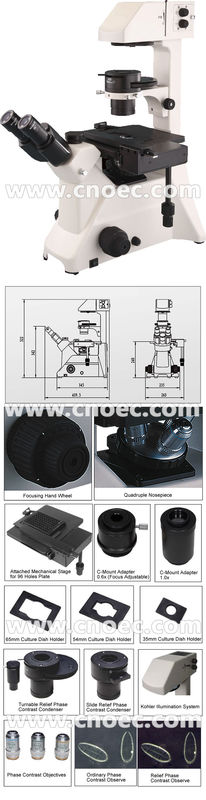

Research Inverted Phase Contrast Microscope With Coaxial Coarse A19.2602
Specifications:


A19.2602 Inverted Phase Contrast Microscope Specification

Head

Seidentopf Trinocular Head,45° Inclined, Interpupilary
Distance 50-75mm, Light Distribution (binocular tube:
photo tube): Both 100:0 and 20:80

Eyepiece

WF10x/20mm

WF16x/16mm

10x Reticle Eyepiece (0.1mm)

Telescope

Long Working Distance Objective

Plan Objective LPL4x/0.10 WD=17.5mm

Plan Objective LPL25x/0.40 WD=5.0mm

Plan Objective LPL40x/0.65 WD=3.0mm

Plan Phase Contrast Objective LPL Ph+ 10x/0.25 WD=7.9mm

Plan Phase Contrast Objective LPL Ph+ 25x/0.40 WD=5.0mm

Plan Phase Contrast Objective LPL Ph+ 40x/0.65 WD=3.0mm

Focus System

Low positioned, coaxial coarse & fine focusing system,
coarse 42mm/rot, fine 0.2mm/rot, minimum reading 2μm

Nosepiece

Quadruple

Stage

Mechnical Stage 206(X) x 170(Y)mm, with attached
mechanical stage moving range 128(X) x 80(Y)mm

Culture Dish Holder

65mm

35mm

Condenser

Turnable Relief Phase Contrast Condenser N.A.0.35 W.D. =45mm

Phase Contrast

Phase Contrast Slider 10x

Phase Contrast Slider 25x

Phase Contrast Slider 40x

Filter

Blue, Green & Gray

Light Source

Transmiting light, Kohler Illumination System: 12V/20W Halogen

Adapter

C-Mount Adapter 1x

Power Supply

 85-265V, 50/60Hz

Optional Accessories

Item No.

Long Working Distance Objective

Plan Objective LPL2.5x/0.07, WD=29.7mm

A52.2608-2.5

Plan Objective LPL4x/0.10, WD=17.5mm

A52.2608-4

Plan Phase Contrast Objective
LPL Ph+ 10x/0.25 W.D.=7.9 mm

A5C.2630-10

Plan Phase Contrast Objective
LPL Ph+ 40X/0.25 W.D.=3.0 mm

A5C.2630-40

Culture Dish Holder

54mm

A54.2606-54

Stage

Attached Mechanical Stage for 96 holes Plate

A54.2601

Adapter

C-Mount Adapter 0.6x (Focus Adjustable)

A55.2601-B06

Digital SLR Camera Adapte

For Nikon

A55.2622-N

For Sony

A55.2622-S

For Canon

A55.2622-C

Light Source

Upgrade to 6V30W Halogen

A56.2650-30W

Other

Micrometer 0.1mm

A58.2601-M
