Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019

China Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019 supplier
Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019 supplier Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019 supplier Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019 supplier

Large Image :  Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.1019

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Metallurgical Certification: CE, Rohs
Drawtube: Trinocular Illumination: Halogen Lamp
Magnification: 40x - 1000x Theory: Metallurgical Optical Microscope



Description:



--Infinity Optical System, Long Working Distance Metallurgical Objectives
--Fast Movement By Hand, With Precision Adjustment
--Big Stage with Extra Large Moving Range 250*250mm
--A13.1019-B with Dark Field Illumination System, Polarizing System
--Widely Used in IT Industry For Large Area Intergrate Circuit, Wafer Observation





Specifications:

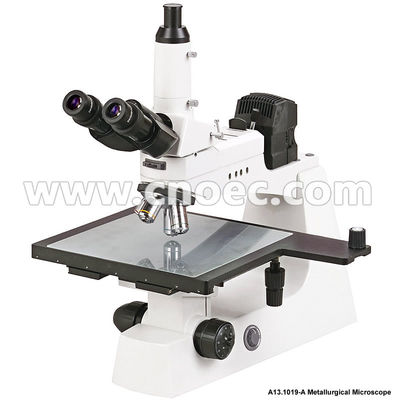

A13.1019 Metallurgical Microscope

A

B

System

Infinity Optical System

Head

Seidentopf Trinocular

Eyepiece

EW10x/22mm, Extra Wide Field

Nosepiece

Quadruple

o



Quintuple



o

Objective

 Infinity Plan Long Working Distance Achromatic Objective
 --4x/ 0.1/ ∞/-
 --10 x/0.25/ ∞/-
 --20x/ 0.4/ ∞/-
--40x/ 0.6/ ∞/0

o



Infinity Plan Long Working Distance Achromatic Objective
5x/0.12/ ∞/-
 10 x/0.25/ ∞/- (BF/DF)
 20x/ 0.4/ ∞/-(BF/DF)
 50x/0.75/ ∞/-
 100x/0.80/ ∞/0



o

Focusing

Coaxial Coarse & Fine Adjustment, Range24mm

Working Stage

Large Working Stage Size 300*268mm, Extra Large Moving Range

 250*250mm, Fast Movement, Precision Adjustment

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable

o



24V/100W Halogen Lamp, Brightness Adjustable, With Dark Field



o

Filter

Green, Blue,Yellow, Ground glass

Optional Accessories

Polarizing

Simple Polarization Set, Analyzer and Polarizer

A5P.1004

Adapter

C mount

A55.1002



Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019Trinocular Metallurgical Optical Microscope Halogen Lamp A13.1019
