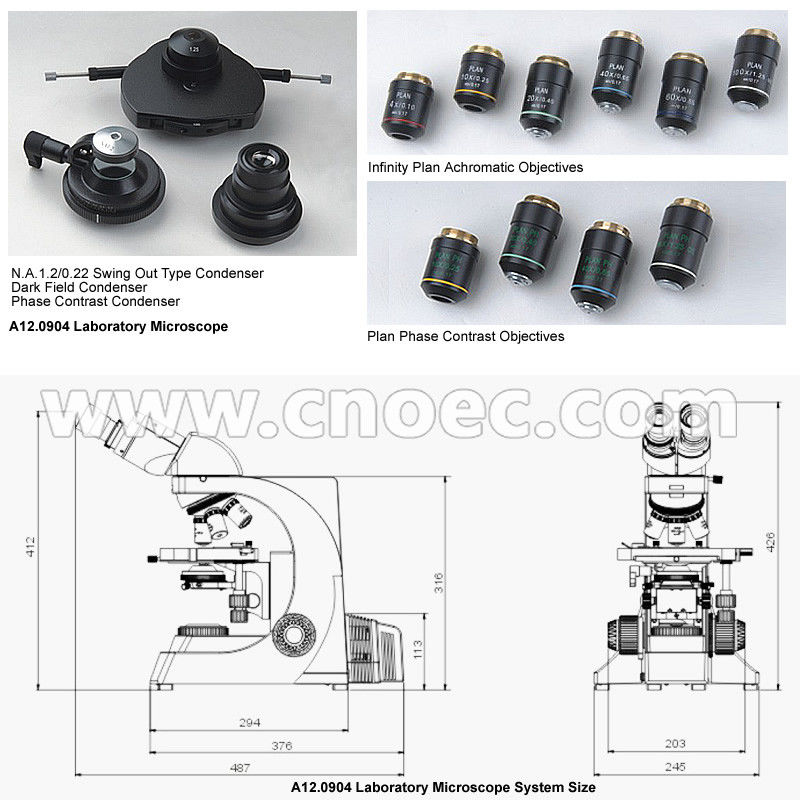

Description:
A12.0904 Laboratory Microscope, New Generation of infinity color corrected optical systems with wide field high eyepoint eyepieces, and plan achromatic objectives, present you sharp and bright micro images.
--Color Corrected Infinity Optical System
--N.A.1.2/0.22 Swing Achromatic Condenser
--Built-in Koehler Illumination 6V30W Halogen Light
--Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit
--Intergrated T Shape Body Design With Firm Structure
--Ergonomic Design Makes Comfortable Operation
--Dark Field, Polarizing, Phase Contrast, All Accessories Available
--New Professional Fluorescent System, Upgrade to A16.0902 and A16.0903
Specifications:
A12.0904 Laboratory Microscope |
A |
B |
|
Optical System |
Color Corrected Infinity Optical System |
||
Head |
Binocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5° |
o |
|
Trinocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5° |
o |
||
Eyepiece |
PL10x/22m, High Eyepoint, With Eye-cup |
||
Nosepiece |
Reversed Quintuple Nosepiece |
||
Objective |
Infinity Plan Achromatic Objectives |
||
Working Stage |
Double Layer Mechanical Stage, 175*145mm, Moving Range 75*50mm, Moving Precision 0.1mm |
||
Focusing |
Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit. Coarse Focusing Range 25mm, Fine Focusing Precision 0.002mm |
||
Condenser |
N.A.1.2/0.22 Swing Achromatic Condenser, With Scale Marked Diaphragm |
||
Illumination |
Built-in Koehler Illumination 6V30W Halogen Light (Philips 5761), Brightness Continously Adjustable, Center Pre-fixed |
||
Filter |
Blue Filter Dia.45mm |
||
Power |
90~240V Wide Range Voltage |
||
Stand |
Ergonomic Design, The Inverted "Y" Shape, Support Microscope Extra Lateral Stability |
||
A12.0904 Laboratory Microscope Optional Accessories |
Item No. |
||
Eyepiece |
PL10x/22m, High Eyepoint |
A51.0903-1516 |
|
PL10x/22r, Plan Eyepiece with Cross, High Eyepoint |
A51.0905-1022r |
||
Dark Field |
Dark Field Condenser, Dry, N.A=0.9 |
A5D.0912-D |
|
Dark Field Condenser, Immersion, N.A=1.2 |
A5D.0912-W |
||
A5C.0905-IPInfinity Plan Phase Contrast Set |
Centering Telescope |
A5C.0910-30 |
|
Infinity Plan Phase Contrast Objective 10x/0.25, W.D. 4.70mm |
A5C.0636-10 |
||
Infinity Plan Phase Contrast Objective 20x/0.25, W.D. 1.75mm |
A5C.0636-20 |
||
Infinity Plan Phase Contrast Objective 40x/0.65, W.D. 0.72mm |
A5C.0636-40 |
||
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.0.15mm |
A5C.0636-100 |
||
Infinity Phase Contract Disc Condenser, Abbe N.A.1.25 |
A5C.0912-PCI |
||
Polarizing Set |
Polarizer, Dia. 45mm |
A5P.0917-P |
|
Analyizer Slide |
A5P.0917-A |
||
λ Slide |
A5P.0917-C1 |
||
Rotatable Working Stage |
A5P.0917-RW |
||
Upgrade to A15.0901 Polarizing Microscope |
|||
Fluorescent |
Upgrade to A16.0902 Fluorescence Microscope, APO |
||
Metallurgical |
Upgrade to A13.0904 Metallurgical Microscope |
||
Digital |
Upgrade to A31.0904 Digital Laboratory Microscope |
||
Filter |
Yellow, Dia.45mm |
A56.0935-XYY |
|
Green, Dia.45mm |
A56.0935-XYG |
||
Neutral, Dia.45mm |
A56.0935-XYF |
||
Adapter |
C-Mount, 1.0x, Focus Adjustable |
A22..0926-10 |
|
C-Mount, 0.67x, For 2/3" CCD, Focus Adjustable |
A22..0926-67 |
||
C-Mount, 0.50x, For 1/2" CCD, Focus Adjustable |
A22..0926-50 |
||
C-Mount, 0.35x, For 1/3" CCD, Focus Adjustable |
A22..0926-35 |
