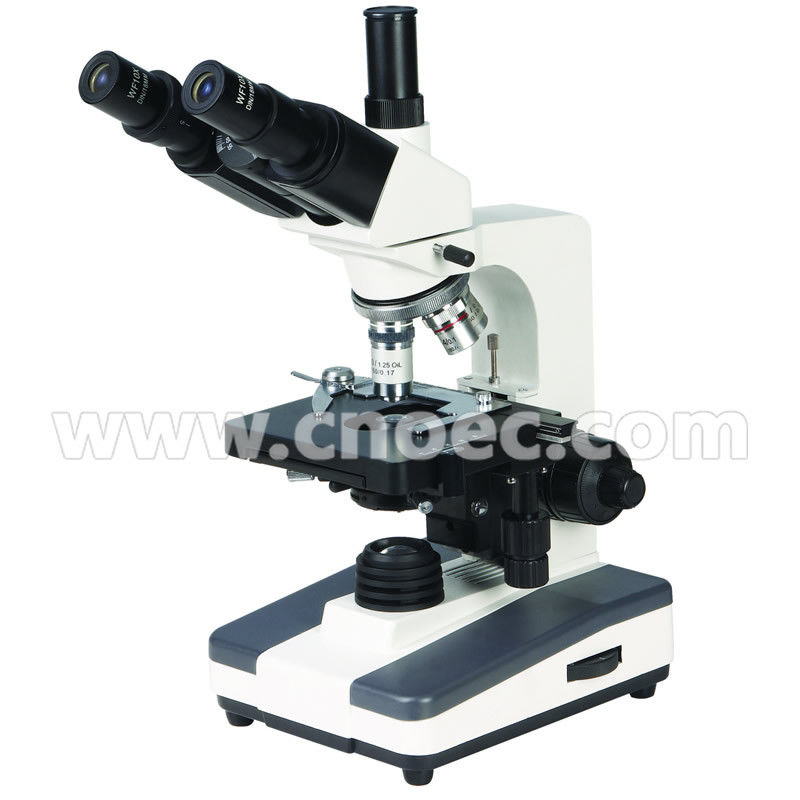

Binocular / Monocular Compound Microscope Compensation Free A11.1120

Binocular / Monocular Compound Microscope Compensation Free A11.1120

  • High Light

    binocular biological microscope

    ,

    biological compound microscope

  • Applications
    Laboratory, Hobby
  • Certification
    CE, Rohs
  • Drawtube
    Binocular, Monocular, Trinocular
  • Illumination
    LED
  • Product Name
    Microscope
  • Theory
    Biological Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.1120
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Binocular / Monocular Compound Microscope Compensation Free A11.1120



Binocular / Monocular Compound Microscope Compensation Free A11.1120



Specifications:



A11.1120 Biological Microscope
-A
-B
-C
Head
Monocular Head,45° inclined,360° Rotatable
-
-
Compensation Free Binocular Head,30° inclined,55mm-75mm
-
-
Compensation Free Trinocular Head,30° inclined,55mm-75mm
-
-
Eyepiece
WF10X /18mm
Objective
Achromatic 4X
Achromatic 10X
Achromatic 40X, Spring
Achromatic 100X, Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Stage
Double Layer Mechanical Stage with Scale,Size:125mmx130mm, Moving Range:70mmx30mm
Focusing
Coaxial Coarse and Fine Focusing Scale Value 0.002mm, Focusing Range :30mm
Light Source Halogen Bulb 6V/20W,AC 220V/110V,Brightness Adjustable
Optional Accessories
Head Compensation Free Binocular Head,30° inclined,48mm-75mm
Compensation Free Trinocular Head,30° inclined,48mm-75mm
Eyepiece WF16X
WF20X
P16X
Objective Achromatic 20X
Achromatic 60X(S)
CCD Adapter CCD Adapter
Light Source Reflective Mirror
LED
