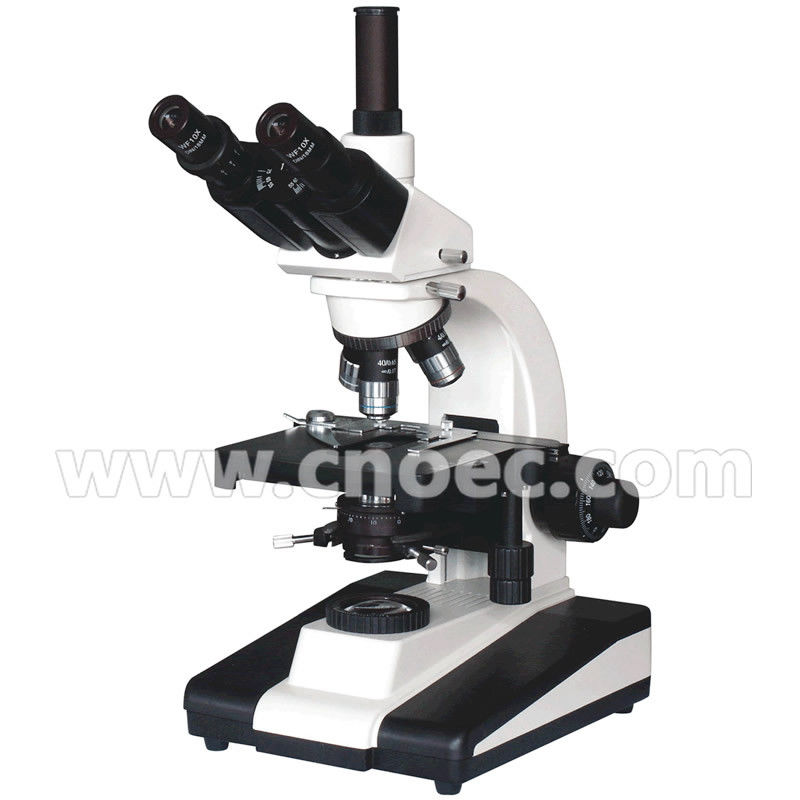

1000X Laboratory Biological Microscope Dark Field Microscopes A11.1117

1000X Laboratory Biological Microscope Dark Field Microscopes A11.1117

  • High Light

    high powered microscope

    ,

    binocular biological microscope

  • Applications
    Laboratory
  • Certification
    CE
  • Drawtube
    Binocular, Trinocular
  • Max Magnification
    1000X
  • Product Name
    Microscope
  • Theory
    Biological Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.1117
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

1000X Laboratory Biological Microscope Dark Field Microscopes A11.1117



Specifications:



A11.1117 Biological Microscope
-A
-B
Head
Compensation Free Binocular,30°inclined,55mm-75mm
-
Compensation FreeTrinocular,30°inclined,55mm-75mm
-
Eyepiece
WF10X/18mm
Objective
Achromatic 4X
Achromatic 10X
Achromatic 40X, Spring
Achromatic 100X, Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Stage
Double Layer Mechanical Stage,Size150mmx150mm,Moving Range:80mmx50mm
Focusing
Coaxial Coarse and Fine Focusing Scale Value 0.002mm, Focusing Range :30mm
Condenser ABBE N.A.1.25Condenser with Iris Diaphragm & Filter
Illumination Kohler Illumination
Light Source
Halogen Bulb 6V/20W,AC 220V/110V,Brightness Adjustable
Optional Accessories
Eyepiece WF16X
WF20X
P16X
Objective Achromatic 20X
Achromatic 60X, Spring
Semi-plan Objective 4X
Semi-plan Objective 10X
Semi-plan Objective 20X
Semi-plan Objective 40X(S)
Semi-plan Objective 60X(S)
Semi-plan Objective 100X(S)
Plan Objective 4X
Plan Objective 10X
Plan Objective 20X
Plan Objective 40X(S)
Plan Objective 60X(S)
Plan Objective 100X(S)
Dark Field Darkfield
Photo Adapter Photo Adapter
CCD Adapter 0.5x
0.57x
0.75x
