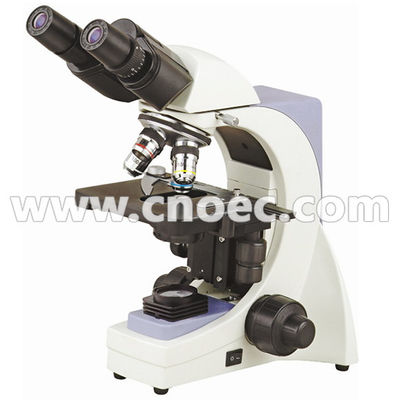

Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032

Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032

Products - Compound Optical Microscope
  • Highlight

    optical compound microscope

    ,

    wide field microscope

  • Applications
    Laboratory, Hobby, Home
  • Certification
    CE
  • Drawtube
    Binocular
  • Illumination
    Halogen Lamp
  • Product Name
    Compound Optical Microscope
  • Theory
    Biological Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1032
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032

  • Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032
  • Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032
Get Price Contact Now



Hobby Biological Compound Optical Microscope With Halogen Lamp A12.1032





Specifications:



Specification A12.1032
A
B
Head
Seidentopf Binocular Head, Inclined at 30°
Eyepiece
 Wide Field Eyepiece WF 10x/18
Nosepiece
 Quadruple Nosepiece
Objective
 Achromatic Objectives 4X
Achromatic Objectives 10X
Achromatic Objectives 40X
Achromatic Objectives 100X
Stage
 Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Condenser

 N.A.1.25 Abbe Condenser with Iris Diaphragm and Filter
Filter
 Blue Filter
Green Filter
Illumination
6V/ 20W Halogen Lamp, Brightness Adjustable
Other
 Back Cover
-
●
Optional Accessories
Item No.
Eyepiece
 Wide Field Eyepiece WF16x/ 11 A51.1002-16
Objective
Plan Achromatic Objectives 4X A52.1004-4
Plan Achromatic Objectives 10X A52.1004-10
Plan Achromatic Objectives 40X A52.1004-40
Plan Achromatic Objectives 100X A52.1004-100
Polarization Attachment
 Simple Polarization Set A5P.1001
Fluorescent Attachment
 Epi-fluorescent Attachment A5F.1001
Photo Attachment
   A55.1001
Video Adapter
 C Mount 1x A55.1002-10
C Mount 0.5x A55.1002-05
Phase Contrast Attachment
 Simple Phase Contrast Kit A5C.1001
Sliding Phase Contrast Kit A5C.1002-C3
Turret Phase Contrast kit A5C.1003-B3
Dark Field Attachment
 Dark Field Condenser (Dry) N.A. 0.9 A5D.1001-BD
Dark Field Condenser (Immersion) N.A. 0.9 A5D.1001-BO



Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032 0Hobby Biological Compound Optical Microscope With Quadruple Nosepiece A12.1032 1
