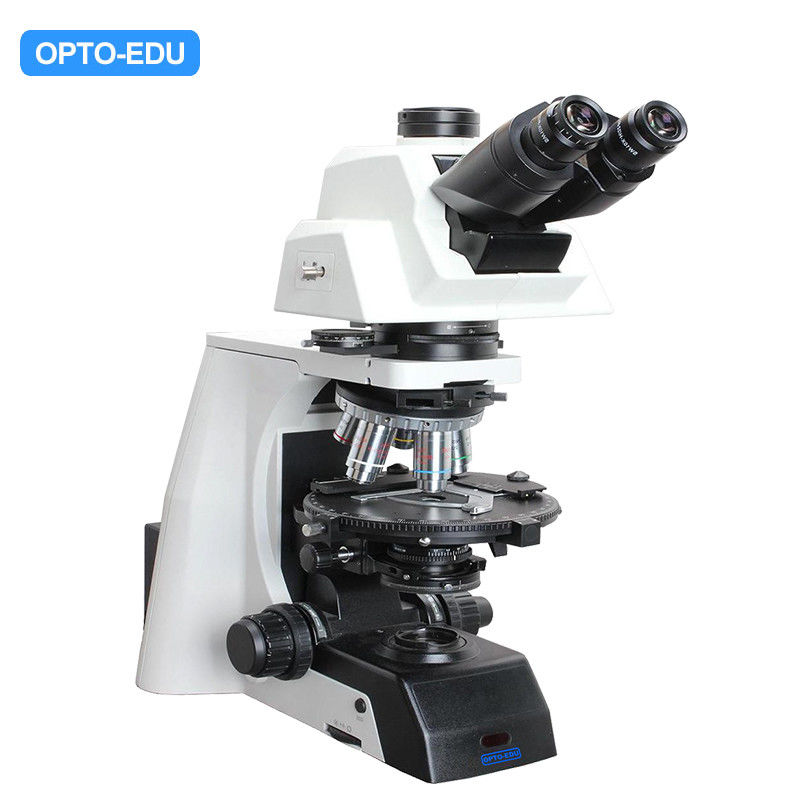

OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO

Highlight

usb digital microscope
,
infinity plan microscope
Main Body

BH Manual Body + Halogen Illumination.
Head

Ergo Tilting Trinocular Head, Inclination 0°~35°
Eyepiece

SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm
Nosepiece

Manual Nosepiece, Quintuple, Backward, Center Adjustable
Working Stage

High-precision Pre-Adjusted Revolving Round Stage
Condenser

Swing-Out Condenser NA0.9/0.25
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A15.1091
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T,West Union,Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO

button button

Get Price Contact Now

Research Level Polarizing Microscope, Manual, Transmit/Reflect, Semi-APO
Extra Wide Eyepiece EW10x/25mm Dia.30mm Diopter Adjustable With Lock Pin
Quintuple Nosepiece Center Adjustable, NIS60 Infinity Plan Strainless Semi-APO PL5x10x20x50x100x
Round Stage Dia.190mm, With Attachable Moving Stage Range 30x30mm
Transmit ECO Kohler Illumination 12V100W Halogen, Reflect 12V100W Halogen

OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 0

A15.1091 Series Polarizing Microscope		A15.1091			Cata.No.
A15.1091 Series Polarizing Microscope		-T	-TR	-R	Cata.No.
Optical System	NIS60 Infinite Optical System	●	●	●
Observation Method	Bright Field	●	●	●
	Dark Field,	○	○	○
	Polarizing	●	●	●
	Phase Contrast	○	○	○
	Flourescent	○	○	○
	DIC	○	○	○
Main Body	BH Manual Body + Halogen Illumination.	●	●	●	A54.1090-BH
	BL Manual Body + LED Illumination.	○	○	○	A54.1090-BL
	ATH Semi-Auto Body + Halogen Illumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	○	○	○	A54.1090-ATH
	ATL Semi-Auto Body + LED Illumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	○	○	○	A54.1090-ATL
Head	Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm	○	○	○	A53.1090-B
	Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	●	○	○	A53.1090-T
	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	○	●	●	A53.1090-TT
Eyepiece	EW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●	●	●	A51.1090-1022
	EW10x/22mm, With Scale Cross, With Locating Pin, For Polarizing	●	●	●	A51.1090-1022S
	EW10x/22mm, With Cross Hair, With Locating Pin, For Polarizing	○	○	○	A51.1090-1022C
	EW10x/22mm, With Grid Plate, With Locating Pin, For Polarizing	○	○	○	A51.1090-1022G
	EW12.5x/16mm, High Eyepoint	○	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-2012
Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable	●	●	●	A54.1091-5M
	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●	●
	Protect Cover For Nosepiece Holes	●	●	●	A54.1091-C
NIS60 Strain-Free Infinity Plan Objective	4x/0.1, W.D.30mm, PL, No Cover Glass	●	-	-	A5P.1091-4
	10x/0.25, W.D.10.2mm, PL, No Cover Glass	●	-	-	A5P.1091-10
	20x/0.4, W.D.12mm, PL, No Cover Glass	●	-	-	A5P.1091-20
	40x/0.65, W.D.0.7mm, PL, No Cover Glass	●	●	-	A5P.1091-40
	100x/1.25, W.D.0.2mm, PL, No Cover Glass	●	●	-	A5P.1091-100
NIS60 Strain-Free Semi-APO Infinity Plan Objective	5x/0.15, W.D.20mm, Semi-APO, PL, No Cover Glass	-	●	●	A5P.1092-5
	10x/0.3, W.D.11mm, Semi-APO, PL, No Cover Glass	-	●	●	A5P.1092-10
	20x/0.45, W.D.3.0mm, Semi-APO, PL, No Cover Glass	-	●	●	A5P.1092-20
	50x/0.8, W.D.1.0mm, APO, PL, No Cover Glass	-	●	●	A5P.1092-50
	100x/0.9, W.D.1.0mm, APO, PL, No Cover Glass	-	●	●	A5P.1092-100
Working Stage	High-precision Pre-Adjusted Revolving Round Stage, Diameter 190mm, Center Adjustable, 360° Scale, Minium Division 1° , Minium Reading 6´ by Means of Vernier Scale, 45° Click Stop Knob.	●	●	●	A54.1094
Working Stage	Attachable Moving Stage, Moving Range 30x30mm	●	●	●	A54.1094-R
Condenser	Swing-Out Condenser NA0.9/0.25	●	●	●	A56.1091-S
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	●	●	●
Polarizing Unit & Compensator	Bertrand Lens Intermediate Unit, With Slot For Compensator Slide	●	●	●	A5P.1090-CB
	λ Compensator Slide	●	●	●	A5P.1090-Cλ
	λ1/4 Compensator Slide	●	●	●	A5P.1090-C1/4λ
	Quartz Wedge Slide	●	●	●	A5P.1090-CQ
	Blank Slide	●	●	●	A5P.1090-BS
Transmit Light Source	Transmit Kohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	●	●	-	A56.1090-12V100W
Polarizing For Transmit Light	Protective Glass	●	●	-	A5P.1090-G
	Transmit Polarizer, Swing Out	●	●	-	A5P.1090-TP
	Transmit Analyzer Slide	●	●	-	A5P.1090-TA
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	●	●	-	A56.1092-H
	Filter LBD	●	●	-	A56.1092-LBD
	Filter Green	●	●	-	A56.1092-G
	Filter Yellow	●	●	-	A56.1092-Y
	Filter ND6	●	●	-	A56.1092-ND6
	Filter ND25	●	●	-	A56.1092-ND25
Reflect Light Source	Reflect Epi Polarizing Illuminator, Turret Disc With 6 Positions For Filter Block, Kohler Illumination	-	●	●	A5P.1090
	12V100W Halogen Lamp Housing	-	●	●	A5P.1090-100W
	BF1 View Block	-	●	●	A5P.1090-B1
	BF2 View Block	-	●	●	A5P.1090-B2
Polarizing For Reflect Light	Circularly Polarized Light Block	-	●	●	A5P.1090-CP
	Reflect Polarizer Slide	-	●	●	A5P.1090-RP
	Reflect Analyzer Slide, 360º Dial Rotate, Minimum Scale Reading 0.1º	-	●	●	A5P.1090-RA
	Blank Slide	-	●	●	A5P.1090-E
Filter For Reflect Light	Filter Blue	-	●	●	A56.1093-B
	Filter Green	-	●	●	A56.1093-G
	Filter Yellow	-	●	●	A56.1093-Y
	Filter Forested	-	●	●	A56.1093-F
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	○	A55.1090-E
	C-Mount 1.0x	○	○	○	A55.1090-10
	C-Mount 0.5x	○	○	○	A55.1090-05
Other Accessories	Working Stage Holder Bracket	●	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	○	A54.1096-A2
	Immersion Oil	○	○	○	A50.1090-01
	Allen Wrench	●	●	●	A50.1090-02
	Power Cord	●	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	○	A50.1090-07
	USB Cable	○	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable
