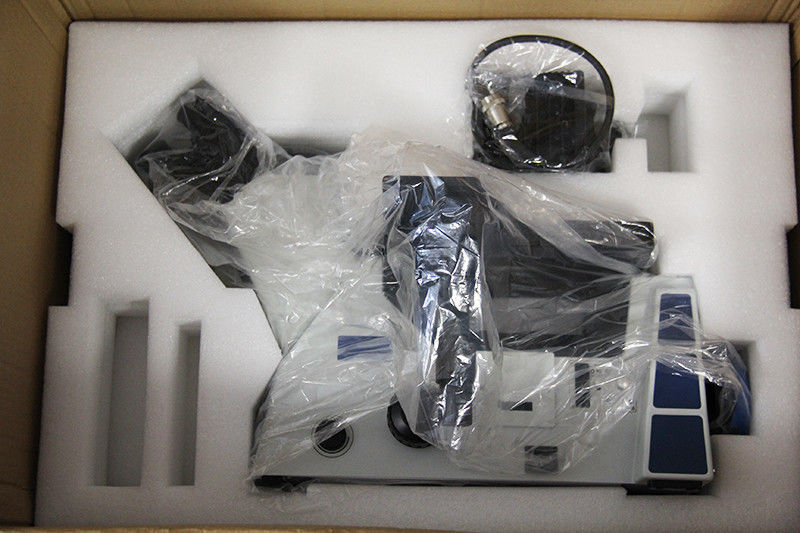

| A13.0912-A Inverted Metallurgical Microscope, BF,DF,DIC,PL,ECO, Semi-APO |
| Optical |
Infinity Color Corrrected Optical System, BF,DF,DIC,PL,ECO, Semi-APO |
| Frame |
One-piece Construction,With Filter Slot & Polarizing Slot |
| Head |
Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, IPD 50-75mm |
| Eyepiece |
Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point |
| Field |
Bright & Dark Field, With BD Shifter |
| Objective |
Infinity LWD BD Plan Achromatic Metallurgical DIC-5x/0.15 WD11mm |
A5M.0939-5 |
| Infinity LWD BD Plan Achromatic Metallurgical DIC-10x/0.3 WD9.5mm |
A5M.0939-10 |
| Infinity LWD BD Plan Achromatic Metallurgical DIC-20x/0.45 WD3.4mm |
A5M.0939-20 |
| Infinity LWD BD Plan Achromatic Metallurgical Semi-APO FL50x/0.55 WD7.5mm |
A5M.0940-50 |
| Focus |
Coaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm |
| Nosepiece |
Coded BD Quintuple Nosepiece With DIC Slot |
| Stage |
Right Hand Controls, Low Positioned, Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail |
| Metal Specimen Holder (Dia. 25) |
| Light Source |
Reflected Halogen Lamp 12V100W |
| Light Indicator |
| Brightness Adjustable |
| ECO Infared Induction System (Auto on/off) |
| External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output |
| BF/DF |
BF/DF Shifter Lever on Left Side of Main Body |
|
| Polarzing |
Polarizer & 360° Analyzer |
| Optional Accessories |
| Eyepiece |
Plan WF15X/16mm, Diopter Adjustable, High Eye-point |
A51.0904-1516T |
| Objective |
Infinity LWD BD Plan Achromatic Metallurgical Semi-APO FL100x/0.8 WD2.1mm |
A5M.0940-100 |
| Adapter |
0.35x C-Mount |
A55.0934-35 |
| 0.5x C-Mount |
A55.0934-05 |
| 0.65x C-Mount |
A55.0934-65 |
| 1x C-Mount |
A55.0934-1 |
| DIC |
DIC Slider |
A5M.0955 |
