BD DIC Metallurgical Optical Microscope For Learning A13.0908
Description:
A13.0908 BD DIC Metallurgical Microscope, with high quality component design, simple and flexible combination and strong metallographic detecting function, it is the best choice for large size sample observation
--Compact and Flexible Structure, Adapting Various Surroundings
--Get Clear and Sharp Image Under Various Kind of Observations
--Optical Components Are All Specially Handled and Coated With Speical Film
--New Design of Long Working Distance Professional Metallurgical Objectives
--High Power Objectives with Semi-Apochromatic Technology
Specifications:
|
A13.0908 BD, DIC Metallurgical Microscope |
A
|
B |
||
|
Optical System |
Bright Field/Oblique illumination, Polarizig, DIC |
o |
|
|
|
Bright Field/Dark Field, Polarizig, DIC |
|
o |
||
|
Head |
30° Inclinded Trinocular Postive Head, Spiltting Ratio 100:0 or 50:50, Diopter Adjustable +/-5, Interpupillary Distance 54~75mm |
o |
|
|
|
25°Inclinded Trinocular Postive Head, Spiltting Ratio 100:0 or 0:100, Diopter Adjustable +/-5, Interpupillary Distance 54~75mm |
|
o |
||
|
Eyepiece |
High Eyepoint Plan PL10x/22mm |
|||
|
Objective |
●Long Working Distance Infinity Plan Metallurgical DIC Achromatic Objectives |
o |
|
|
|
●Long Working Distance Infinity Plan Metallurgical BD DIC
Achromatic Objectives |
|
o |
||
|

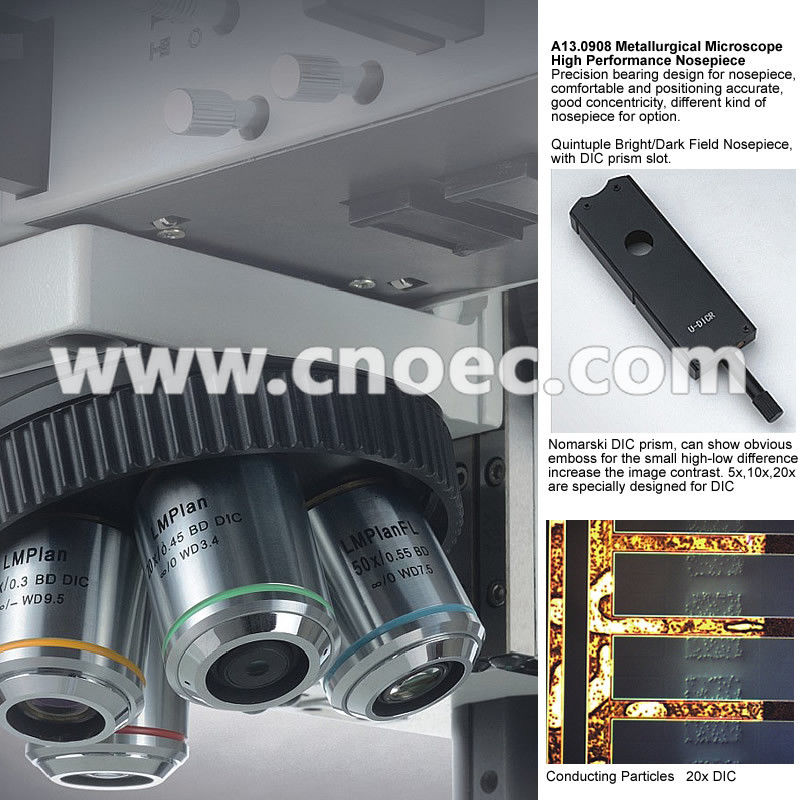

Nosepiece |
Intilted, Quintuple Bright Field, With DIC Slot |
o |
|
|
|
Intilted, Quintuple Bright/Dark Field, With DIC Slot |
|
o |
||
|
Focusing |
Coaxial Coarse & Fine Focusing, Coarse Focus Range 32mm, Fine Focusing Precision 0.002mm,With Tension Adjustable Device to Prevent Gliding |
|||
|
Base |
B5 Big Flat Base, Size 320*260*16mm, Post Height 280mm, DIameter 32mm |
|||
|
Illumination |
15V150W Cold Halogen Lamp, Intensity Continuously Adjustable, |
|||
|
Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch of Oblique Illumination |
o |
|
||
|
Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch Device Between Bright and Dark Field |
|
o |
||
|
Polarizing |
Fixed Polarizer Flashboard, Dia.30mm |
|||
|
360° Rotatable Analyser Flashboard |
||||
|
Power |
90-240V Wide Voltage, One Way Power Output |
o |
|
|
|
90-240V Wide Voltage, Double Way Power Output |
|
o |
||
|
A13.0908 BD, DIC Metallurgical Microscope Optional Accessories |
||||
|
Eyepiece |
High Eyepoint Plan PL15x/16mm PL15x16 |
A51.0903-1516 |
||
|
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r, |
A51.0905-1022R |
|||
|
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T |
A51.0904-1022T |
|||
|
High Eyepoint Plan PL10x/23mm, Diopter Adjustable, PL10x23T |
A51.0904-1023T |
|||
|
Light |
Soft Single Optical Fiber 1000mm |
A56.0944-1000 |
||
|
Soft Single Optical Fiber 1500mm |
A56.0944-1500 |
|||
|
DIC |
DIC Attachment Set |
A5M.0950 |
||
|
Objective |
Long Working Distance Infinity Plan Metallurgical Achromatic LMPL100X/0.8 WD2.1MM |
A5M.0938-100 |
||
|
Long Working Distance Infinity Plan Metallurgical BD AchromaticLMPL100X/0.8 WD2.1MM |
A5M.0940-100 |
|||
|
Filter |
Interface Filter For Reflect illumination |
Blue, <480nm |
A5M.0951-B |
|
|
Green, 520~570nm |
A5M.0951-G |
|||
|
Red, 630~750nm |
A5M.0951-R |
|||
|
Netural, for White Balance |
A5M.0951-LBD |
|||
|
Adapter |
0.5x C-Mount, for 1/2" CCD, Focus Adjustable |
A55.0928-50 |
||
|
1.0x C-Mount, Focus Adjustable |
A55.0928-10 |
|||
|
Digital Camera Adapter with Photo Eyepiece |
A55.0910 |
|||
