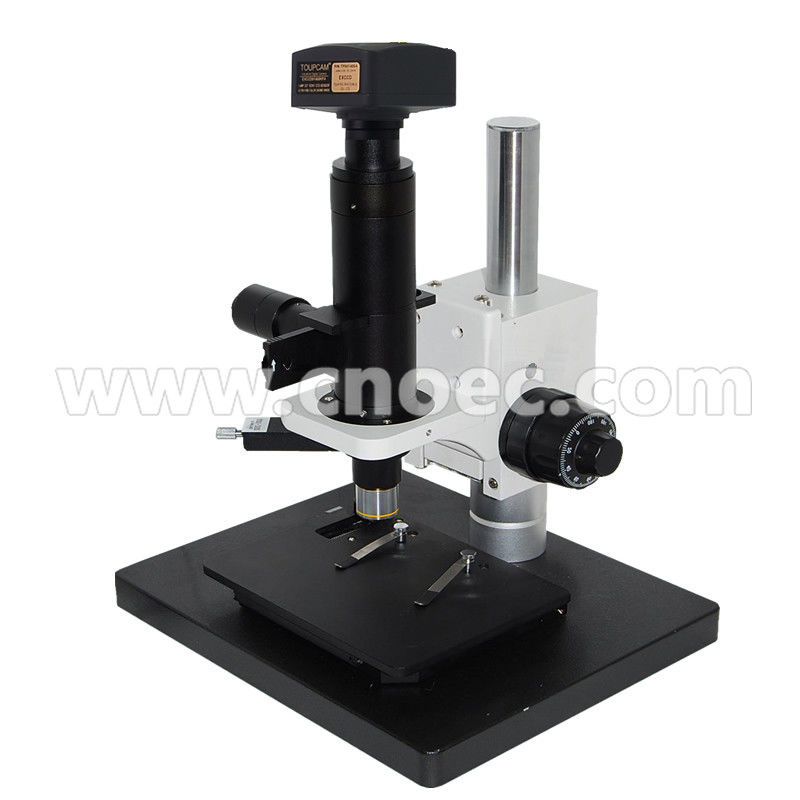

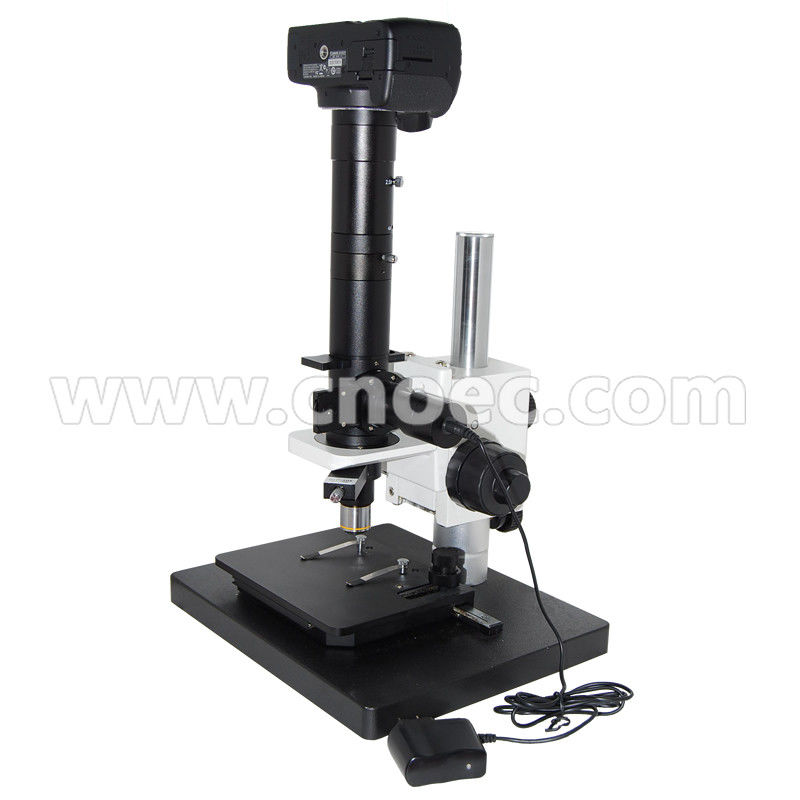

100X Polarizing Metallurgical Optical Microscope Trinocular / Monocular A13.0217
Description:
Metallurgical Optical Microscope uses a different lighting method than a conventional microscope and can illuminate solid specimens to identify, inspect, and measure them. Some industries use inverted metallurgical microscopes, which observe the specimen from below the stage or table. Electronic parts manufacturers, forensic laboratories, and metal foundries all use this type of instrument.
Specifications:
|
A13.0217 DIC Metallurgical Microscope
|
|||
|---|---|---|---|
|
Specifications
|
A13.0217-A
|
A13.0217-B
|
|
| Head | Monocular head | Trinocular head | |
|
Total Magnification
|
100X
|
||
|
Mechanical Tube Length
|
?/font> |
||
| Objective Conjugate Distance | ?/font> | ||
| Eyepiece | WF10X(??18mm), eyepiece adapter: ??23.2mm, parfocal distance: 10mm | ||
| Objective | Strainfree plan achromatic objective PL 10x/0.25, working distance: 20.2mm | ||
| Focus System |
Coaxial coarse/fine system focus, Minimum division of fine focusing: 2um With tensional adjustable |
||
| Stage | Double layer mechanical, size 180x145mm, moving range 35x30mm. Max. sample height: 130mm | ||
| DIC Board | 10x DIC board use with the objective, horizon adjustable | ||
| Filter | Blue filter | ||
| Frosted filter | |||
| Collector | For halogen lamp | ||
| Polarizing Attachment | Polarizer, 360?㠲otatable,switched in or out | ||
| Analyser can be switched in or out | |||
| Light source | High brightness Led light, brightness control | ||
| Power supply | 85V??265V 50/60Hz | ||
|
Optional Accessories
|
Item No.
|
||
| Eyepiece | WF15x/11mm | A51.0203-16A | |
| WF20x/11mm | A51.0203-20A | ||
| Objective | Strainfree plan achromatic objective 5x/0.1, W.D.:18.2mm | ||
| Strainfree plan achromatic objective 20x/0.4, W.D.:8.8mm | |||
| CCD Adapter | 1x | A55.0202-02 | |
| 0.5x | A55.0202-04 | ||
| 2x SLR digital camera adapter | A55.0204-02 | ||
| Digital camera | With USB output(1.3M/3M/5M/9M pixel, with image analysing software | A59.0204 | |
