Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R

Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R

  • High Light

    full auto reflect portable metallurgical microscope

    ,

    semi apo portable metallurgical microscope

    ,

    opto-edu portable metallurgical microscope

  • Observation Method
    Bright Field, Dark Field, Polarizing, DIC
  • Main Body
    ATH Semi-Auto Body + Halogen Illumination
  • Head
    Ergo Tilting Trinocular Head, Inclination 0°~35°
  • Eyepiece
    SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm
  • Nosepiece
    Auto Coded Nosepiece, Sextuple, Backward
  • Objective
    Infinity Plan BF/DF Semi-APO Metallurgical Objective
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.1095-R
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

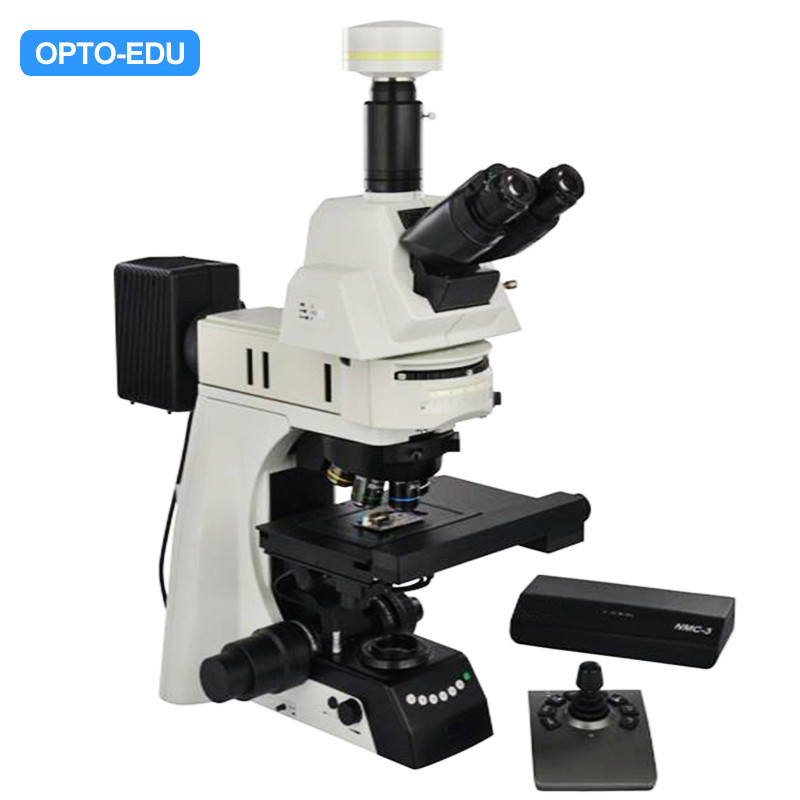

Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R

  • Research Level Metallurgical Microscope Semi-Auto, With Reflect, Transmit/Reflect Light
  • Manual 6 Holes Nosepiece With NIS45 Infinity Plan Semi-APO BD Objective 5x10x LWD 20x50x100x
  • 4" Working Stage, Size 210x170mm, Move Range 102x102mm, With Round Crystal Holder, Wafer Holder Etc.
  • Reflect 12V100W Halogen Illuminator, Bright Field, Polarizing, DIC View
  • Transmit 12V100W Halogen Kohler Illumination, Auto Adjust Brightness, ECO Function

Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 0

Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 1

Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 2


Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 3
Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 4
Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 5

Full Auto Reflect Portable Metallurgical Microscope Semi APO BF+DF+DIC+PL A13.1095-R 6

A13.1095 Meta+A1:E75lect, Semi-APO, BF+DF+DIC+PL A13.1095 Cata.No.
-R -TR
Optical System NIS45 Infinite Optical System
Observation Method Bright Field
Dark Field
Polarizing
DIC
Main Body BH Manual Body + Halogen Illumination.     A54.1090-BH
BL Manual Body + LED Illumination.     A54.1090-BL
ATH Semi-Auto Body + Halogen Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust
A54.1090-ATH
ATL Semi-Auto Body + LED Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust
A54.1090-ATL
Head Seidentopf Binocular Head, Inclined 30°,
Interpupillary Distance 47-78mm
A53.1090-B
Seidentopf Trinocular Head, Inclined 30°,
Interpupillary Distance 47-78mm,
3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100
A53.1090-T

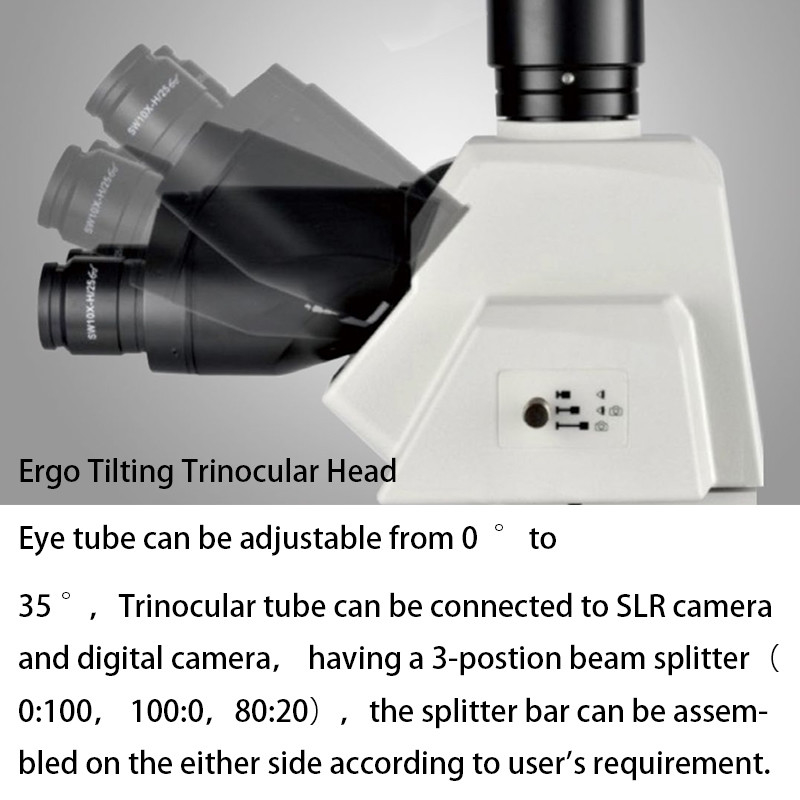

Ergo Tilting Trinocular Head, Inclination 0°~35°,
Interpupillary Distance 47-78mm,
3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100
A53.1090-TT
Eyepiece SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm ●● ●● A51.1090-1025
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1022
EW12.5x/16mm, High Eyepoint A51.1090-12516
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1516
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-2012
Nosepiece Manual Nosepiece, Sextuple, Backward     A54.1091-6M
Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust     A54.1091-6C
Auto Coded Nosepiece, Sextuple, Backward,
Motorized Switch Objectives, Controled By:

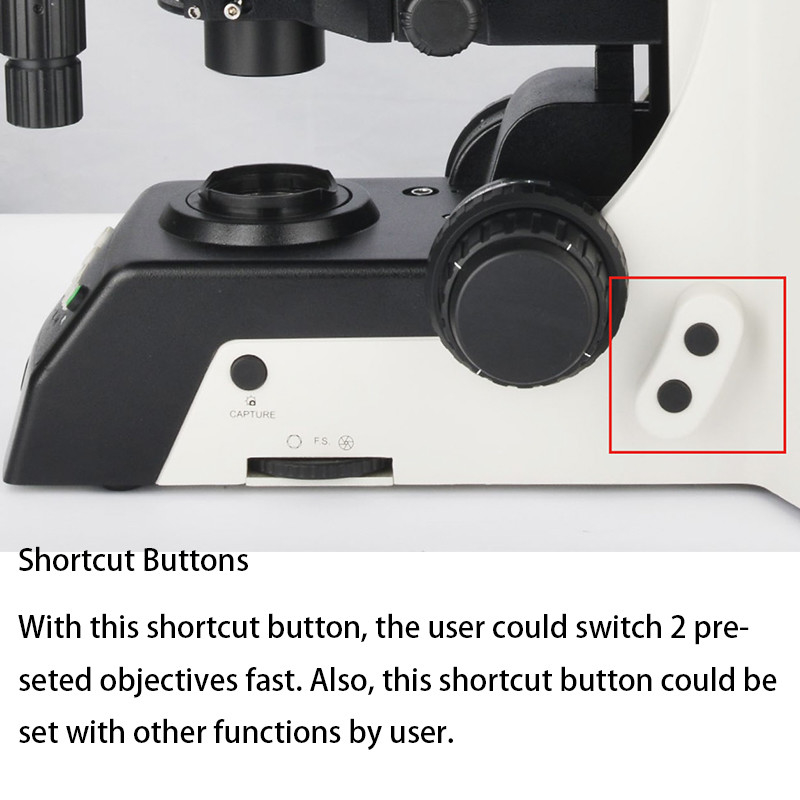

1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly
2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them
A54.1091-6A
With Slot For Polarizing Compensator Slider Or DIC Slider
Protect Cover For Nosepiece Holes A54.1091-C
NIS45 N-MPFN
Infinity Plan
BF/DF Semi-APO Metallurgical Objective
BD 5x/0.15, W.D.20mm, No Cover Glass A5M.1091-5
BD 10x/0.3, W.D.11mm, No Cover Glass A5M.1091-10
BD 20x/0.45, W.D.3mm, No Cover Glass A5M.1091-20A
BD LWD 20x/0.4, W.D.12mm, No Cover Glass A5M.1091-20
BD LWD 50x/0.5, W.D.10.6mm, No Cover Glass A5M.1091-50
LWD 100x/0.8, W.D.3.5mm, No Cover Glass A5M.1091-100
NIS45
BF/DF APO
BD 50x/0.8, W.D.1mm, No Cover Glass A5M.1092-50
BD 100x/0.9, W.D.1mm, No Cover Glass A5M.1092-100
Working Stage
For Metallurgical Microscope
Motorized X/Y/Z Working Stage, Size 275x239x44.5mm, Move Range 125x75mm, Minimum step length 0.1um, repeat positioning accuracy ±1.5um, maximum speed 20nm/s, soft limit + mechanical limit + photoelectric switch limit, Z axis repeat positioning accuracy average: ±1.5um, near focus ±0.1um, Z Maximum axis speed 10r/s, three-dimensional controllable remote sensing, four-speed speed, USB2.0 & RS232 communication interface, communication speed 9600, Including Control Stick, Controller Box A54.1095
Condenser LWD Condenser, N.A.0.65, W.D.10.2mm, Center Adjustable, Dual Condenser Lifting Handle A5M.1095
Focusing Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm,Can Exchange Hand Wheel Between Left/Righ,
Max Sample Space 76mm
Max Sample Space 56mm
Reflect
Light Source
Reflect Epi Metallurgical Illuminator, Turret Disc With 6 Positions For Filter Block, Kohler Illumination A5M.1090
12V100W Halogen Lamp Housing A5M.1090-100W
BF/DF View Block A5M.1090-BD
BF1 View Block A5M.1090-B1
BF2 View Block A5M.1090-B2
Filter For Reflect
Light Source
Filter Blue A56.1093-B
Fibler Green A56.1093-G
Filter Yellow A56.1093-Y
Filter Forested A56.1093-F
Polarizing Polarizer For Reflect Light Source A5P.1090-RP
Analyzer For Reflect Light Source A5P.1090-RA
DIC Blank Slider A5P.1090-E

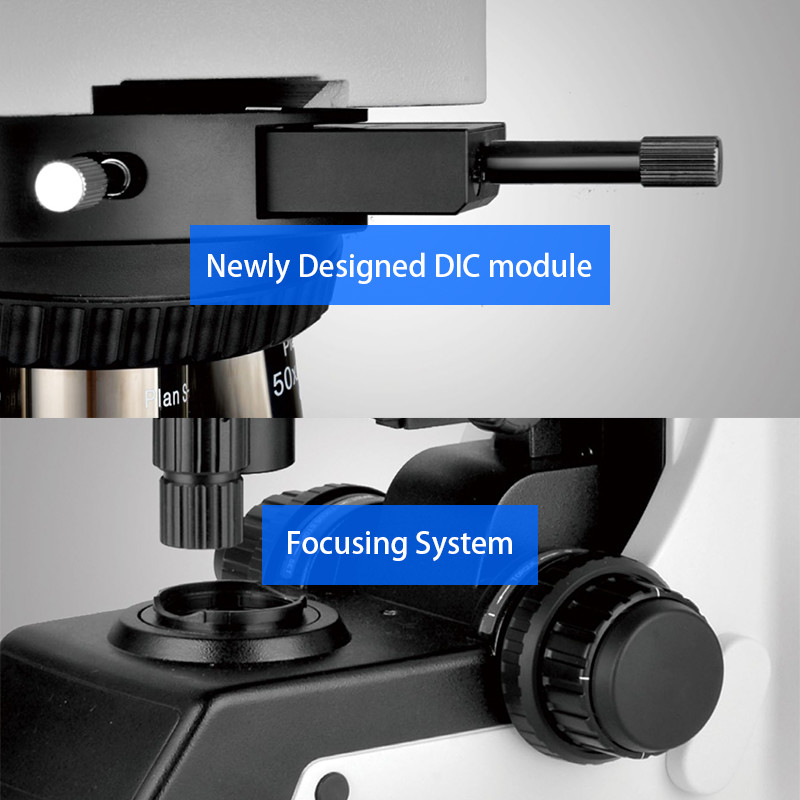

Nomarski DIC Slider For Reflect Light Source A5M.1090-DIC
Transmit
Light Source
Transmit Kohler Illumination, Brightness Adjustable,
12V100W Halogen, External Lamp House
  A56.1090-12V100W
Transmit Kohler Illumination, Brightness Adjustable,
3W S-LED, Built-in Main Body
  A56.1090-3WLED

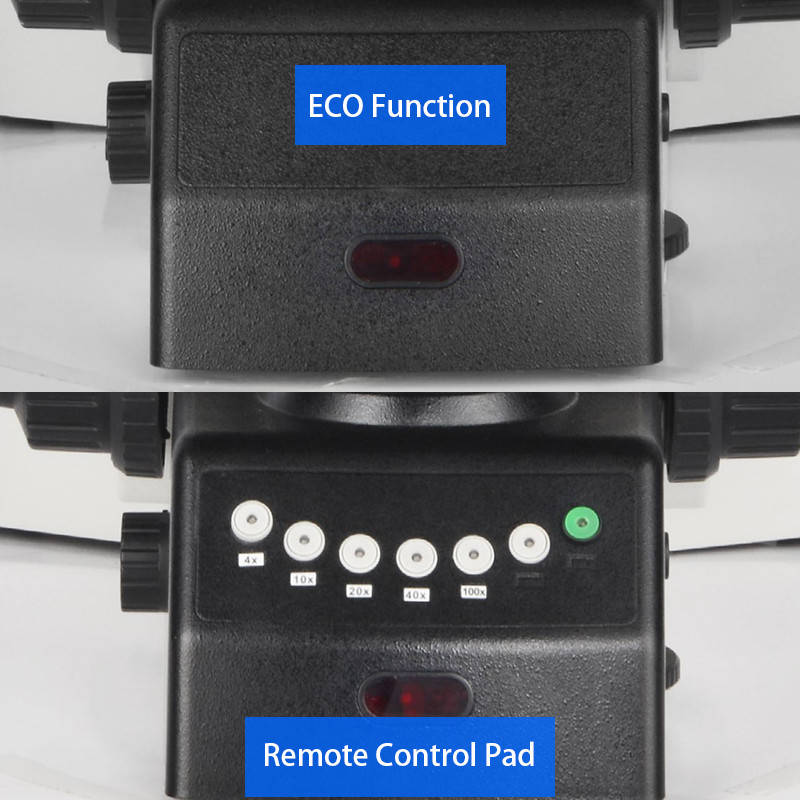

ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy   A56.1090-ECO
Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected

A13.1095 Upgradeable To Auto Brightness Adjust, Must Upgrade To A54.1091-6C Coded Nosepiece At Same Time
  A56.1090-AB
Filter For Transmit Light Source Filter Holder On Base, Can Hold 3 Filters   A56.1092-H
Filter LBD   A56.1092-LBD
Filter Green   A56.1092-G
Filter Yellow   A56.1092-Y
Filter ND6   A56.1092-ND6
Filter ND25   A56.1092-ND25
Adapter Eyepiece Adapter Dia.23.2mm A55.1090-E
C-Mount 1.0x A55.1090-1.0x
C-Mount 0.5x A55.1090-0.5x
Software NOMIS Basic Image Processiing Software A30.1090
Other Accessories Working Stage Holder Bracket A54.1096
Adapter To Adjust Eye Position A54.1096-A1
Adapter To Lower The Stage Position 1" A54.1096-A2
Immersion Oil A50.1090-01
Allen Wrench A50.1090-02
Power Cord A50.1090-03
Short Eye Cover, For Eyepiece A50.1090-04
Long Eye Cover, For Eyepiece A50.1090-05
Eyepiece Micrometer, Cross A50.1090-06
Adapter Ring To Install Eyepiece Micrometer A50.1090-07
USB Cable A50.1090-08
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable
