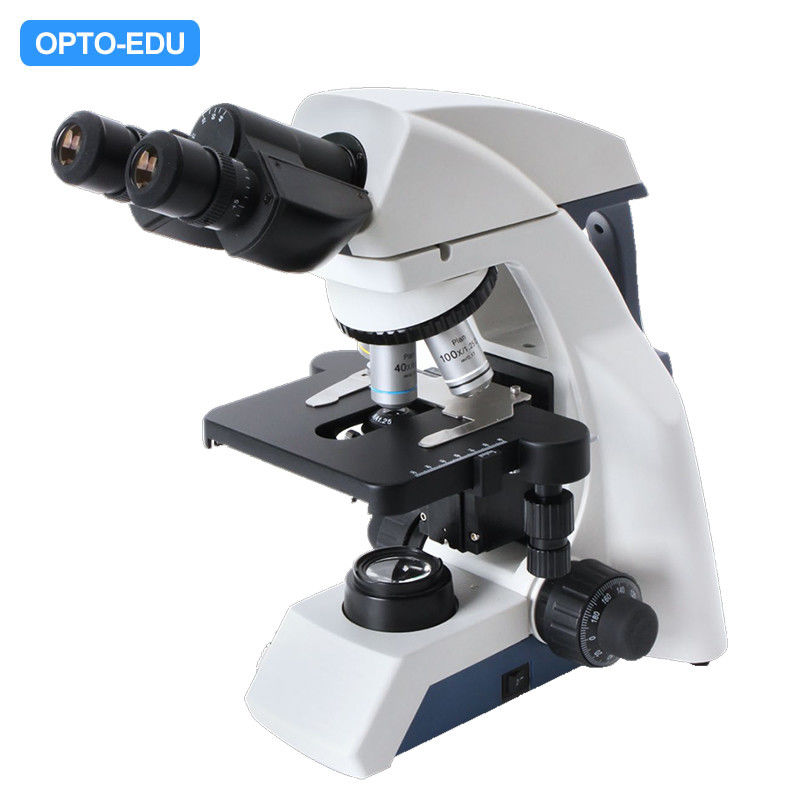

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity

Products - Compound Optical Microscope
  • Highlight

    opto edu semi plan microscope

    ,

    quintuple infinity semi plan microscope

    ,

    opto edu microscope lab

  • Eyepiece
    EW10x/20mm, Diopter Adjustable, Dia.23.2mm
  • Objective
    Infinity S-Plan Achromatic Objective
  • Focusing
    Coaxial Coarse And Fine Focusing Knob
  • Working Stage
    Double Layers Mechanical Stage 150x140mm
  • Place of Origin
    China
  • Brand Name
    CNOEC
  • Certification
    CE
  • Model Number
    A12.1037
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    $1-$1000
  • Packaging Details
    Carton
  • Delivery Time
    1month
  • Payment Terms
    T/T,West Union and Paypal
  • Supply Ability
    10000

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity

  • A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity
Get Price Contact Now

Binocular & Trinocular, WF10x/20, Quintuple, Infinity Semi-Plan 4x10x40x100x, Mechanical Stage 150x140/75x52mm, Abbe Condenser N.A.1.25, Coaxial Coarse & Fine Focusing, 3W LED



A12.1037, A12.1038 Laboratory Microscope A12.1037 A12.1038
-B -T -B -T
Optical System Infinity Optical System ● ● ● ●
Observation Method Bright Field ● ● ● ●
Dark Field ○ ○ ○ ○
Phase Contrast ○ ○ ○ ○
Epi-Fluorscence ○ ○ ○ ○
Polarizing ○ ○ ○ ○
Head Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm, Eyepiece Tube Dia.23.2mm ● 　 ● 　
Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, Eyepiece Tube Dia.23.2mm,
Light Split Switchable E0:P100/E100:P0		 　 ● 　 ●
　 WIFI Digital Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm, Eyepiece Tube Dia.23.2mm
5.0M Digital Camera Built-in, WIFI Transmission Rate 1680p, Support Android, IOS, Windows, Stand-Alone Use, Online Interactives Access.		 ○ ○ ○ ○
Eyepiece EW10x/20mm, Diopter Adjustable, Dia.23.2mm ● ● ● ●
Nosepiece Quintuple Nosepiece, Dovetail Interface ● ● - -
Coded Quintuple Nosepiece, Dovetail Interface - - ● ●
Infinity S-Plan
Achromatic Objective		 4x/0.10, W.D.28mm ● ● ● ●
10x/0.25, W.D.5.8mm ● ● ● ●
40x/0.65(S), W.D.0.43mm ● ● ● ●
100x/1.25(S.Oil), W.D.0.13mm ● ● ● ●
Infinity Plan Achromatic
Objective		 4x/0.10, W.D.28.0mm ○ ○ ○ ○
10x/0.25, W.D.10mm ○ ○ ○ ○
40x/0.65(S), W.D.0.7mm ○ ○ ○ ○
100x/1.25(S.Oil), W.D.0.18mm ○ ○ ○ ○
Focusing Coaxial Coarse and Fine Focusing Knob, Left Hand Has Height Limit Function, Right Hand Has Coarse
Motion Adjustment Function .Coarse Stroke 37.7mm per Rotation, Fine Division 0.002mm, Fine Stroke
0.2mm per Rotation, Moving Range 20mm		 ● ● ● ●
Working Stage Double Layers Mechanical Stage 150x140mm, Moving Range 75x52mm ● ● ● ●
Condenser Abbe Condenser N.A.1.25 ● ● ● ●
Illumination 3W LED Illumination, Brightness Adjustable, Green Filter ● ● ● ●
Kohler Illumination ○ ○ ○ ○
LCD Screen Magnification, Brightness, Color Temperature - - ● ●
Dark Field Dark Field Condenser, Dry ○ ○ ○ ○
Dark Field Condenser, Oil ○ ○ ○ ○
Phase Contrast Phase Slider For 10x-40x ○ ○ ○ ○
Phase Slider For 100x ○ ○ ○ ○
Fluorescence LED Fluorescent Illumination ○ ○ ○ ○
Mercury Fluorescent Illumination ○ ○ ○ ○
Photo Adapter 1.0x C-Mount ○ ○ ○ ○
0.5x C-Mount ○ ○ ○ ○
Power Supply AC 100-240V,50/60Hz ● ● ● ●
USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank, Out Door Freely ○ ○ ○ ○
LCD Screen LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. - - ● ●
Dimensions 220(W)x290(D)x472(H) mm ● ● ● ●
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable





A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity 0

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity 1

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity 2

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity 3

A12.1037 OPTO EDU Semi Plan Microscope Lab Quintuple Infinity 4
