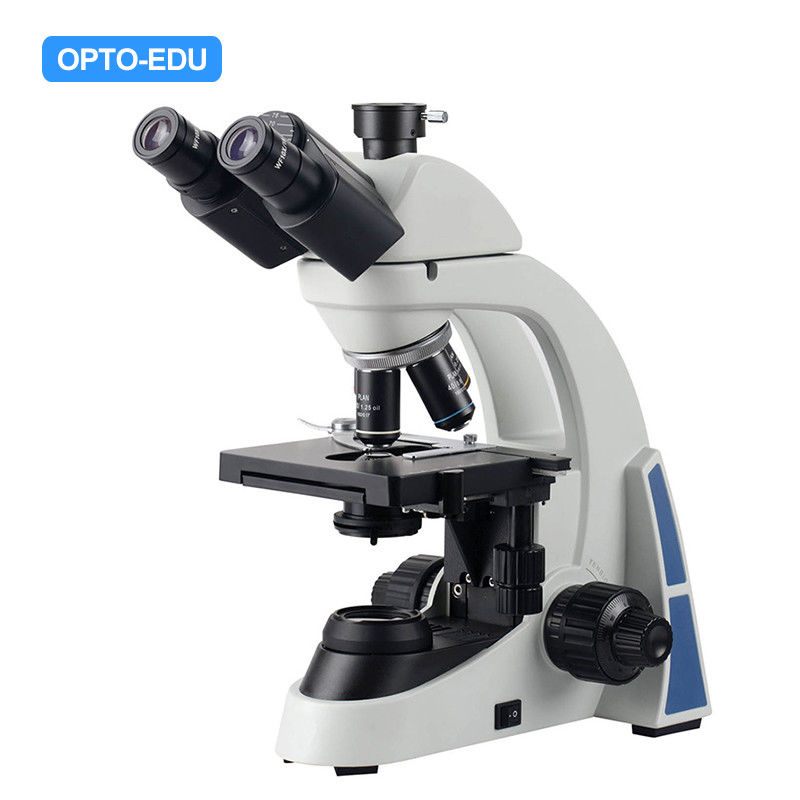

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece

Products - Compound Optical Microscope
  • Highlight

    18mm eyepiece opto edu microscope

    ,

    backward nosepiece opto edu microscope

    ,

    opto edu microscope laboratory equipment

  • Eyepiece
    WF10x/18mm
  • Nosepiece
    Backward, Quadruple Nosepiece
  • Condenser
    Abbe N.A.1.25, With Iris Diaphragm, Fixed But Center Adjustable
  • Working Stage
    Double Layer Mechanical Stage, Size 132*140mm
  • Place of Origin
    China
  • Brand Name
    CNOEC
  • Certification
    CE
  • Model Number
    A12.0909
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    $1-$1000
  • Packaging Details
    Carton
  • Delivery Time
    1month
  • Payment Terms
    T/T,West Union and Paypal
  • Supply Ability
    10000

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece

  • A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece
  • A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece
  • A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece
Get Price Contact Now

Monocular & Binocular & Trinocular, WF10x/18, Quarduple, Achromatic 4x10x40x100x, Double Layer Mechanical Stage, Size 132*140mm,3W LED





A12.0909 Biological Microscope A B C A1 B1 C1
Head Monocular Head, 30° Inclined, ● 　 　 ● 　 　
Binocular Head, 30° Inclined, Diopter Adjustable +/-5°, Interpupillary Distance 50~75mm 　 ● 　 　 ● 　
Trinocular Head, 30° Inclined, Diopter Adjustable +/-5°,Interpupillary Distance 50~75mm, Light Split Ratio 80:20 　 　 ● 　 　 ●
Objective Achromatic 4x,10x,40x(S),100x(O,S) ● ● ● 　 　 　
Plan 4x,10x,40x(S),100x(O,S) 　 　 　 ● ● ●
Eyepiece WF10x/18mm
Nosepiece Backward, Quadruple Nosepiece
Working Stage Double Layer Mechanical Stage, Size 132*140mm, Moving Range 50*76mm, Precision 0.1mm
Condenser Abbe N.A.1.25, With Iris Diaphragm, Fixed But Center adjustable
Focusing Low Position Designed, Coaxial Coarse & Fine Focusing, Coarse Focusing Range 25mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Upper Safety Stop
Light Source 3W LED High Brightness
Power External Wide Voltage AC Adapter, 100V-240V_AC50/60Hz Input, DC6V 2A Output.
External Wide Voltage AC Adapter, 100V-240V_AC50/60Hz Input, DC7.5V 2A Output. (Optional)
Internal Switch 100V-240V_AC50/60Hz (Optional)
Internal 4 Pieces Rechargeable Batteries, External Wide Voltage Battery Charger, 100V-240V_AC50/60Hz Input, DC6V 1A Output. (Optional)
A12.0909 Biological Microscope Optional Accessories
Eyepiece PL10x/18mm with Pointer, High-Eyepiont E51.0906-1018P
PL10x/18mm with Reticle, High Eyepoint E51.0905-1018PR
Adapter C-Mount 1.0x A55.0926-10
C-Mount 0.35x A55.0926-35
C-Mount 0.50x A55.0926-50
C-Mount 0.67x A55.0926-67



A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece 0

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece 1

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece 2

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece 3

A12.0909 18mm Eyepiece Opto Edu Microscope Quadruple Achromatic Backward Nosepiece 4
