A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective

A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective
A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective

Large Image :  A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective

Product Details:
Place of Origin: China
Brand Name: CNOEC
Certification: CE
Model Number: A12.0806
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1-$1000
Packaging Details: Carton
Delivery Time: 1month
Payment Terms: T/T,West Union and Paypal
Supply Ability: 10000
Detailed Product Description
Eyepiece: WF10x/20mm Nosepiece: 4 Holes Revolving Nosepiece, Inward
Objective: 195 Plan Achromatic Objective Working Stage: Double Layer Mechanical Stage, Size: 160x142mm
High Light:

195 plan achromatic objective biological microscope

,

wf10x eyepiece biological microscope

,

opto edu microscope for laboratory use



Binocular & Trinocular, WF10x/20mm, WF16x/15, Quarduple, Plan 4x10x40x100x, Mechanical Stage 160x142/76x52mm, With Heater Temprature 20-50°, Heating Electric Power 12V36W, Abbe N.A.1.25, 3W LED

A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective 0

A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective 1

A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective 2

A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective 3

A12.0806 Heating Stage Biological Microscope Specification PB PT

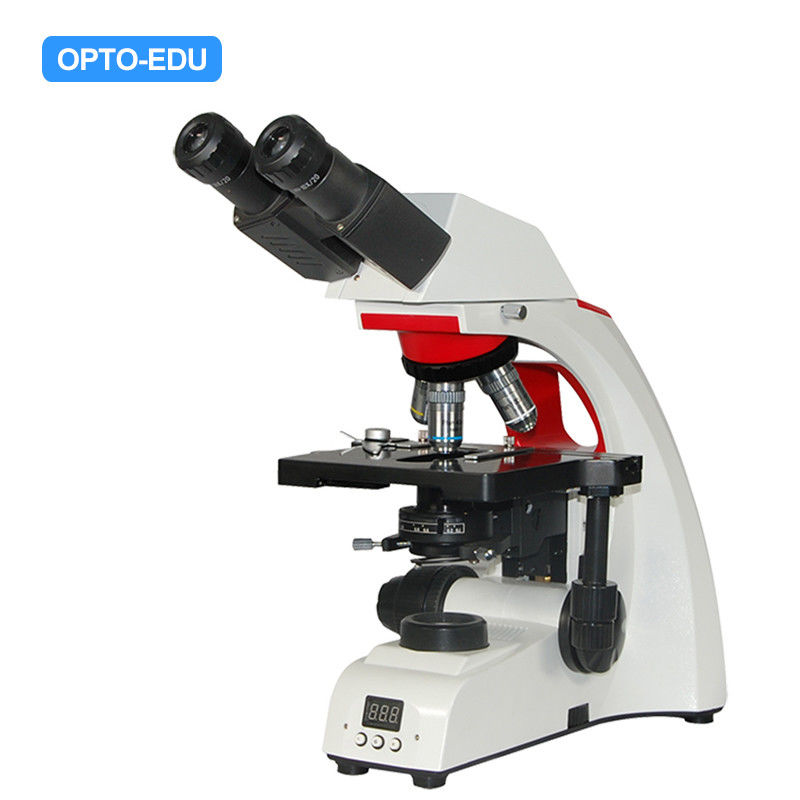

Head Compensation Binocular Head, 30° Inclined, Interpupillary Distance 48-75mm

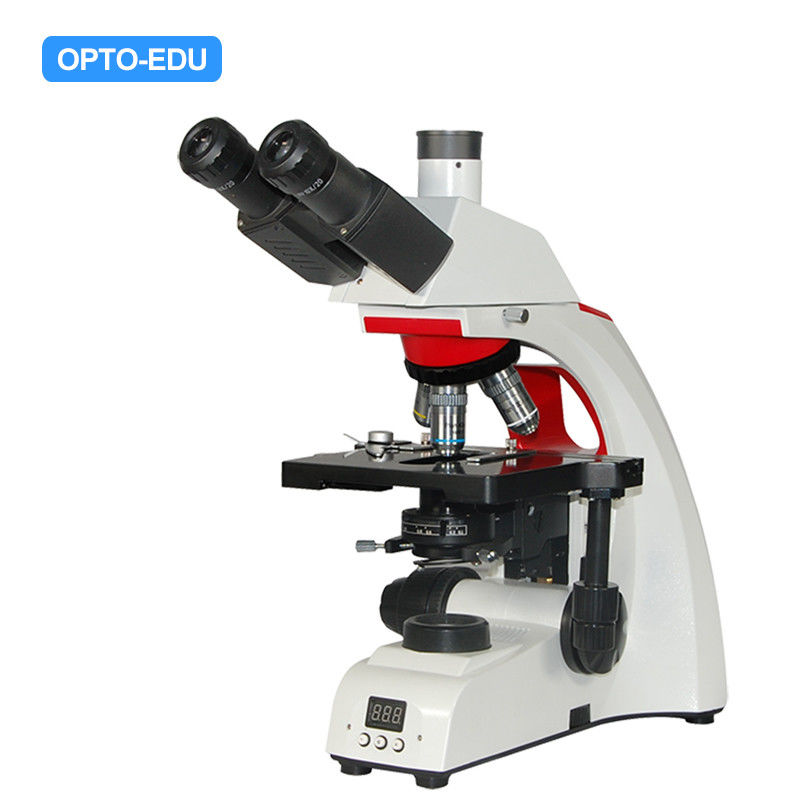

Compensation Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm
Eyepiece WF10X/20mm
WF16X/15mm
195 Plan Achromatic Objective Plan 4x
Plan 10x
Plan 40x (s)
Plan 100x (S, Oil)
Nosepiece 4 Holes Revolving Nosepiece, Inward
Focusing System Coaxial Coarse & Fine Focusing Knob, Adjustable, Coarse Focusing Range 22mm, Fine Focusing Graduation 0.002mm
Stage Double Layer Mechanical Stage, Size: 160x142mm
Moving Range: 76x52mm
Can Hold 2 Slides
Temperature Control Range: Room Temperature 20℃-50℃
Temperature Control Accuracy: ﹤±1℃
Heating Power: 12V
Power: 36W
Condenser Abbe Condenser N.A.=1.25, Iris Diaphragm, Center Adjustable, With Height Adjust Knob
Power Switch Power, Wide Voltage AC90-240V
Light Source Bottom Light, LED 3W/1A, Stepless Adjustable Light, No Screen Flashing
Dimming System Digital Circuits, Precision Stepless Adjustable Light, No Screen Flash
Packing Foam + Carton
Adapter 0.5x C-Mount
0.65x C-Mount
1x C-Mount
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
