Trinocular Manual Transmit Reflect Optical Metallurgical Microscope

Products - Metallurgical Optical Microscope

Highlight

trinocular optical metallurgical microscope
,
manual transmit optical metallurgical microscope
,
manual reflect optical metallurgical microscope
Observation Method

Bright Field, Dark Field, Polarizing, DIC
Main Body

BH Manual Body + Halogen Illumination
Head

Ergo Tilting Trinocular Head, Inclination 0°~35°
Eyepiece

SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm
Nosepiece

Manual Nosepiece, Sextuple, Backward
Objective

N-MPFN Infinity Plan BF/DF Semi-APO Metallurgical Objective
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A13.1091-TR
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

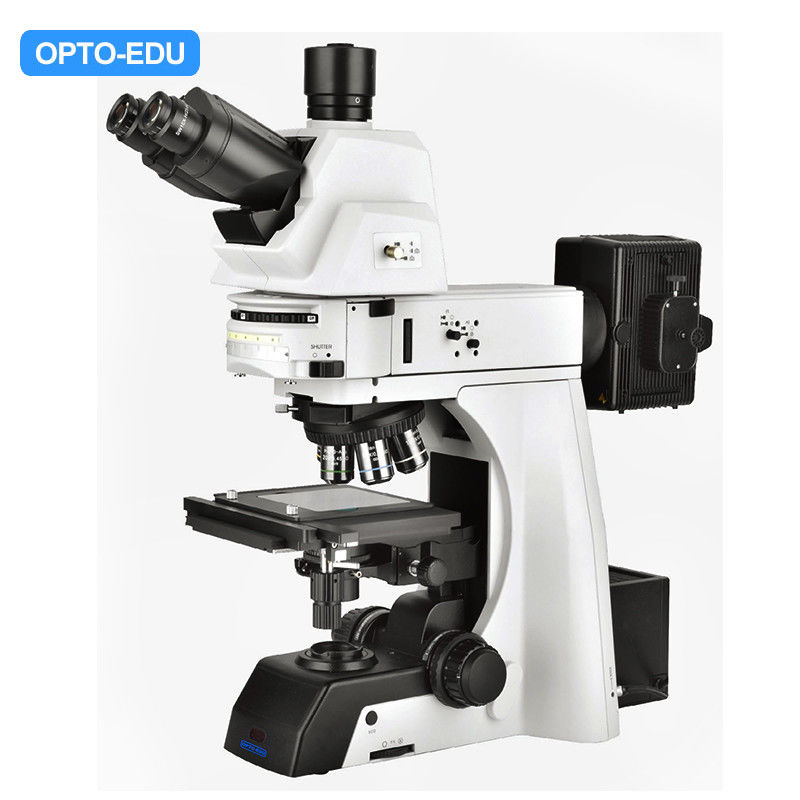

Trinocular Manual Transmit Reflect Optical Metallurgical Microscope

Name: Trinocular Manual Transmit Reflect Optical Metallurgical Microscope
Brand: Opto-Edu (Beijing) Co., Ltd.
SKU: A13.1091-TR
Price: 500.00 USD
Availability: InStock

button button

Get Price Contact Now

Tilting Trinocular 0-35°, EW10x/25mm, Manual Sextuple Nosepiece, NIS45 Infinity Plan Semi-APO BD 5x10x, LWD 20x50x100x, 4" Stage 210x170/ 102x102mm, LWD Condenser N.A.0.65, Coaxial, Reflect 12V100W Halogen Illuminator, BD/BF1/BF2 Blocks, Filter B/G/Y/F, Reflect Polarizer & Analyzer, Reflect DIC Slide, Transmit 12V100W Halogen Kohler Illumination, ECO Function

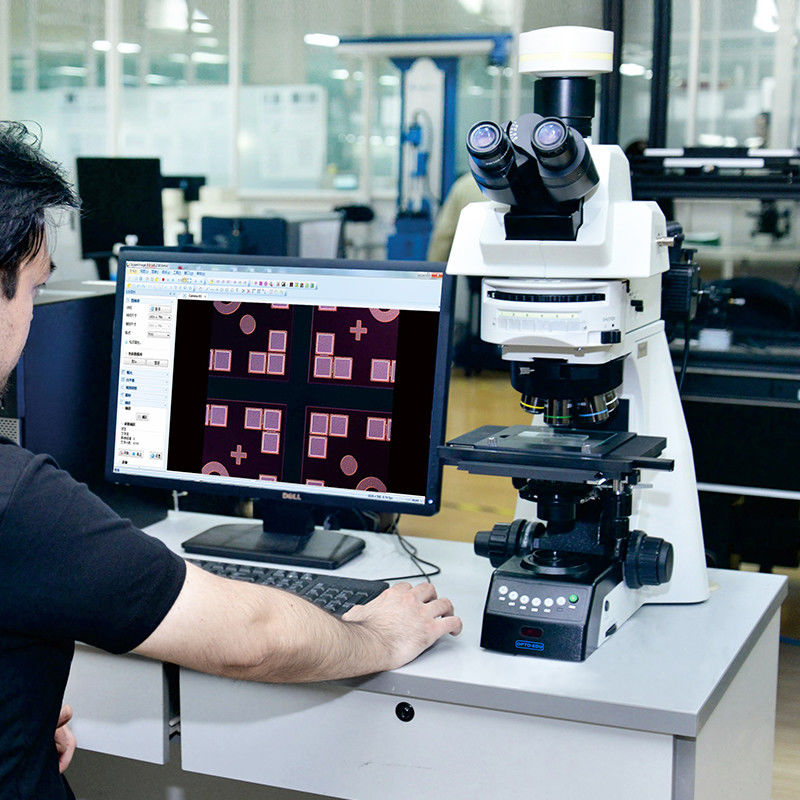

Trinocular Manual Transmit Reflect Optical Metallurgical Microscope 1

Trinocular Manual Transmit Reflect Optical Metallurgical Microscope 2

Trinocular Manual Transmit Reflect Optical Metallurgical Microscope 3

A13.1091, A13.1093 Metallurgical Microscope, BF/DF, DIC, PL, APO		A13.1091		A13.1093		Cata.No.
		-R	-TR	-R	-TR
Optical System	NIS45 Infinite Optical System	●	●	●	●
Observation Method	Bright Field	●	●	●	●
	Dark Field	●	●	●	●
	Polarizing	●	●	●	●
	DIC	●	●	●	●
Main Body	BH Manual Body + Halogen Illumination.	●	●			A54.1090-BH
	BL Manual Body + LED Illumination.	○	○			A54.1090-BL
	ATH Semi-Auto Body + Halogen Illumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust			●	●	A54.1090-ATH
	ATL Semi-Auto Body + LED Illumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust			○	○	A54.1090-ATL
Head	Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm	○	○	○	○	A53.1090-B
	Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	○	○	○	○	A53.1090-T
	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	●	●	●	●	A53.1090-TT
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●●	●●	●●	●●	A51.1090-1025
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	A51.1090-1022
	EW12.5x/16mm, High Eyepoint	○	○	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	A51.1090-2012
Nosepiece	Manual Nosepiece, Sextuple, Backward	●	●			A54.1091-6M
	Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust	○	○			A54.1091-6C

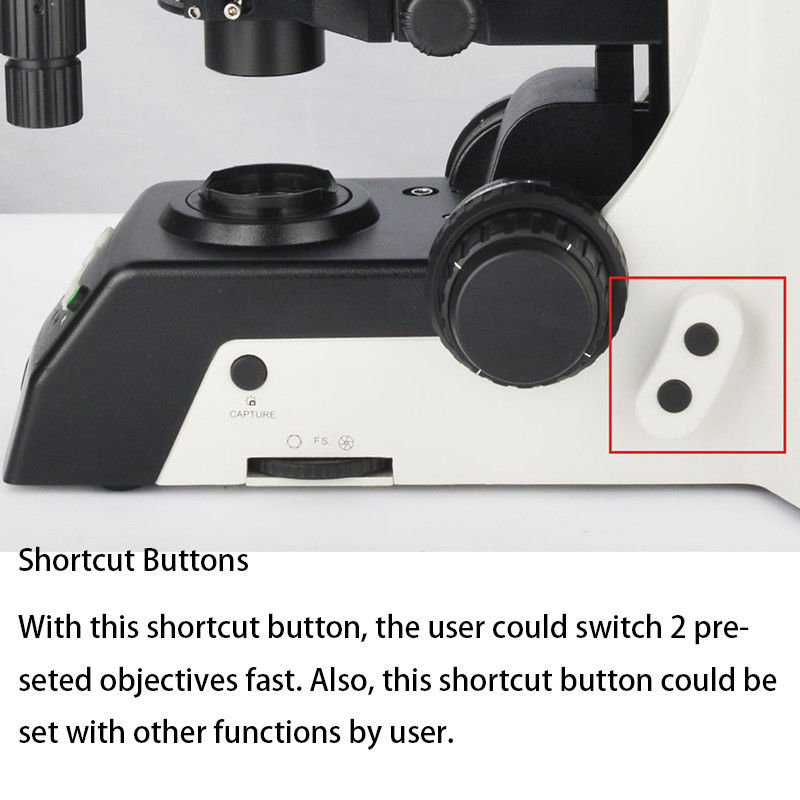

	Auto Coded Nosepiece, Sextuple, Backward, Motorized Switch Objectives, Controled By: 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them			●	●	A54.1091-6A
	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●	●	●
	Protect Cover For Nosepiece Holes	●	●	●	●	A54.1091-C
NIS45 N-MPFN Infinity Plan BF/DF Semi-APO Metallurgical Objective	BD 5x/0.15, W.D.20mm, No Cover Glass	●	●	●	●	A5M.1091-5
	BD 10x/0.3, W.D.11mm, No Cover Glass	●	●	●	●	A5M.1091-10
	BD 20x/0.45, W.D.3mm, No Cover Glass	○	○	○	○	A5M.1091-20A
	BD LWD 20x/0.4, W.D.12mm, No Cover Glass	●	●	●	●	A5M.1091-20
	BD LWD 50x/0.5, W.D.10.6mm, No Cover Glass	●	●	●	●	A5M.1091-50
	LWD 100x/0.8, W.D.3.5mm, No Cover Glass	●	●	●	●	A5M.1091-100
NIS45 BF/DF APO	BD 50x/0.8, W.D.1mm, No Cover Glass	○	○	○	○	A5M.1092-50
NIS45 BF/DF APO	BD 100x/0.9, W.D.1mm, No Cover Glass	○	○	○	○	A5M.1092-100
Working Stage For Metallurgical Microscope	4" Working Stage, Size 210x170mm, Move Range 4“x4” (102x102mm), Right Handle Optional, Hard Oxide Surface, Y Can Be Locked	●	●	●	●	A54.1093-L
	4" Working Stage, Size 210x170mm, Move Range 4“x4” (102x102mm), Left Handle Optional, Hard Oxide Surface, Y Can Be Locked	○	○	○	○	A54.1093-R
	Round Crystal Holder, For 2",3",4" Diameter Crystal	●	●	●	●	A54.1093-H1
	Wafer Holder	●	●	●	●	A54.1093-H2
	Glass Substrate, Size 145(X)x152(Y)mm	●	●	●	●	A54.1093-H3
	Metal Stage Plate, Size 145(X)x152(Y)mm	●	●	●	●	A54.1093-H4
Condenser	LWD Condenser, N.A.0.65, W.D.10.2mm, Center Adjustable, Dual Condenser Lifting Handle	●	●	●	●	A5M.1095
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm,Can Exchange Hand Wheel Between Left/Righ,	●	●	●	●
	Max Sample Space 76mm	●		●
	Max Sample Space 56mm		●		●
Reflect Light Source	Reflect Epi Metallurgical Illuminator, Turret Disc With 6 Positions For Filter Block, Kohler Illumination	●	●	●	●	A5M.1090
	12V100W Halogen Lamp Housing	●	●	●	●	A5M.1090-100W
	BF/DF View Block	●	●	●	●	A5M.1090-BD
	BF1 View Block	●	●	●	●	A5M.1090-B1
	BF2 View Block	●	●	●	●	A5M.1090-B2
Filter For Reflect Light Source	Filter Blue	●	●	●	●	A56.1093-B
	Fibler Green	●	●	●	●	A56.1093-G
	Filter Yellow	●	●	●	●	A56.1093-Y
	Filter Forested	●	●	●	●	A56.1093-F
Polarizing	Polarizer For Reflect Light Source	●	●	●	●	A5P.1090-RP
Polarizing	Analyzer For Reflect Light Source	●	●	●	●	A5P.1090-RA
DIC	Blank Slider	●	●	●	●	A5P.1090-E

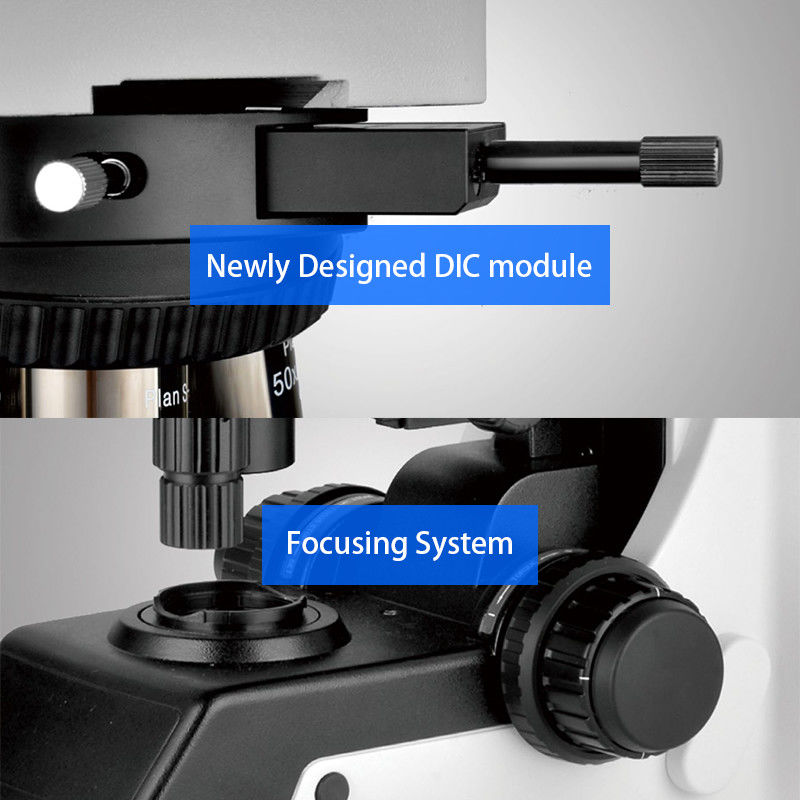

DIC	Nomarski DIC Slider For Reflect Light Source	●	●	●	●	A5M.1090-DIC
Transmit Light Source	Transmit Kohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House		●		●	A56.1090-12V100W
	Transmit Kohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body		○		○	A56.1090-3WLED

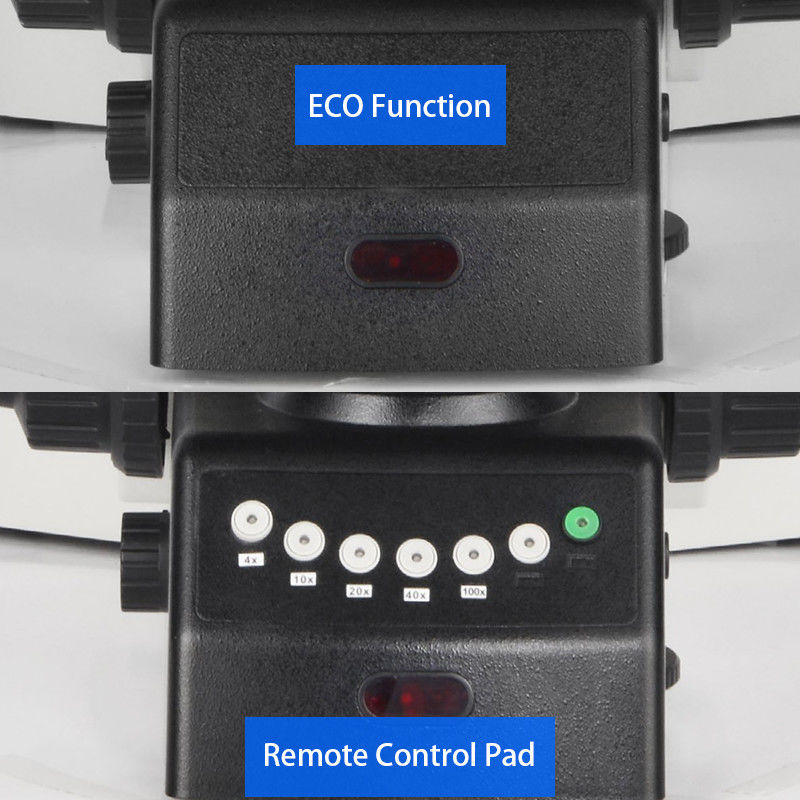

	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy		●		●	A56.1090-ECO
	Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected A13.1091 Upgradeable To Auto Brightness Adjust, Must Upgrade To A54.1091-6C Coded Nosepiece At Same Time		○		●	A56.1090-AB
Filter For Transmit Light Source	Filter Holder On Base, Can Hold 3 Filters		●		●	A56.1092-H
	Filter LBD		●		●	A56.1092-LBD
	Filter Green		●		●	A56.1092-G
	Filter Yellow		●		●	A56.1092-Y
	Filter ND6		●		●	A56.1092-ND6
	Filter ND25		●		●	A56.1092-ND25
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	○	○	A55.1090-E
	C-Mount 1.0x	○	○	○	○	A55.1090-1.0x
	C-Mount 0.5x	○	○	○	○	A55.1090-0.5x
Software	NOMIS Basic Image Processiing Software	○	○	○	○	A30.1090
Other Accessories	Working Stage Holder Bracket	●	●	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	○	○	A54.1096-A2
	Immersion Oil	○	○	○	○	A50.1090-01
	Allen Wrench	●	●	●	●	A50.1090-02
	Power Cord	●	●	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	○	○	A50.1090-07
	USB Cable	○	○	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable
