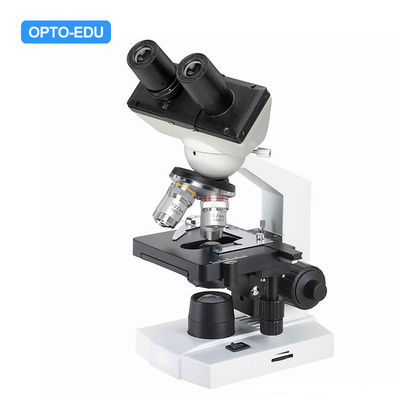

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student

Products - Biological Microscope
  • Highlight

    OPTO EDU binocular compound microscope

    ,

    Sliding binocular light microscope

    ,

    Student binocular compound microscope

  • Head
    Sliding Binocular Head, 45° Inclined, 360° Rotatable
  • Eyepiece
    Wide Field WF10x/18mm
  • Nosepiece
    Quadruple Nosepiece
  • Achromatic Objective
    4x/0.10, 10x/0.25, 40x/0.65(S), 100x/1.25(S,Oil)
  • Magnification
    40x~1000x
  • Stage
    Double Layer Mechanical Stage, 110*120mm, Moving Range 70*20mm
  • Focusing
    Coaxial Coarse & Fine Focusing
  • Condenser
    Abbe Condenser N.A.1.2, With Iris Diaphragm, With Blue Filter
  • Light Source
    LED Lamp Illumination 1W, Brightness Adjustable
  • Spare Parts
    Dust Cover, Spare Bulb & Fuse
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.1009
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student

Get Price Contact Now
  • High Quality Compact Design Student Biological Microscope
  • Monocular, Binocular Head 45° Inclined, 360° Rotatable, WF10x/18mm Eyepiece
  • 3/4 Holes Nosepiece With Achromatic Objective 4x10x40x100x
  • Mechnical Stage, Abbe Condenser, Coaxial Coarse & Fine Focuing
  • Coaxial Coarse & Fine Focuing Konb, Light Source Brightness Adjustable
OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 0

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 1

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 2

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 3

A11.1009-D Monocular Head

A11.1009-E Binocular Head


OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 4

Achromatic Objectives

Double Layer Mechanical Stage

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 5

Brightness Adjustable

Abbe Condenser N.A.1.2, With Iris Diaphragm

OPTO EDU A11.1009-E Sliding Binocular Compound Microscope For Student 6
Items A11.1009 Student Biological Microscope M B
Head Monocular Head, 45° Inclined, 360° Rotatable ● 　
Sliding Binocular Head, 45° Inclined, 360° Rotatable 　 ●
Eyepiece Wide Field WF10x/18mm ● ●
WF5x ○ ○
WF16x ○ ○
WF10x Eyepiece With Pointer ○ ○
Nosepiece Triple Nosepiece ● 　
Quadruple Nosepiece 　 ●
Achromatic Objective 4x/0.10, 10x/0.25, 40x/0.65(S) ● 　
4x/0.10, 10x/0.25, 40x/0.65(S), 100x/1.25(S,Oil) 　 ●
20x 60x ○ ○
Magnification 40x~400x ● 　
40x~1000x 　 ●
Stage Double Layer Mechanical Stage, 110*120mm, Moving Range 70*20mm ● ●
Focusing Coaxial Coarse & Fine Focusing ● ●
Condenser Abbe Condenser N.A.1.2, With Iris Diaphragm, With Blue Filter, Rack & Pinion Up/Down Adjustment ● ●
Light Source Incandescent Lamp Illumination 15W, Brightness Adjustable ● 　
LED Lamp Illumination 1W, Brightness Adjustable 　 ●
Mirror ○ ○
Spare Parts Dust Cover, Spare Bulb & Fuse ● ●
Note: "●"In Table Is Standard Outfits, "○" Is Optional Accessories.
