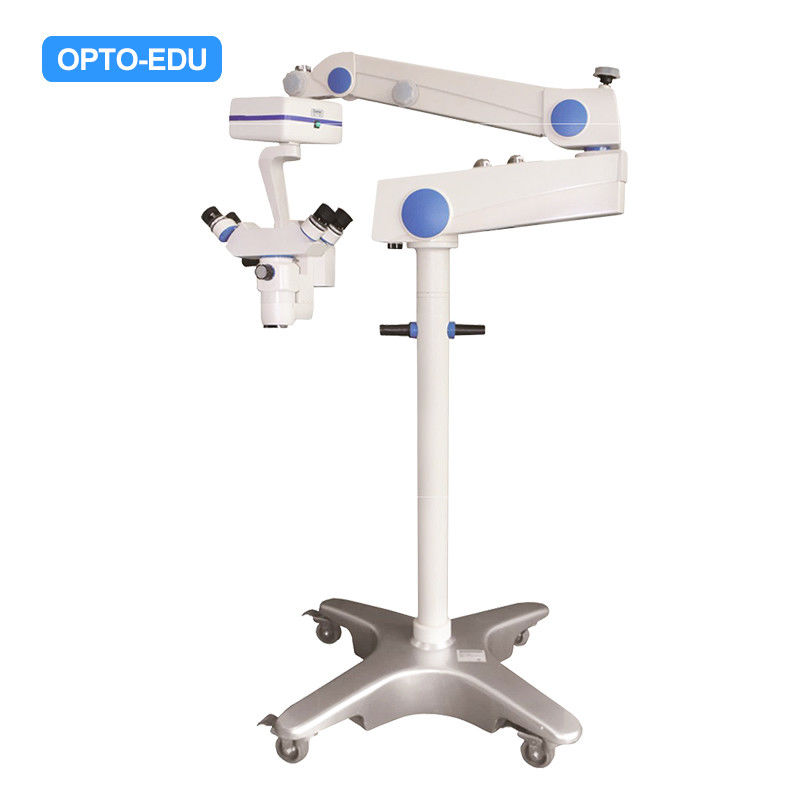

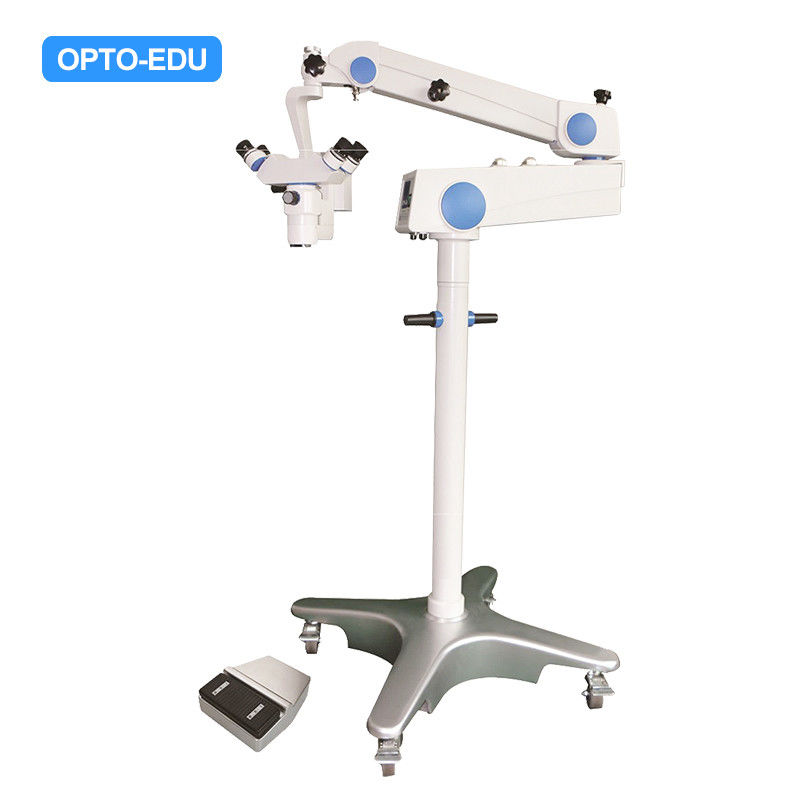

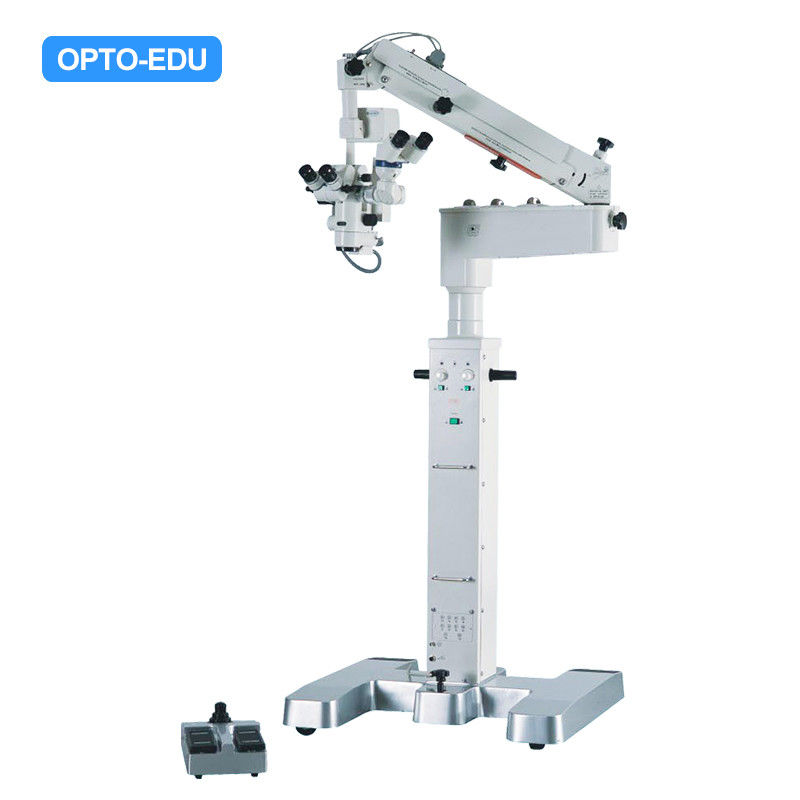

A41.19041, A41.1942 Series Operating Microscopes, is advanced high quality series. It use fibre-optic cable for coaxial illumination, with 3 steps zoom body, has total magnification 2.5x~18x, featured with flexible handling and easy operation. It is widely used in hospital for Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy and etc.
--2 People 2 Binocular Head Same Magnification Same View Field
--Manual 4 Steps Zoom Body 0.6x,1.0x, 1.0x, 1.6x, Parallel Light System
--Motorized Foot Switch Control Focusing Up/Down Or X/Y Moving
--Four Feet With Locking Wheels, Max Extended Length 1100mm
--Coaxial Illumination, Light Spot Dia.50mm, Max Brightness 80000 Lux
| Specification | A41.1941 | A41.1942 | |
| Main Usage | Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy | ||
| Head | Main Head Binocular, 45° Inclined, Interpupillary Distance 53~76mm | ||
| Assitant Head Binocular, 45° Inclined, Interpupillary Distance 53~76mm, 180° Oppsite To Main Head, Same Magnification Same View Field As Main Head |
|||
| Diopter | Both Left & Right Eyetube Diopter Adjustable ±6D | ||
| Eyepiece | WF12.5x | ||
| Zoom Body | Manual 4 Steps Zoom: 0.6x,1.0x, 1.0x, 1.6x, Parallel Light System | ||
| Objective | F=200mm | ||
| Total Magnification | 6x,10x,16x | ||
| View Field | Dia.34mm, Dia.20mm, Dia.13mm | ||
| Focusing | Motorized Focuing Controled By Foot Switch, Focusing Range +/-25mm, Focusing Speed 33s/Full Range |
||
| Foot Switch | 2 Directions Motorized Foot Switch, --Control Focusing Up/Down, Moving Range 50mm --Water Proof Design |
● | |
| 6 Directions X/Y/Z Motorized Foot Switch --Control Focusing Up/Down, Moving Range 50mm --Control Focusing X/Y Moving, Moving Range 60mm --Water Proof Design |
● | ||
| Stand | Four Feet With Locking Wheels, Max Extended Length 1100mm | ||
| Illumination | Coaxial Illumination, Light Spot Dia.50mm, Max Brightness 80000 Lux | ||
| Weight | 107Kgs | ● | |
| 115Kgs | ● | ||
| Optional Accessories | Cata. No, | ||
| Head | 3 People 3 Binocular Heads | A53.1941 | |
| Objective | F=175mm, 7x,12x,18x, View Field 30mm/18mm/11mm | A52.1941-175 | |
| F=250mm | A52.1941-250 | ||
| F=300mm | A52.1941-300 | ||
| F=350mm | A52.1941-350 | ||
| Zoom F=180~300mm | A52.1941-1830 | ||
| Adapter | Beamsplitter | A55.1941 | |
| C-Mount 0.3x For 1/3" Digital Camera | A55.1942 | ||
