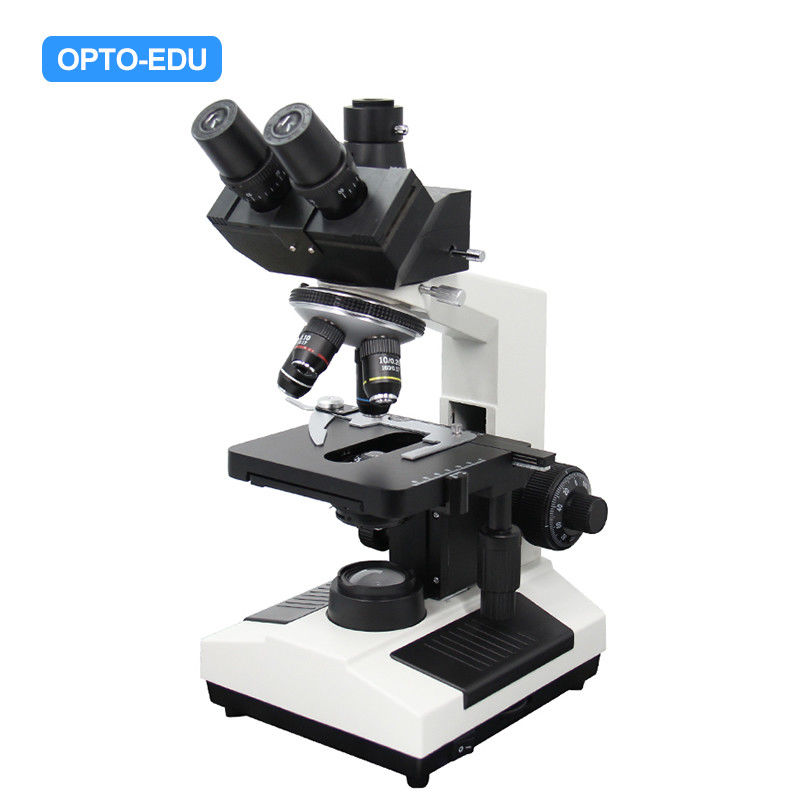

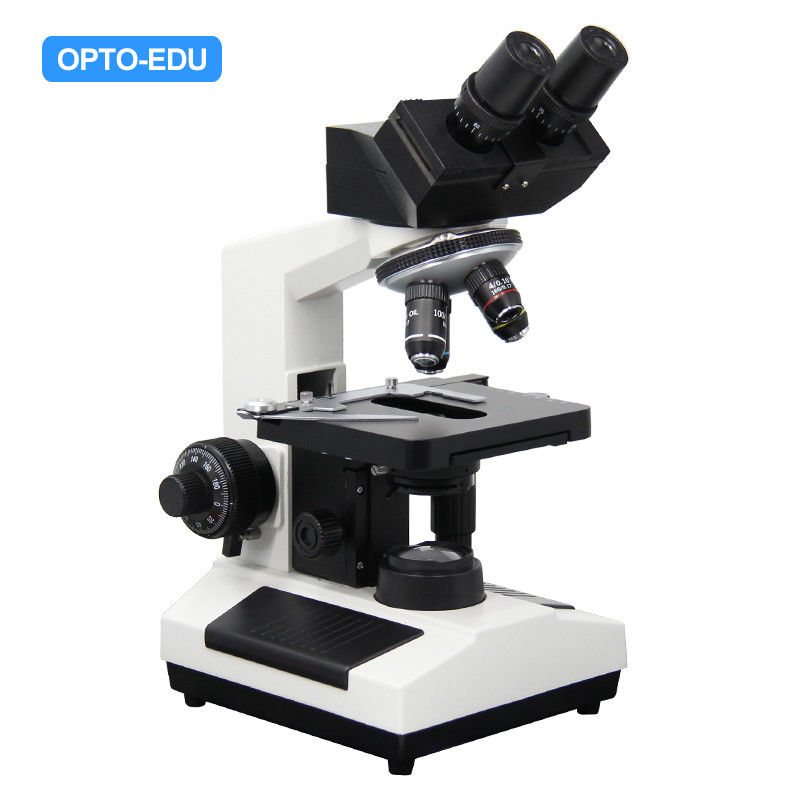

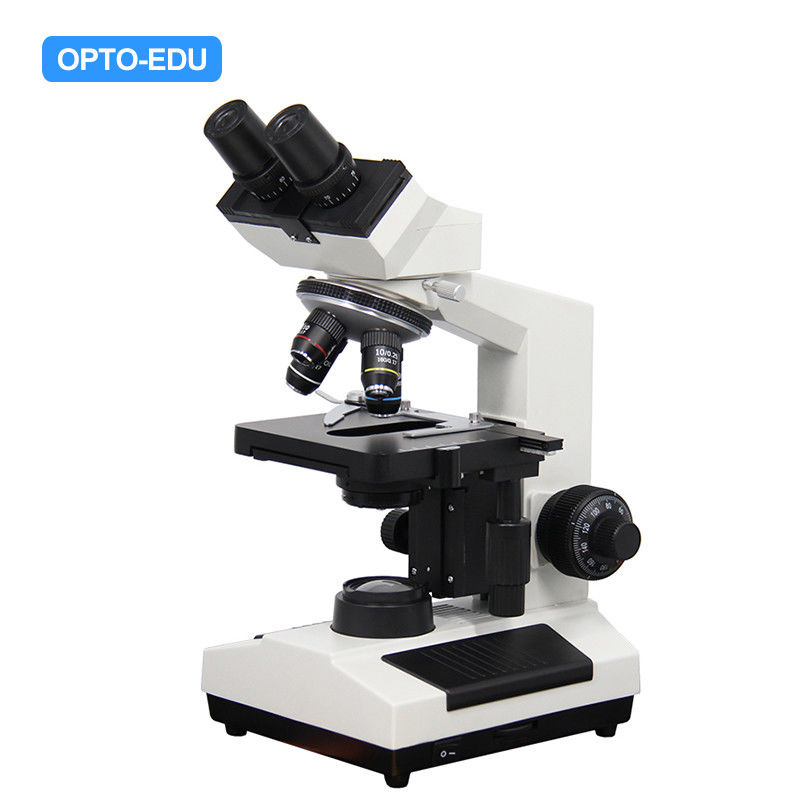

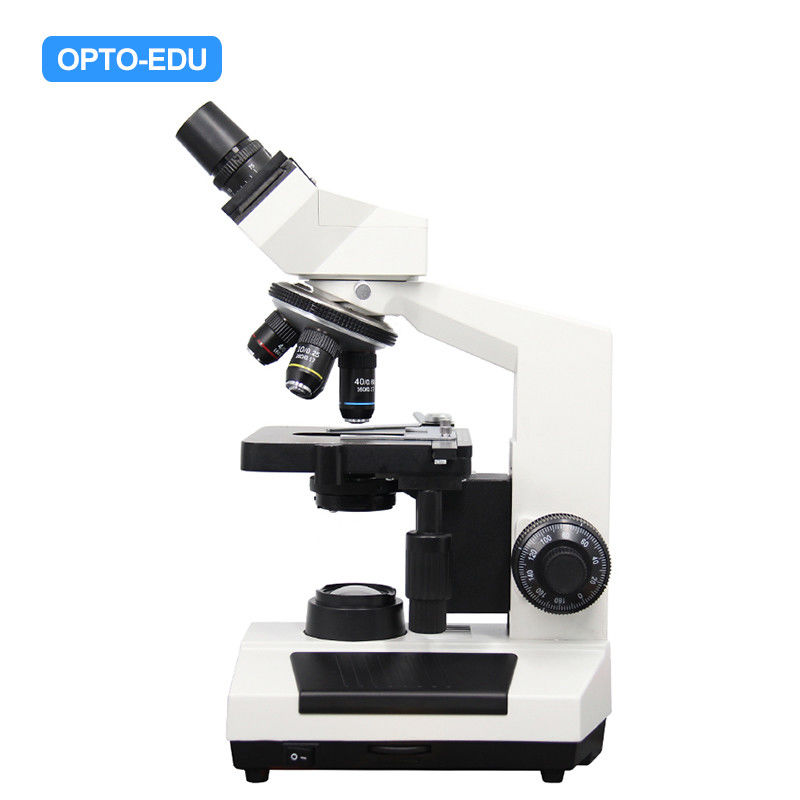

| A11.1007 The 107BN Series Microscope A11.1007 , the 107BN series microscope , is derived from the classic Olympus model and has been produced in China for more than 30 years . Its classic appearance and optical design , mature production technology , and complete upgrade options (BF, DF, PH, PL, FL) , as well as the extremely low price and stable quality brought by the large production quantity , make it still the most frequently selected model in the hospital level and laboratory entry level, which can be described as one of the most classic microscope model. Opto-Edu's A11.1007 is the best quality 107BN series microscope in market. Unlike most of "the cheapest " 107BN on the market, our products insist on using an full-metal body , an full-copper objective lens housing, and a full set of high-quality optical glass system to achieve the best optical imaging results. Due to the high cost-effectiveness of Opto-Edu's products, it won a bidding order for 10,000 units in Bangladesh in 2019, and there are no bad reviews after smooth delivery! |
| Quadruple Nosepiece With Achromatic Objectives --Achromatic Objectives : 4x, 10x, 40x(s), 100x(s). Standard Black Color. --40x And 100x Objective Lens Has A Spring Design, It Will Not Damage The Objective Lens And Sample. --The 100x Objective Lens Is An Oil Objective Lens. Cedar Oil Is Used As A Medium For Better Observation. |
| Working Stage --Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison. |
| Condenser --N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder. |
| Low Position Coaxial Coarse & Fine Ergonomic, Easier To Operate. --Fine Focusing Scale 0.002mm. --With Tension Adjustment, With Up Limit, Personalized Settings, You Can Adjust The Tension According To Individual Needs. |
| Built-in 3W LED Light (6V20W Halogen Lamp Optional) |
| A11.1007 Biological Microscope | 16 | 17 | 17T | 27 | 27T | 17W | 17WT | 27W | 27WT | |
| Magnification | 40x~1600x | |||||||||
| Head | Black Monocular Teaching Head, 45° Inclined, 360° Rotatable | ● | ||||||||
| Black Sliding Binocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| White Sliding Binocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| White Sliding Trinocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| Adapter | 1.0x C-Mount, Eyepiece Adapter | ● | ● | ● | ● | ● | ||||
| Eyepiece | Wide Field WF10x/18mm, WF16x/11mm | |||||||||
| Nosepiece | Quadruple Nosepiece | |||||||||
| Objective | Achromatic Objective | |||||||||
| 4x/0.1, W.D.=25mm | ||||||||||
| 10x/0.25, W.D.=11mm | ||||||||||
| 40x/0.6(S), W.D.=3.8mm | ||||||||||
| 100x/1.25(S,Oil), W.D.=0.1mm | ||||||||||
| Stage | Double Layer Mechanical Stage, 140x140mm, Moving Range 50x75mm, Double Slide Holder | |||||||||
| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, | |||||||||
| With Tension Adjustment, With Up Limit | ||||||||||
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder | |||||||||
| Filter | Blue, Yellow, Green | |||||||||
| Light Source | Built-in Illumination 3W LED, Brightness Adjustable | |||||||||
| Packing | Foam + Carton, 1 pc/carton, Packing Size: 33x28x43cm, G.W.6.5Kg, N.W 5.0Kg | |||||||||
| Foam + Wooden Case, 1 pc/case, Packing Size: 39x35x52cm, G.W.11.5Kg, N.W 5.0Kg | ||||||||||
| A33.1009=A11.1007-T+A59.3509 A59.3509: 5.0M, 9" LCD, 1/2.8" CMOS, Screen Resolution 1024*600, USB2.0 Real Time Image Output, TF Card, USB HDMI Mouse Control Menu For Measure |
| Can Be Upgraded to A59.3521 LCD Screen 10.5” LCD Touch Screen Android Pad, 8.0M, Measurement, Recording, Taking Photo And Entering The Album |
