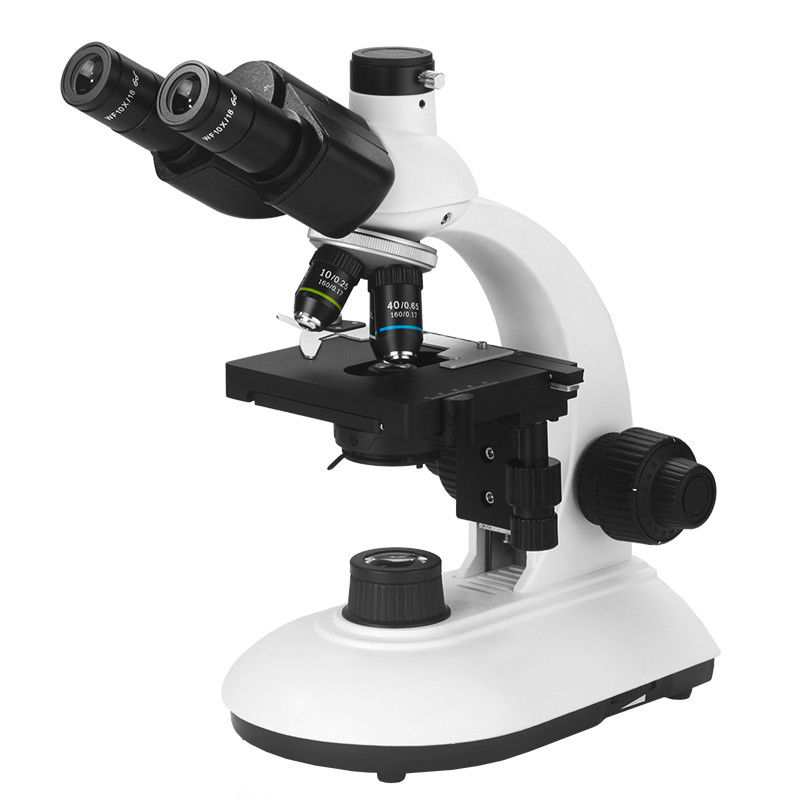

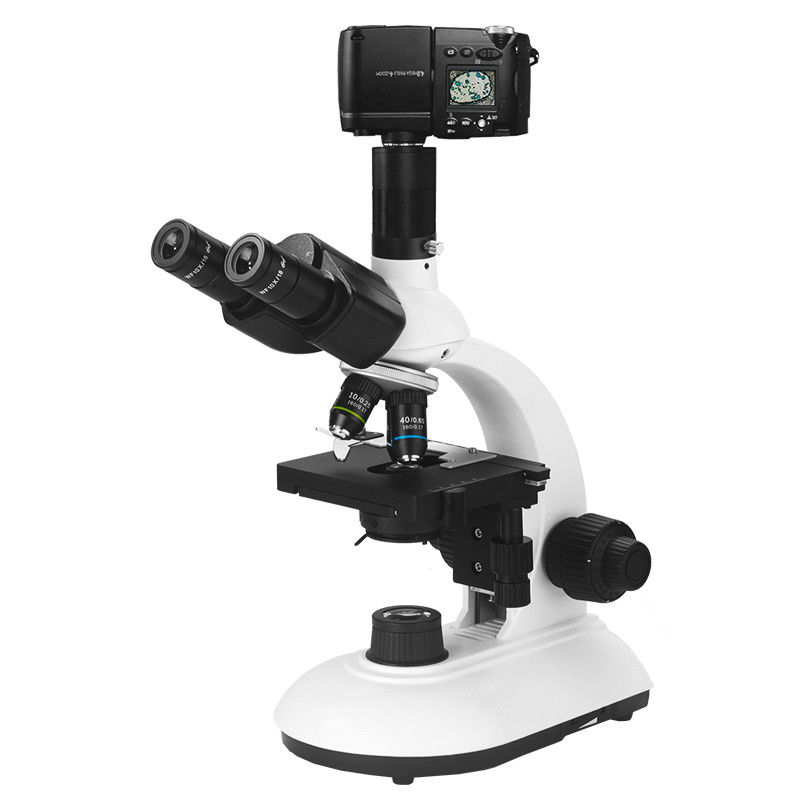

School OPTO-EDU A11.2601-TP Biological Microscope

School OPTO-EDU A11.2601-TP Biological Microscope

Products - Biological Microscope
  • High Light

    A11.2601-TP Biological Microscope

    ,

    Biological Microscope OPTO-EDU

    ,

    OPTO-EDU school Microscope

  • Certification
    CE|Rohs
  • Head
    Seidentopf Trinocular Head Inclined 30°
  • Applications
    Student|school
  • Drawtube
    Trinocular
  • Illumination
    Halogen Lamp|LED
  • Max Magnification
    1000X
  • Product Name
    Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Model Number
    A11.2601-TP
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

School OPTO-EDU A11.2601-TP Biological Microscope

  • School OPTO-EDU A11.2601-TP Biological Microscope
  • School OPTO-EDU A11.2601-TP Biological Microscope
Get Price Contact Now





* Mechanical Stage 115x125mm Moving Range 70x35mm
* Full Metal Body High Rigid Construction
* 3W LED, Cordless Rechargeable Function Optional

School OPTO-EDU A11.2601-TP Biological Microscope 0

School OPTO-EDU A11.2601-TP Biological Microscope 1

School OPTO-EDU A11.2601-TP Biological Microscope 2

School OPTO-EDU A11.2601-TP Biological Microscope 3

School OPTO-EDU A11.2601-TP Biological Microscope 4





Items A11.2601 Student Biological Microscope -M -B -T -BP -TP Cata. No.
Head Monocular Head Inclined 30°, Rotatable 360° ● 　 　 　 　 A53.2601-M
Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm 　 ● 　 ● 　 A53.2601-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80 　 　 ● 　 ● A53.2601-T
Eyepiece WF10x/18mm ● ●● ●● ●● ●● A51.2602-1018
WF16x/13mm ○ ○ ○ ○ ○ A51.2602-1613
WF10x/18mm With Pionter ○ ○ ○ ○ ○ A51.2604-1018
WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line ○ ○ ○ ○ ○ A51.2605-1018
WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable ○ ○ ○ ○ ○ A51.2605-1018D
Nosepiece Quadruple, Backward ● ● ● ● ● A54.2610-N03
Achromatic Objective 4x/0.1, W.D.=18.6mm ● ● ● 　 　 A52.2601-4
10x/0.25, W.D.=6.5mm ● ● ● 　 　 A52.2601-10
20x/0.40, W.D.=1.75mm ○ ○ ○ 　 　 A52.2601-20
40x/0.6(S), W.D.=0.47mm ● ● ● 　 　 A52.2601-40
60x/0.80(S), W.D.=0.10mm ○ ○ ○ 　 　 A52.2601-60
100x/1.25(S,O), W.D.=0.07mm ● ● ● 　 　 A52.2601-100
Plan 4x/0.1, W.D.=14.5mm 　 　 　 ● ● A52.2603-4
Objective 10x/0.25, W.D.=5.65mm 　 　 　 ● ● A52.2603-10
　 20x/0.40, W.D.=5.65mm 　 　 　 ○ ○ A52.2603-20
　 40x/0.6(S), W.D.=0.85mm 　 　 　 ● ● A52.2603-40
　 100x/1.25(S,O), W.D.=0.07mm 　 　 　 ● ● A52.2603-100
Stage Double Layer Mechanical Size 125×115mm, Travel Range 35×75mm ● ● ● ● ● A54.2601-S03
Condenser Abbe N.A. 1.25(Iris Diaphragm) ● ● ● ● ● A56.2614-09
Focusing Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm ● ● ● ● ● 　
C-mount 1.0x (Focus Adjustable) 　 　 ○ 　 ○ A55.2601-B10
0.5x (Focus Adjustable) 　 　 ○ 　 ○ A55.2601-B05
Light Source 3W LED Illumination Systems ● ● ● ● ● A56.2613-3W
3W LED Illumination Systems (Rechargeable) ○ ○ ○ ○ ○ A56.2651-3WR
12V 20W Halogen Lamp, Wide Voltage: 100V-240V ○ ○ ○ ○ ○ A56.2650-20W
Plano-Concave Mirror ○ ○ ○ ○ ○ A56.2601-B
Dark Field Dark Field Ring, For 4x~40x Objective ○ ○ ○ ○ ○ A5D.2611-B
Polarizing Analyzer + Polarizer Set ○ ○ ○ ○ ○ A5P.2601-B
Package Carton Size 337*242*417mm, 1 Unit/Ctn
Weight Gross Weight 7.0kgs, Net Weigth 5.5kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.
