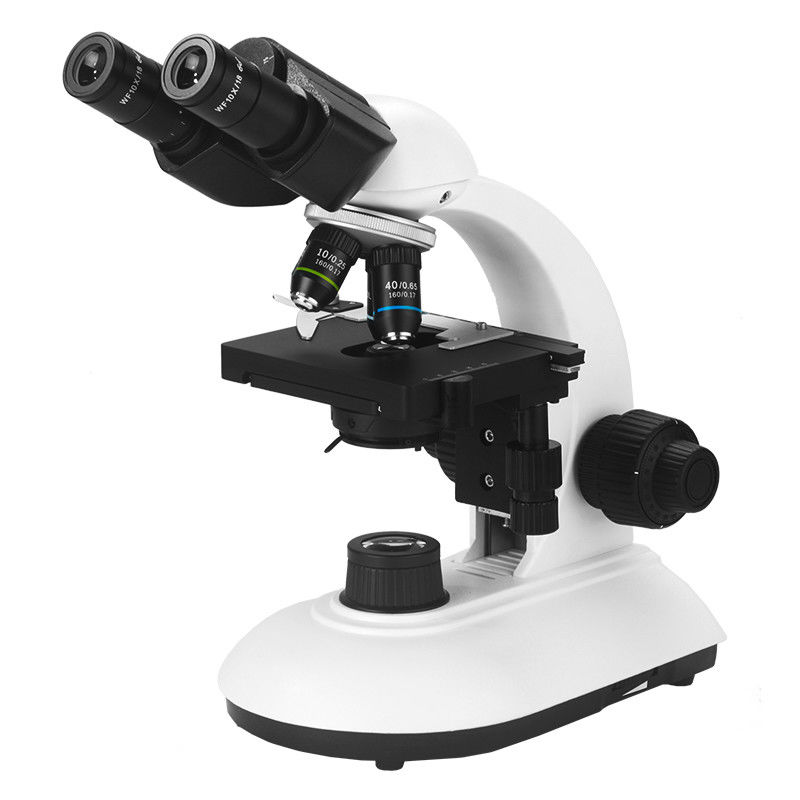

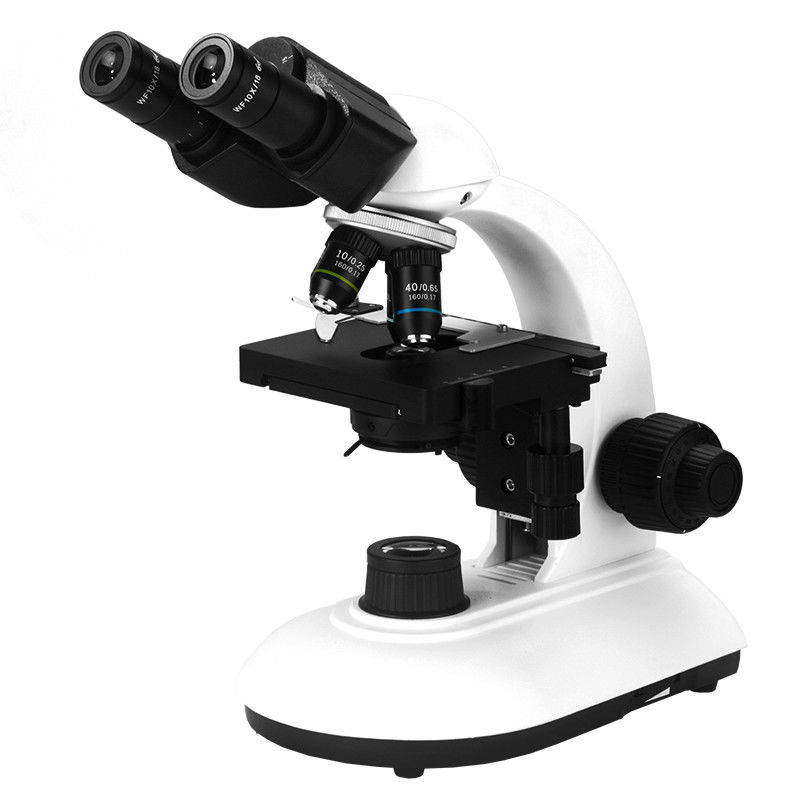

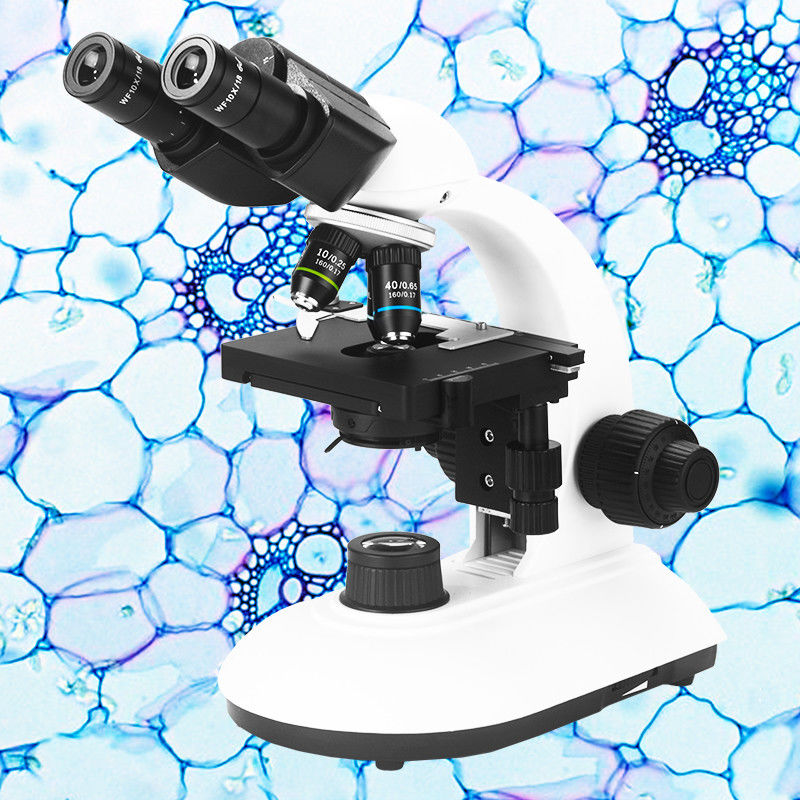

A11.2601 Biological Microscope is designed for teaching clincal verify. This series microscope with original style, steady structure, contvernient opteration and clear image, is suitable for observing various biological specimens. And mostly applied in school, college, hospital and family.
A11.2601 Biological Microscope is designed for teaching clincal verify. This series microscope with original style, steady structure, contvernient opteration and clear image, is suitable for observing various biological specimens. And mostly applied in school, college, hospital and family.
Items | A11.2601 Student Biological Microscope | -M | -B | -T | -BP | -TP | Cata. No. |
Head | Monocular Head Inclined 30°, Rotatable 360° | ● | A53.2601-M | ||||
Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm | ● | ● | A53.2601-B | ||||
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80 | ● | ● | A53.2601-T | ||||
Eyepiece | WF10x/18mm | ● | ●● | ●● | ●● | ●● | A51.2602-1018 |
WF16x/13mm | ○ | ○ | ○ | ○ | ○ | A51.2602-1613 | |
WF10x/18mm With Pionter | ○ | ○ | ○ | ○ | ○ | A51.2604-1018 | |
WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line | ○ | ○ | ○ | ○ | ○ | A51.2605-1018 | |
WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable | ○ | ○ | ○ | ○ | ○ | A51.2605-1018D | |
Nosepiece | Quadruple, Backward | ● | ● | ● | ● | ● | A54.2610-N03 |
Achromatic Objective | 4x/0.1, W.D.=18.6mm | ● | ● | ● | A52.2601-4 | ||
10x/0.25, W.D.=6.5mm | ● | ● | ● | A52.2601-10 | |||
20x/0.40, W.D.=1.75mm | ○ | ○ | ○ | A52.2601-20 | |||
40x/0.6(S), W.D.=0.47mm | ● | ● | ● | A52.2601-40 | |||
60x/0.80(S), W.D.=0.10mm | ○ | ○ | ○ | A52.2601-60 | |||
100x/1.25(S,O), W.D.=0.07mm | ● | ● | ● | A52.2601-100 | |||
Plan | 4x/0.1, W.D.=14.5mm | ● | ● | A52.2603-4 | |||
Objective | 10x/0.25, W.D.=5.65mm | ● | ● | A52.2603-10 | |||
20x/0.40, W.D.=5.65mm | ○ | ○ | A52.2603-20 | ||||
40x/0.6(S), W.D.=0.85mm | ● | ● | A52.2603-40 | ||||
100x/1.25(S,O), W.D.=0.07mm | ● | ● | A52.2603-100 | ||||
Stage | Double Layer Mechanical Size 125×115mm, Travel Range 35×75mm | ● | ● | ● | ● | ● | A54.2601-S03 |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● | ● | ● | A56.2614-09 |
Focusing | Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm | ● | ● | ● | ● | ● | |
C-mount | 1.0x (Focus Adjustable) | ○ | ○ | A55.2601-B10 | |||
0.5x (Focus Adjustable) | ○ | ○ | A55.2601-B05 | ||||
Light Source | 3W LED Illumination Systems | ● | ● | ● | ● | ● | A56.2613-3W |
3W LED Illumination Systems (Rechargeable) | ○ | ○ | ○ | ○ | ○ | A56.2651-3WR | |
12V 20W Halogen Lamp, Wide Voltage: 100V-240V | ○ | ○ | ○ | ○ | ○ | A56.2650-20W | |
Plano-Concave Mirror | ○ | ○ | ○ | ○ | ○ | A56.2601-B | |
Dark Field | Dark Field Ring, For 4x~40x Objective | ○ | ○ | ○ | ○ | ○ | A5D.2611-B |
Polarizing | Analyzer + Polarizer Set | ○ | ○ | ○ | ○ | ○ | A5P.2601-B |
Package | Carton Size 337*242*417mm, 1 Unit/Ctn | ||||||
Weight | Gross Weight 7.0kgs, Net Weigth 5.5kgs | ||||||
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories. |
