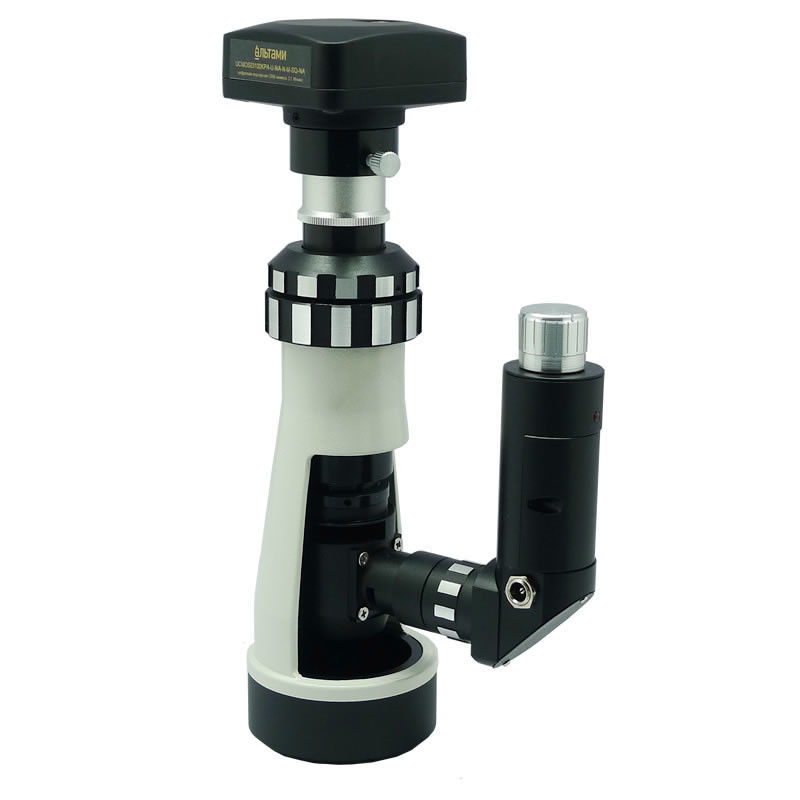

LED Digital Portable Metallurgical Optical Microscope A31.2501 3.1M 100 - 400x

LED Digital Portable Metallurgical Optical Microscope A31.2501 3.1M 100 - 400x

  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • Total Magnification
    100-400x
  • Mechanical Tube Length
    160mm
  • Head
    Monocular Vertical Head
  • Eyepiece
    WF10X
  • Focusing
    Coaxial Coarse & Fine Focus Knob, Focusing Range 36mm
  • Light Source
    LED Coaxial Illumination, Brightness Adjustable
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A31.2501
  • Minimum Order Quantity
    1 pc
  • Price
    Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

LED Digital Portable Metallurgical Optical Microscope A31.2501 3.1M 100 - 400x

100 - 500x Digital Portable Metallurgical Optical Microscope A31.2501

Small & Simple, with bright white LED light built-in, and high quality image!

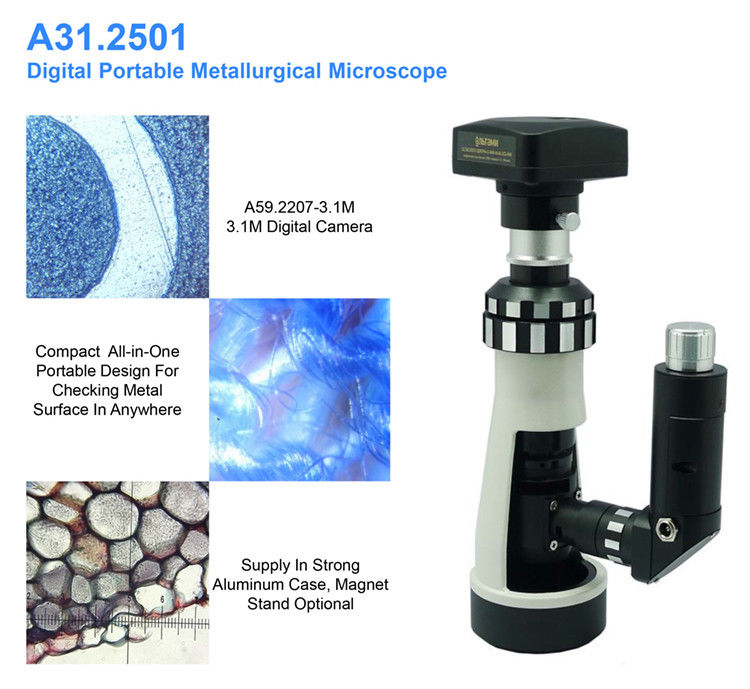

A31.2501-B Digital Portable Metallurgical Microscope
Total Magnification 100-400x
Mechanical Tube Length 160mm
Head Monocular Vertical Head
Eyepiece WF10X
LWD Plan Objective
(No Cover Glass)
PLL 10X/0.25 W.D. 7.3mm
PLL 40X/0.65 W.D. 0.5mm
Focusing Coaxial Coarse & Fine Focus Knob, Focusing Range 36mm
Light Source LED Coaxial Illumination, Brightness Adjustable, Powered By Rechargeable Batteries (Battery NOT Included For Air Shipment)
Packing Portable Aluminium Case
Digital Camera 3.1M/MT9T001(C)
1/2“ (6.55x4.92)
Max.Resolution 2048/*1536
Pixel Size 3.2 x 3.2μm
Responsivity 1.0 V/lux-sec
2048*1536/10fps
1024*768/22fps
680*510/43fps
Dynamic Range 61dB
SN Ration 43dB
Binning 1x1,2x2,3x3
Exposure 0.244~2000ms

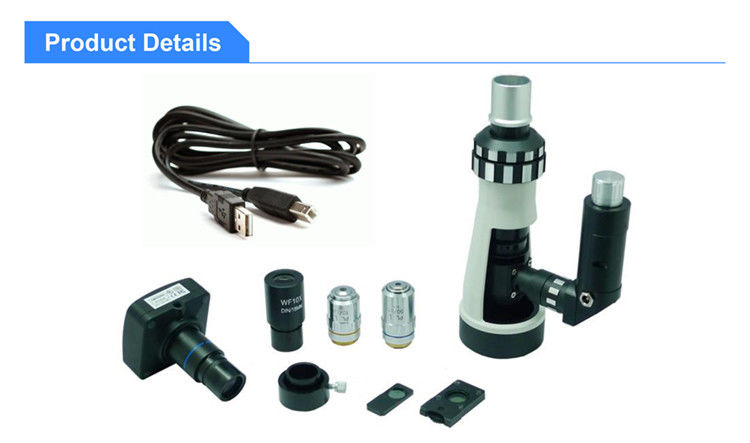

A31.2501-B Digital Portable Metallurgical Microscope Optional Accessories
Adapter Photo Adapter For SLR Digital Camera Canon Series A55.2622-C
Photo Adapter For SLR Digital Camera Nikon Series A55.2622-N
Polarizing Set Polarizer & Analysiser Slides A5P.2601
LWD Plan Objective
(No Cover Glass)
20x/0.40mm, WD8.6 A5M.0234-20
50x/0.70mm, WD2.20,Spring A5M.0234-50A
60x/0.75mm, WD1.34,Spring A5M.0234-60
80x/0.80mm, WD0.96,Spring A5M.0234-80A
100x/1.25mm, WD0.33, Spring,Oil A5M.0234-100
Magnet Stand Magnet Stand, X/Y Moving Range 10x10mm A54.2501
