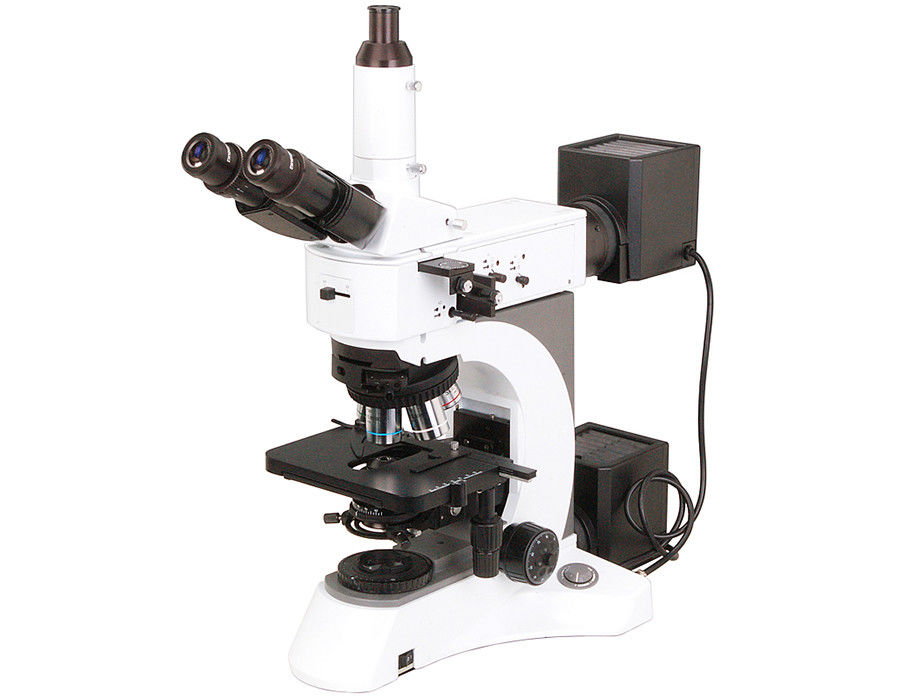

A13.1013 Infinity Metallurgical Optical Microscope For Industry Inspection

A13.1013 BF/DF DIC Metallurgical Microscope

A

B

Optical System

Infinity Optical System, Bright Field/Dark Field, DIC, Polarizing

Head

Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm

Eyepiece

Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm

Nosepiece

Backward Quintuple Nosepiece

Objective

Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF/DF),W.D.12mm

Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF),W.D.10mm

Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF),W.D.4.3mm

Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF/DF),W.D.0.32mm

Infinity Plan Achromatic Objectives100x/0.80/∞/0 (BF/DF),W.D.2mm

Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17,W.D.0.54mm

o

Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17,W.D.0.13mm

o

Focusing

Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment

Working Stage

Maximum Sample Height 30mm
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:
--Specimen Preparation Plate
--Slide Glass

o

Maximum Sample Height 50mm
Non-Porous Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:

o

Reflect Illumination

24V 100W Halogen Light, Brightness Adjustable
Kohler Illumination With Aspherical Condenser
Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer
Blue, Green, Yellow Filter, Gound Glass

Transmit Illumination

Swing-Out Condenser N.A.0.9/0.25
24V 100W Halogen Light With Aspherical Condenser
Blue Filter

o

A13.1013 BF/DF DIC Metallurgical Microscope

A

B

Objective

Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF),W.D.2.9mm

A5M.1036-40

DIC

20x, 100x DIC Slide

A5M.1040

Polarizing

Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer |
For Reflect Illumination

A5P.1002

Filter

Netural Filter ND25

A5F.1011-25

Netural Filter ND6

A5F.1011-6

Adaptor

Photo Adapter, For Nikon or Canon SLR Camera

A55.1001

C-Mount 1.0x

A55.1002-10

C-Mount 0.5x

A55.1002-05

Other

Specimen Presser

A5M.1010
